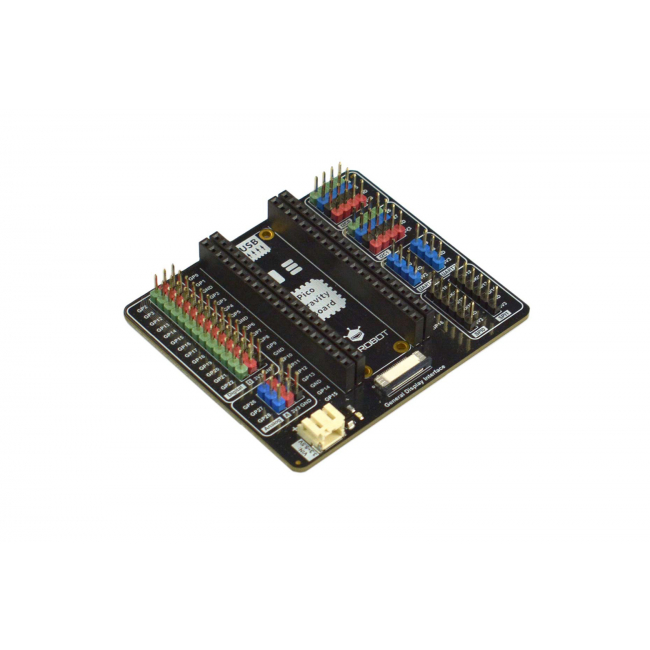

DFRobot - Gravity: Expansion Board for Raspberry Pi Pico / Pico 2

This Gravity Expansion Board, specifically designed for Raspberry Pi Pico and Raspberry Pi Pico 2, is compatible with a variety of Gravity sensors and modules.

With all pins led out, you can directly use it without soldering. Additionally, the board offers various communication ports including, 2 x I2C, 2 x UART, 2 x SPI, 3 x analog IOs and 13 x digital IOs as well as a 3.3~5.5V power connector and GDI port, which provides you with an easier way to prototype.

Gravity Expansion Board for Pico

All pins brought out, no soldering required

Additional Communication Ports: Digital IO, Analog IO, I2C, SPI, UART, GDI

Note: The product not include Raspberry Pi Pico and Pico 2.

• No need to weld, plug-and-play
• Support all kinds of Gravity sensors and modules
• Comes with 3.3~5.5 V PH2.0 power interface, applicable to mobile projects
• Onboard GDI port, compatible with DFRobot - GDI series display

• All pins brought out onto female pin headers
• Digital IO x 13: GP2, GP3, GP12-22
• Analog IO x 3: GP26-GP28
• UART x 2
• I2C x 2
• SPI x 2
• PH2.0 Power Connector: 3.3 V - 5.5 V
• Display Screen Interface: GDI
• Dimension: 73.00x63.00 mm/28.74x24.8 inch

• Gravity: Expansion Board for Raspberry Pi Pico x 1
