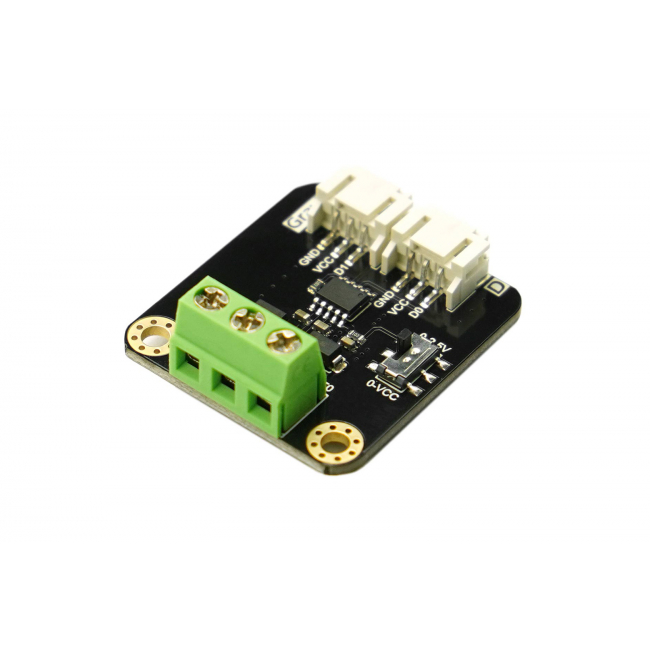

DFRobot - Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module

This is a 2-channel analog voltage output DAC module with PWM communication, 8-bit resolution, and 0.5% precision. It is well-suited for control projects operating within the 3.3V range, such as ESP32, Raspberry Pi, STM32, and other microcontrollers that require analog signal output.

PWM signal drive allows the module to be controlled by MCU digital ports, providing a simple and convenient usage. The design with two channels also enables effective cost reduction for the project.

DAC series modules are a range of products that can be controlled through I2C or PWM signals to generate voltage or current output signals. This series of DAC products not only offers a variety of output signal ranges, but also provides three selectable resolutions: 8-bit, 12-bit, and 15-bit. It allows for the choice of either single-channel or dual-channel configurations, and multiple modules can be cascaded to form a multi-channel output.

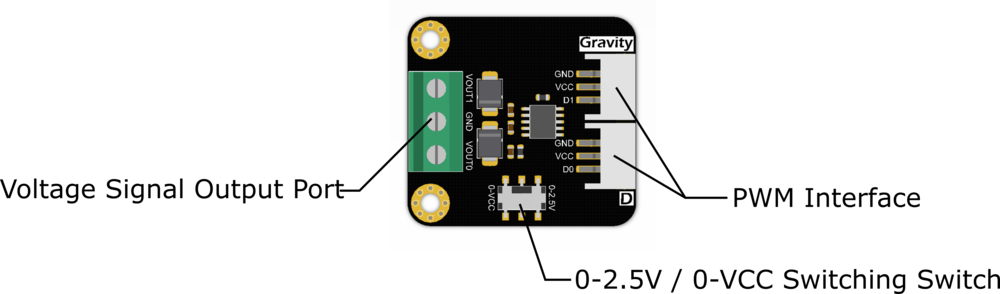

Functional Diagram of Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module

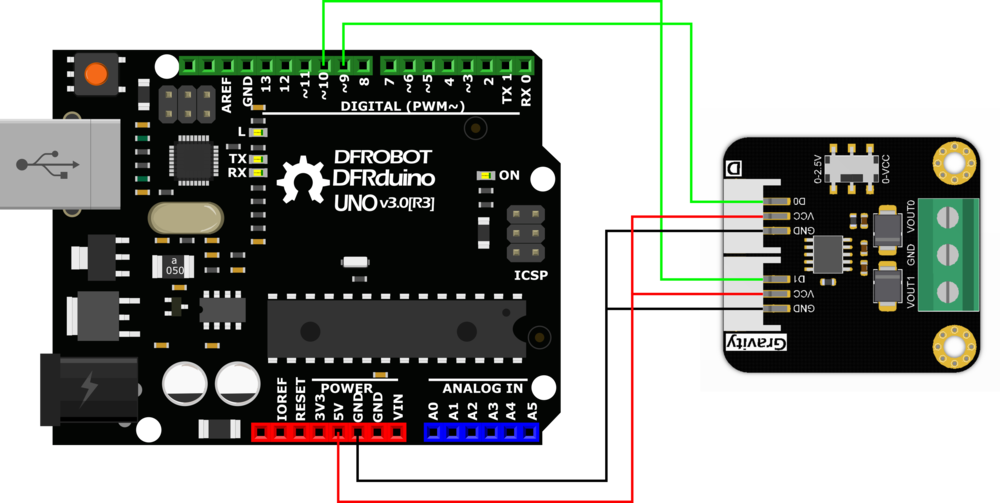

Wiring Diagram of Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module and Arduino UNO

We provide various models of DAC modules. If you need a different model, please check the selection guide:

Selection Guide of DAC Modules

Selection Guide

Product Name

Gravity: I2C 12-Bit DAC Module

Gravity: 2-Channel I2C DAC Module (0-10V)

Gravity: I2C 4-20mA DAC Module (Arduino Compatible)

Gravity: GP8211 I2C 15-bit DAC Module (0-5V/10V)

Gravity: GP8101S 1-Channel PWM to 0-5V/10V DAC Module

Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module

Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module

Gravity: GP8512: 1-Channel 15bit I2C to 0-2.5V/VCC DAC Module

Gravity: GP8630N I2C/PWM to ±10V / 4-20mA DAC Module (16-bit)

Gravity: GP8503 2-Channel 12bit I2C to 0-2.5V/VCC DAC Module

Gravity: GP8600 1-Channel I2C & PWM to 0-5V / 0-10V / 4-20mA DAC Module (16-bit)

Figure

SKU

DFR0552

DFR0971

DFR0972

DFR1071

DFR1036

DFR1037

DFR1073

DFR1035

DFR1230

DFR1034

DFR1229

Description

I2C 12-Bit DAC

2-Ch 0-10V DAC

4-20mA Current DAC

1-Ch 15-Bit (0-10V)

1-Ch PWM (0-10V)

2-Ch PWM (0-2.5V)

2-Ch 15-Bit (0-10V)

1-Ch 15-Bit (0-2.5V)

Hi-Res ±10V / 4-20mA

2-Ch 12-Bit (0-2.5V)

Hi-Res 0-10V / 4-20mA

Comm.

I2C

I2C

I2C

I2C

PWM

PWM

I2C

I2C

I2C/PWM

I2C

I2C/PWM

Res.

12-bit

12-bit

12-bit

15-bit

8-bit

8-bit

15-bit

15-bit

16-bit

12-bit

16-bit

Channels

1

2

1

1

1

2

2

1

1

2

1

Output Range

0~VCC

0-10V / 0-5V

4-20mA (0-25mA)

0-10V / 0-5V

0-10V / 0-5V

0-2.5V / 0-VCC

0-10V / 0-5V

0-2.5V / 0-VCC

±10V, 0-10V, 4-20mA

0-2.5V / 0-VCC

0-10V, 0-10V, 4-20mA

Chip

MCP4725

GP8403

GP8302

GP8211S

GP8101S

GP8501

GP8413

GP8512

GP8630N

GP8503

GP8600

Key Features

Classic model, with EEPROM, cost-effective

Dual-channel industrial voltage, cascade up to 16 devices

Industrial current loop, requires 18-24V power

High precision (0.01%), single channel

PWM driven, easy to use, industrial voltage

PWM driven, dual channel, low voltage control

High precision, dual channel, industrial voltage

High precision, single channel, low voltage control

Flagship, supports bipolar (negative voltage) output

Medium precision, dual channel, low voltage control

16-bit ultra-high precision, multi-function all-in-one

Add to Cart

• Support 3.3-V-5V power supply.
• Output voltage error is less than 0.5%.
• Output voltage linearity error is 0.1%.
• Two channels of voltage output, either 0-2.5V or 0-VCC, enabling connection and control of standard analog voltage devices.
• Gravity interface, PWM communication, Arduino control, suitable for program automation control.
• PWM signals can be utilized to drive the module, enabling it to be controlled simply by the digital port of the MCU.

• Motor speed control 
• Sound volume control 
• Indoor and outdoor lighting brightness adjustment 
• Display screen backlight automatic adjustment

• Operating voltage: 3.3V to 5V
• Communication Method: PWM
• Chip Type: GP8501
• Resolution: 8-bit
• Output Voltage: 0-2.5V or 0-VCC
• Number of channels: 2 channels
• Value Range: 0 - 255 corresponding to 0-2.5V or 0-VCC
• Output voltage: 0.5%
• Output voltage linearity error: 0.1%

• GP8501: 2-Channel PWM to 0-2.5V/VCC DAC Module ×1
• Gravity-3Pin Analog Sensor Cable ×1
