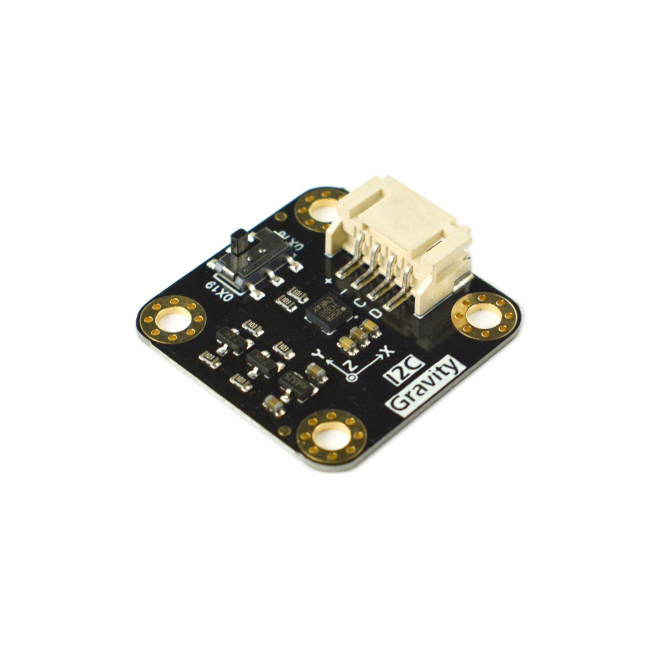

DFRobot - Gravity: I2C H3LIS200DL Triple Axis Accelerometer (±100g/±200g)

The H3LIS200DL is a high-performance triple-axis linear accelerometer with an ultra-low power consumption of 10uA. It offers user-selectable scales of ±100g/±200g and is capable of measuring accelerations with output data rates from 0.5Hz to 1KHz.

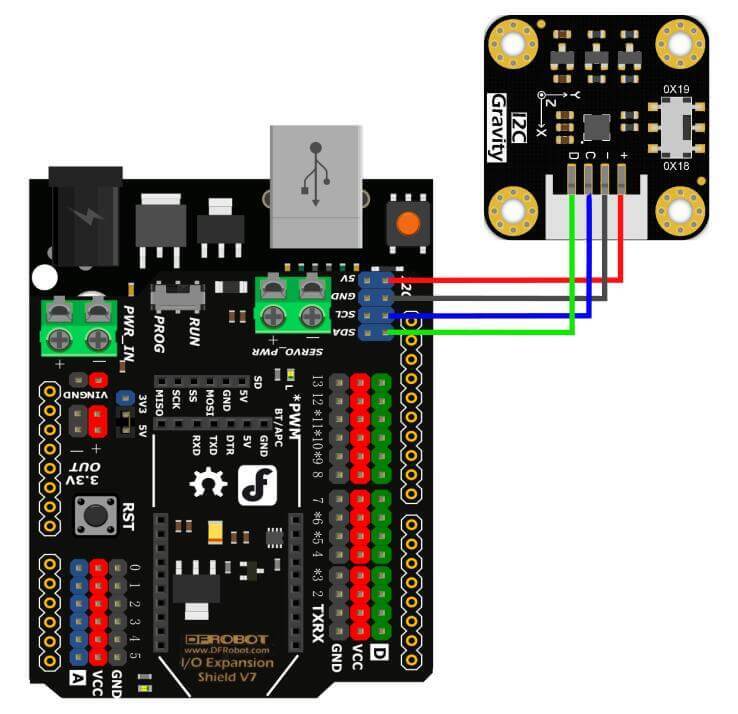

Connection Diagram

• Selectable scales: ±100g/±200g
• Change I2C address by the toggle switch
• Easy-to-use Gravity interface, no need to solder

• Shock detection and record
• Free-fall detection
• Vehicle crash test

• Operating Voltage: 3.3V~5V
• Operating Current: 10uA(low power mode)/0.3mA-0.4mA(Normal mode)
• Interface: Gravity-I2C
• I2C Address: 0x19 (Default)/0x18 (Optional)
• Selectable Scale: ±100g/±200g
• Frequency: 0.5Hz~1KHz
• 8-bit Data Output
• Operating Temperature: -40℃~+85℃
• 10000g High Shock Survivability
• ECOPACK, RoHS and “Green” compliant
• Module Size: 27*27mm/1.06*1.06”
• Mounting Hole Size: inner diameter 3mm/outer diameter 6mm

• Gravity: I2C H3LIS200DL Triple Axis Accelerometer x1
• Gravity-4P I2C/UART Sensor Connector x1
