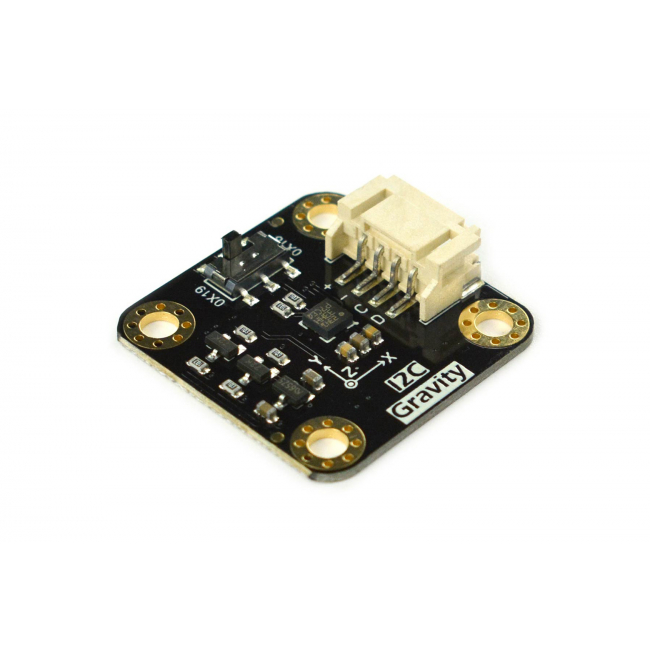

DFRobot - Gravity: I2C LIS331HH Triple Axis Accelerometer (±6g/±12g/±24g)
£14.05
£11.71
- Selectable scales: ±6g/±12g/±24g
- 16-bit data output
- Change I2C address by the toggle switch
- Easy-to-use Gravity interface, no need to solder
SKU
DF-SEN0411
Introduction
The LIS331HH is a high-performance 3-axis linear accelerometer with an ultra-low power consumption of 10uA. It offers user-selectable scales of ±6g/±12g/±24g and is capable of measuring accelerations with output data rates from 0.5Hz to 1KHz. The sensor is applicable to fields like navigation, smart agriculture, robotics, VR/AR, etc.

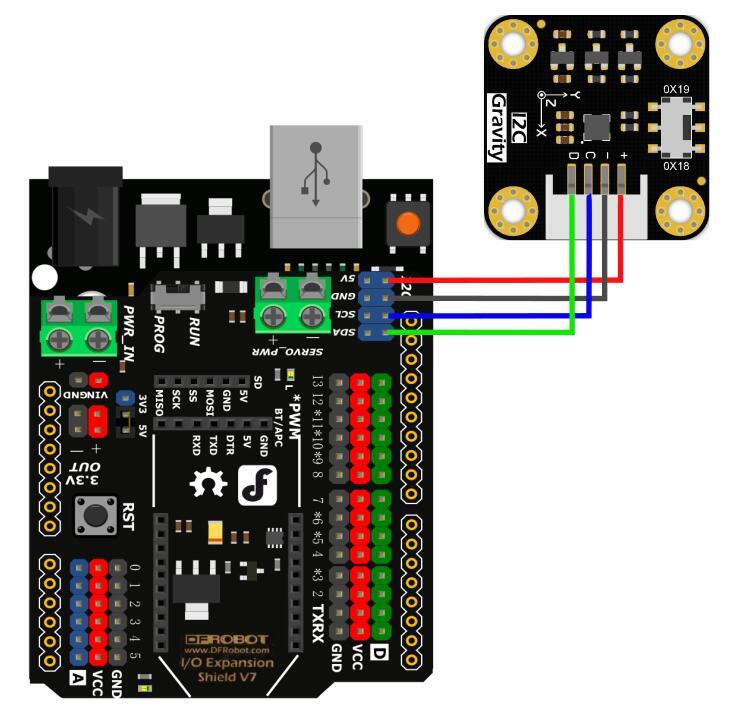

Connection Diagram
Features
- Selectable scales: ±6g/±12g/±24g
- 16-bit data output
- Change I2C address by the toggle switch
- Easy-to-use Gravity interface, no need to solder
Applications
- Free-fall detection
- Motion-activated functions
- Gaming and virtual reality input devices
Specification
- Operating Voltage: 3.3V~5V
- Operating Current: 10uA(low power mode)/0.3mA(Normal mode)
- Interface: Gravity-I2C
- I2C Address: 0x19 (Default)/0x18 (Optional)
- Selectable Scale: ±6g/±12g/±24g
- Frequency: 0.5Hz~1KHz
- 16-bit Data Output
- Operating Temperature: -40℃~+85℃
- 10000g High Shock Survivability
- ECOPACK, RoHS and “Green” compliant
- Module Size: 27*27mm/1.06*1.06”
- Mounting Hole Size: inner diameter 3mm/outer diameter 6mm
Shipping List
- Gravity: I2C LIS331HH Triple Axis Accelerometer x1
- Gravity-4P I2C/UART Sensor Connector x1
Documents
| Manufacturer | DFRobot |
|---|
