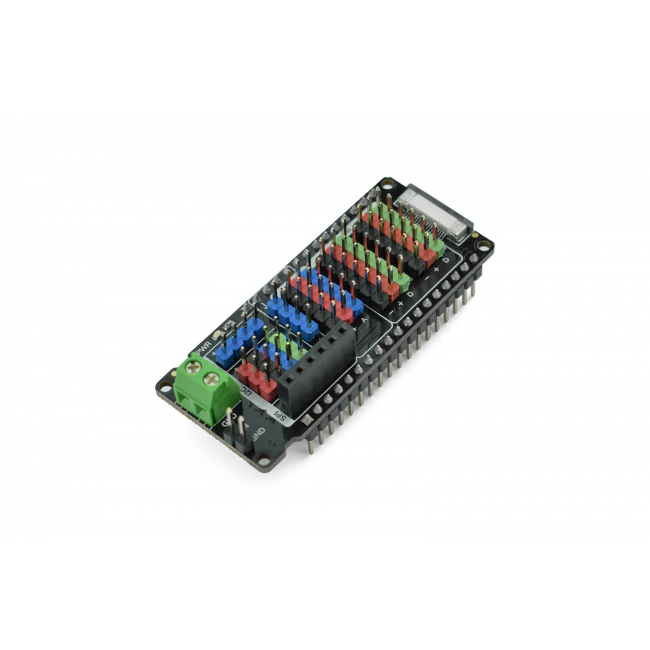

DFRobot - Gravity: IO Shield for FireBeetle 2 (ESP32-E/M0)

A variety of Gravity sensors and modules compatible

Plug-and-play, no soldering required

Specially designed for FireBeetle 2 series (M0, ESP32-E), this Gravity IO expansion shield offers various ports including digital, analog, I2C, UART, SPI, etc. Also, it comes with power input socket for connecting external power supply as well as EN pin for cutting off the power supply to main-board.

The Gravity IO shield allows a convenient connection between DFRobot Gravity sensors and FireBeetle 2 series, no soldering required.

Note: This expansion board is specifically designed for FireBeetle 2 controllers series:M0, ESP32-E, not suitable for the original FireBeetle Series.

• All pins brought out, no soldering required
• Supports various Gravity Sensors and Modules
• 3.3~5.5V PH2.0 power port, applicable to portable projects
• GDI interface for connecting DFRobot GDI series

• Allows a convenient connection between DFRobot Gravity sensors and FireBeetle 2 series

• All pins brought out onto female headers
• Digital IO x12: GP0-3, GP5-7, GP9-13
• Analog IO x5: A0-A4
• UART x 1
• I2C x 3 (In Parallel)
• SPI x 1
• PH2.0 Power Port: 3.3V~5.5V
• Screen: GDI
• Dimension: 60 x 25.4mm/2.36 x1”

• Gravity: IO Shield for FireBeetle M0 and ESP32-E x1
