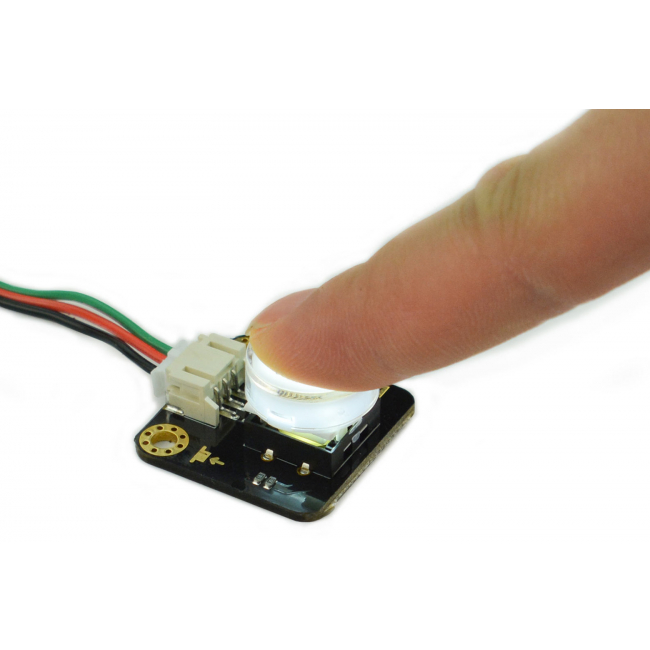

DFRobot - Gravity: LED Button for Arduino / micro:bit (White)

This is a simple LED-illuminated switch button with a transparent cap. It’s just like a basic switch button, but it lights up color (red/ yellow/ green/ blue/ white) when pressed down, which gives you visual feedback. These little buttons can be used with micro:bit to realize various fun interactive projects!

Note: When pressed down, the module outputs High, and the LED lights up. When released, the module outputs Low and the LED turns off.

• Internal LED turns On when the button is pressed down.

• Operating Voltage: +3.3-5V (3.3V is recommended)
• Output: digital
• Connector: PH2.0-3P
• Dimension: 27×26.5mm/1.06×1.04”
• Colors Available: red, yellow, green, blue, white

• Gravity: LED Button - White x1
• Digital Sensor Connector x1
