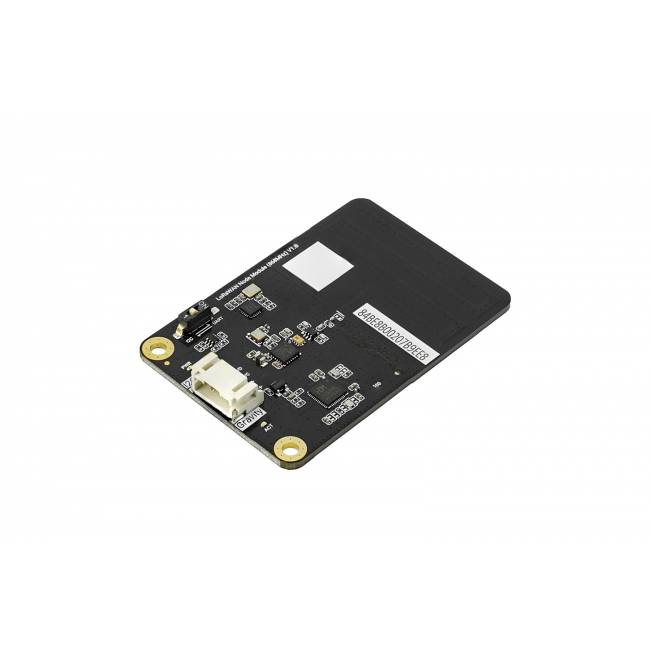

DFRobot - Gravity: LoRaWAN Node Module (EU868) – SX1262-Based, 4km Range for IoT & Agriculture

The Gravity: LoRaWAN Node Module (EU868) is a high-performance, easy-to-deploy wireless communication module designed for long-distance, low-power data transmission in outdoor IoT scenarios. Based on the SX1262 RF chip and LoRa modulation technology, this module operates in the EU868 frequency band (suitable for Europe and other regions adopting this band) and supports both LoRa point-to-point (P2P) and LoRaWAN networking protocols. It delivers effective communication distances of up to 1.2 kilometers in urban areas and 4 kilometers in open spaces, making it ideal for sensor node applications in agriculture, environmental monitoring, and smart outdoor systems.

Dual Communication Modes: LoRa & LoRaWAN

The module supports flexible switching between LoRa P2P and LoRaWAN protocols.

• In LoRa mode, it enables direct one-to-one, one-to-many, many-to-one, and bridge communications.
• In LoRaWAN mode, it supports both Class A and Class C operation, and can be integrated into networks like The Things Network (TTN) and ChirpStack via ABP or OTAA activation methods.

Reliable Long-Range Transmission

Equipped with an onboard PCB antenna and LoRa technology, the module provides

• 1.2 km effective range in urban environments
• 4 km effective range in open areas: The module ensures stable and reliable communication across large outdoor areas, overcoming limitations of WiFi or 4G in power consumption and range.

Low Power Consumption, Ideal for Battery-Powered Nodes

LoRa modulation technology allows for ultra-low power operation, significantly extending the battery life of remote sensor nodes compared to WiFi or cellular-based solutions, making it suitable for long-term deployment in power-constrained environments.

Plug-and-Play with Wide Compatibility

No low-level protocol development is required. The module integrates a complete LoRa/LoRaWAN protocol stack and supports Arduino IDE, Mind+, and MakeCode graphical programming environments.

• Compatible with micro:bit, Arduino, ESP32, and other 3.3V/5V development boards.
• Standard I2C and UART interfaces simplify hardware integration.

DFRobot LoRaWAN Series

DFRobot LoRaWAN product series is centered on "simplified development and efficient deployment", covering scenarios such as learning, development, testing, and deployment, and providing developers with comprehensive low-power wide-area network (LPWAN) solutions.

• Gateway: Embedded local MQTT server (SIoT) eliminates the need for server setup; supports Node-RED graphical programming for rapid automation task construction.
• Control Terminal: Multi-interface design (analog/digital input, RS485, relays) enables both data acquisition and device control; supports custom control rules and stable offline operation without network connectivity.
• Development Board: Compatible with the Arduino ecosystem, providing pre-built libraries and sample code for a low-threshold getting started; integrated with a screen, buttons, and other peripherals for real-time debugging without external devices.
• Node Module: Built-in LoRa/LoRaWAN protocol stack, supporting multi-platform graphical programming; features standard I2C/UART interfaces, compatible with mainstream controllers such as Micro:bit, Arduino, and ESP32

Video:

• Agricultural monitoring: crop growth, soil condition, greenhouse temperature and humidity
• Environmental data collection: weather stations, ecological zones, forest monitoring
• Smart gardening: irrigation control, plant health tracking
• Educational projects involving outdoor wireless networks and IoT prototyping

General

• Parameter: Value
• Supply Voltage: 3.3V – 5V DC
• Interface Type: PH2.0-4P (Power + Communication)
• Communication Interface: I²C / UART
• Logic Level Compatibility: 3.3V / 5V
• Mounting Hole Diameter: 3.0 mm
• Mounting Hole Spacing: 35 mm
• Dimensions: 42 mm × 62 mm
• Net Weight: 10 g

LoRa Wireless

• Parameter: Value
• RF Chip Semtech: SX1262
• Operating Frequency: 868 MHz (EU868 Band, compliant with European and regional regulations)
• Modulation Type: LoRa (Long Range)
• Bandwidth: 125 kHz
• Max Transmit Power: +16 dBm
• Receiver Sensitivity: –137 dBm (SF12 / BW125 kHz)

• Gravity: LoRaWAN Node Module (868MHz) ×1
• PH2.0-4P connection cable ×1
