DFRobot - Incremental Photoelectric Rotary Encoder - 400P/R

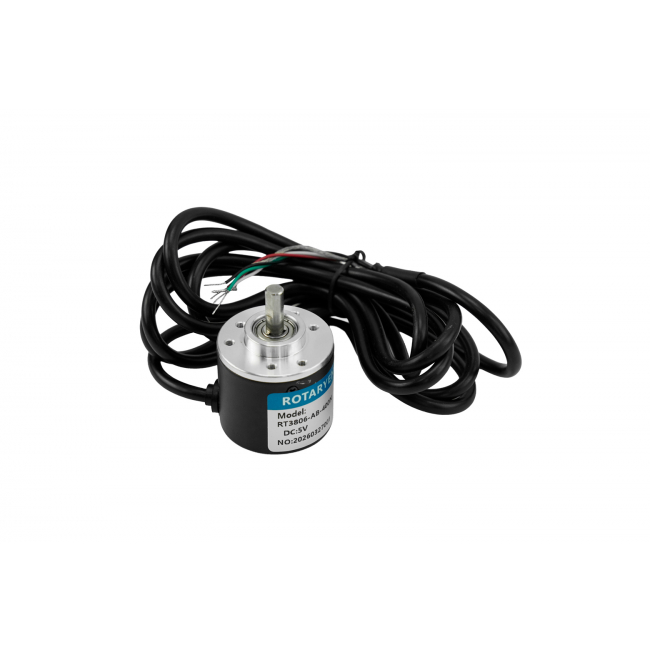

This is an industrial incremental photoelectric rotary encoder with aluminum material, metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signal though the rotation of the grating disk and optocoupler. 400 pulses/round for each phase, and 1600 pulses/round for dual-phase 4 times output. This rotary encoder supports max 5000 r/min speed. And it can be used for speed, angle, angular velocity and other data measurement.

The photoelectric rotary encoder has a NPN open collector output. It could work with Microcontroller with internal pull-up resistors directly.
Note: NPN open collector output needs pull-up resistors for the oscilloscope display.
