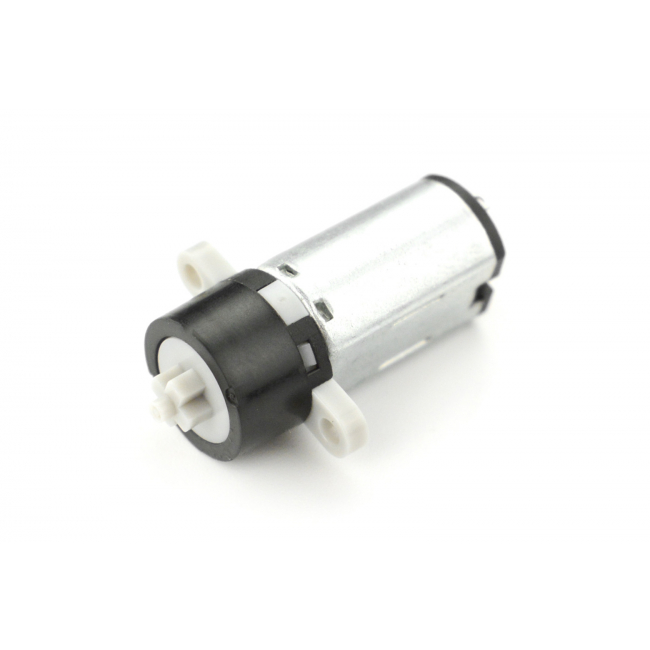

DFRobot - Micro DC Geared Motor 6V 112RPM
£4.44
£3.70
SKU
DF-FIT0419
Introduction
This is a new micro DC geared motor, using planetary gear mechanism, applicable to the various types of DIY project. Especially the project which has a certain requirements for size. It will be a good partner for you.
Side View Drawing:
Head Drawing:
Tail Drawing:
Specification
- Rated voltage: 6V
- Gear ratio: 1∶171
- No-load current: ≤ 45mA
- Starting torque: 550g·cm（MIN）
- Output shaft length: 3±0.5mm
- Insulation resistance: 100V/DC/ 1.0MΩ
- No-load speed: 110±11RPM
- Waveform: Sinusoidal waveform
- Noise：＜60db（Ambient noise 30db）
- Direction：CW
Shipping List
- Micro DC Geared Motor x1
| Manufacturer | DFRobot |
|---|
