DFRobot - micro: Maqueen Lite (with micro:bit V2 / micro:Gamepad)

Remind: 1. This is a set of multiple product combinations, each product with independent packaging and delivery.

2. Batteries are not included.

3. The micro:bit board in this kit is micro:bit v2.

Here comes Maqueen – micro:bit educational programming robot platform Maqueen is an easy-to-use micro:bit programming robot for STEAM education, which inherits the playability and simple operation of micro:bit. With a mini body, play-and-play, it allows students to quickly learn graphical programming in an entertaining way while nurturing their interests in science and logical thinking.

Maqueen is accessible to Mind+ Programming platform now. Mind+ is a graphical programming platform from DFRobot, supporting python, Arduino and other programming platforms. At present, Mind+ has been applied to all kinds of sensors, modules and related educational products.

Certificate of ROB0148

Click here to get more playing video of Micro: Maqueen

If you need the micro: Maqueen Lite Skin Pack, please click the following links.

Blue Skin Pack

Green Skin Pack

White Skin Pack

Red Skin Pack

We also offer the kit including micro: Maqueen Lite and skin pack, please click here.

(Note: The skin pack is compatible with micro: Maqueen Lite. Not compatible with micro: Maqueen Plus.)

• Support for Makecode, will support Scratch and python later.
• Small size, flexible movement.
• All-metal miniature gear motor, good quality, strong driving force.
• Line patrol, ambient light, LED lights, ultrasonic interface, buzzer, I2C interface, mechanical expansion screw hole, etc. ... full-featured, highly expandable.
• Exclusive customized POM bearing wheel, flexible and reliable, strong obstacle crossing ability.
• Easy to install, easy to use.

• Supply Voltage: 3.5V~5V DC ( Three AAA batteries or 3.6V~3.7V lithium battery )
• Infrared Grayscale Sensor(High-low level) x 2
• Buzzer x 1
• Infrared Receiver (NEC decoder) x 1
• LED Lights (High-low level control) x 2
• RGB Ambient Light (16 million colors) x 4
• SR04, SR04P Ultrasonic Interface(5V) x 1
• I2C Interface (5V) x 1
• Gravity Extension Interfaces (P0, P1, P2) x 3
• N20 All-metal Gear Motor x 2
• Motor Drive Mode: PWM motor drive
• Bracket and Protective Cover Extension M3 Screw Hole x 6
• Programming Method: Makecode graphical programming, Mind+ graphical programming
• Dimension: 81mm x 85 mm x 44mm/3.19 x 3.35 x 1.73in
• Weight: 75.55g

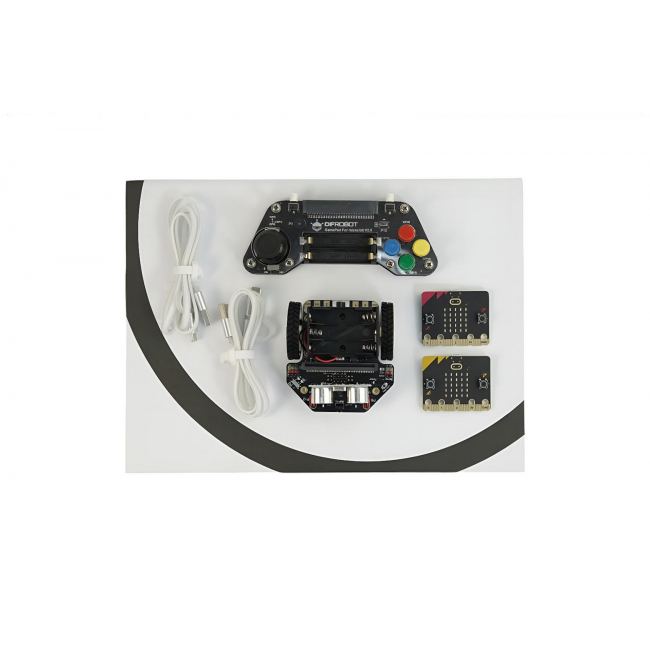

• micro:Maqueen micro:bit Educational Programming Robot Platform *1
• micro:bit V2 *2 (random color)
• Type-C & Micro 2-in-1 USB Cable *2
• micro: Gamepad - a Wireless Gamepad Based on micro:bit *1
• micro: Maqueen Line-tracking Map *1
