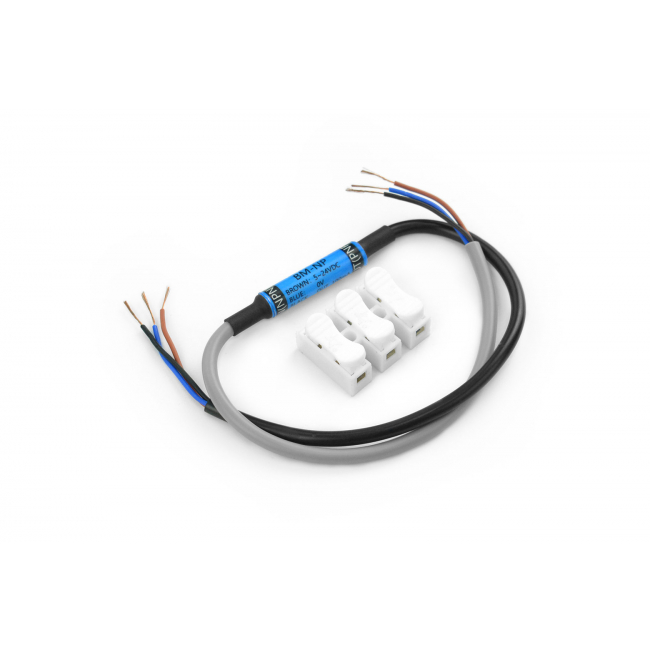

DFRobot - NPN to PNP Signal Converter / Adapter Module
£9.07
£7.56
If sensors are used in your equipment or control systems, having these signal converter modules like this NPN to PNP converter readily available could effectively eliminate the last-minute problems that you encounter when your controller and the type of sensor you are using have a mismatched signal.
SKU
DF-FIT0850
Introduction
If sensors are used in your equipment or control systems, having these signal converter modules like this NPN to PNP converter readily available could effectively eliminate the last-minute problems that you encounter when your controller and the type of sensor you are using have a mismatched signal.
This signal converter is designed to convert NPN signal to PNP and is equipped with surge absorption and over-current protection to further protect your device.

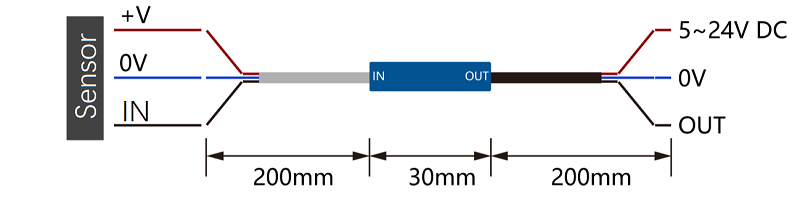

Pinout

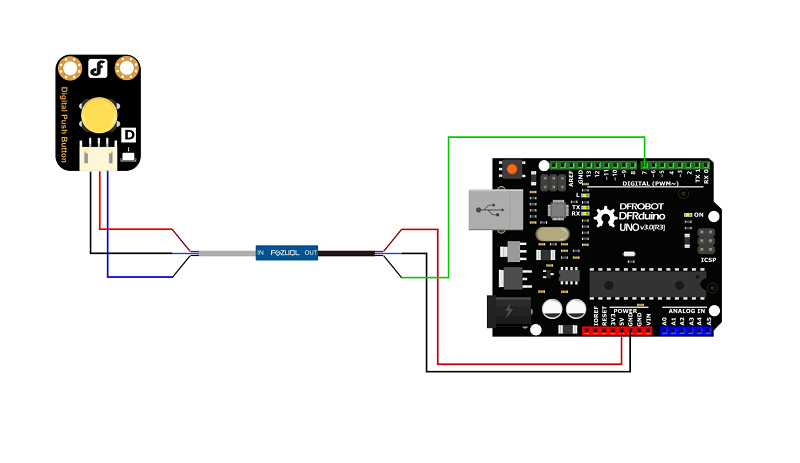

Connection Diagram
Specification
- Working Voltage: 5~24V DC
- Current Protection: Overcurrent protection, surge absorption
- Load Current: 100mA max
- Operating Temperature: -20℃~70℃
- Operating Humidity: 35~85%RH
- Response Time: 1us
- Model: BM-NP
- Conversion: NPN.NO-PNP.NO
Shipping List
- NPN to PNP Converter x1
- Wire Connector x1
Documents
| Manufacturer | DFRobot |
|---|
