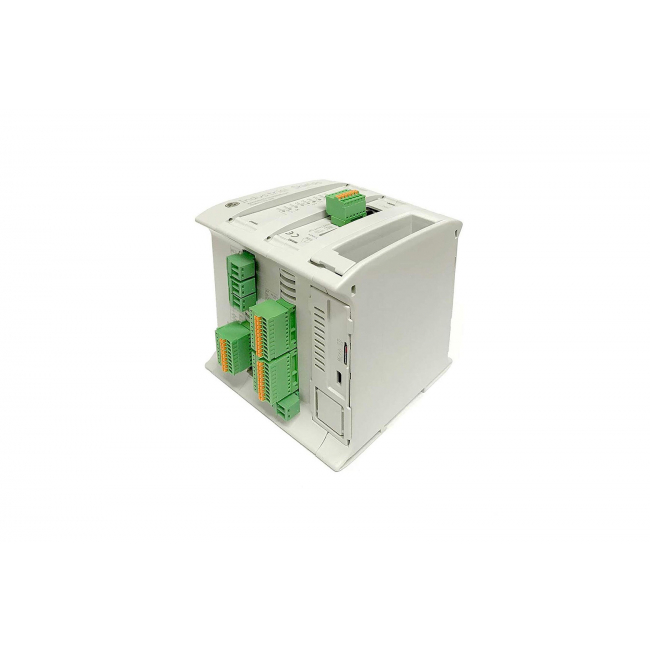

DFRobot - PLC Industrial Controller compatible with Raspberry Pi (Relay Output)

This equipment based on the Raspberry Pi technology is designed for professional use.

This PLC has up to 36 Digital Inputs, 16 Analog Inputs, 8 Analog Outputs, up to 23 Relays and 6 Interrupts. It also contains several communication ports like, the CAN bus, double Ethernet port, double RS-485, WiFi, Bluetooth, which provides great flexibility and control.

This PLC runs a Linux or a Raspberry Pi OS. The PLC Raspberry Pi has the most important features to improve speed process, use a wide range of connections and secure your data and your operating system. It uses UPS uninterruptible power supply.

Compared to most common PLCs, it allows high-speed processing and multi-process to work with applications in real time. Besides, the PLC Raspberry Pi has the internal clock that guarantees the current time and date to keep track of the right time.

• UPS - Uninterrupted Power Supply
• High Processing Speed
• Multi-process
• LINUX or Raspberry Pi OS (previously called Raspbian)
• Multiple Connectivity, Multiple Options
• RTC - Real Time Clock

• IoT Project
• Industrial environment using Linux

• Mode Type: Raspberry PLC
• Input Voltage: 12~24Vdc (Fuse Protection (2.5A) Polarity Protection)
• Input Rated Voltage: 24Vdc
• Rated Power: 30W
• Max Current: 1.5A
• Size: 101*701*119.5mm
• SRAM: 2/4/8 GB

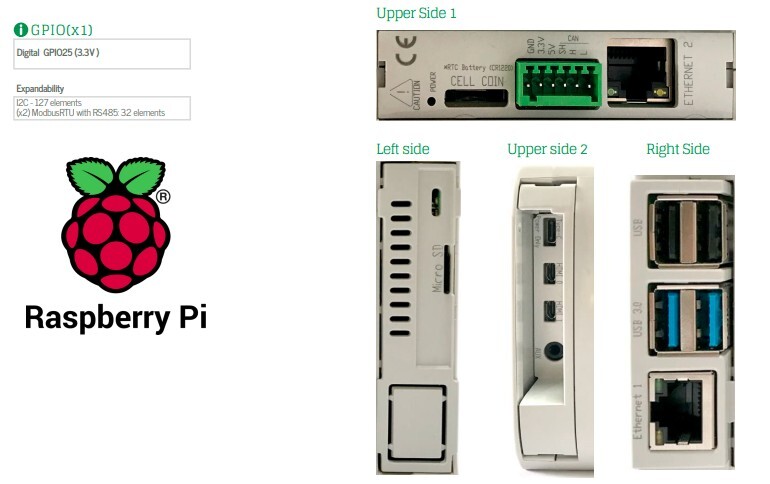

• Communication: I2C, Ethernet (x2), USB (x4), RS485 (x2), SPI , WiFi, Bluetooth, Serial TTL, CAN, mircoSD, RTC
• Operating Voltage Range: 11.4~25.4Vdc
• Operating Temperature: 0º to 50ºC with Raspberry OS Lite / 0º to 40ºC with Raspberry OS Desktop
• Operating Humidity: 10%~90% (No Condensation)
• Storage Temperature: -20℃~60℃
• Weight: 378g
• I/Os Voltage Range
             Analog I/Os Voltage: 0~10Vdc

• Raspberry Pi PLC (Relay Output) x1
