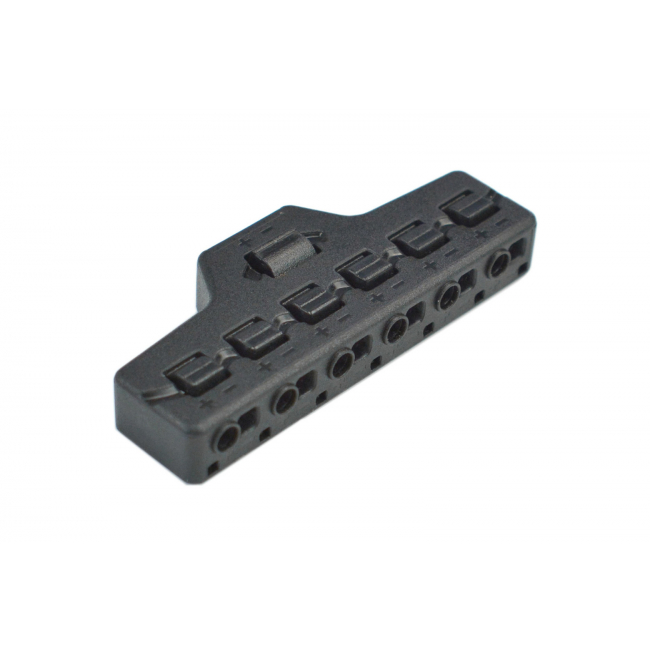

DFRobot - Push-in Wire Connector (1 Input to 6 Outputs)

This push-in 1-in 6-out wire connector can easily turn one input connection into 6 output connections. It features firm wiring, recyclability, flame retardant, and fire resistance. The conductive spring clamp inside the connector is made of nickel-coated steel, which is anti-corrosion, tight, not easy to loosen or fall off.

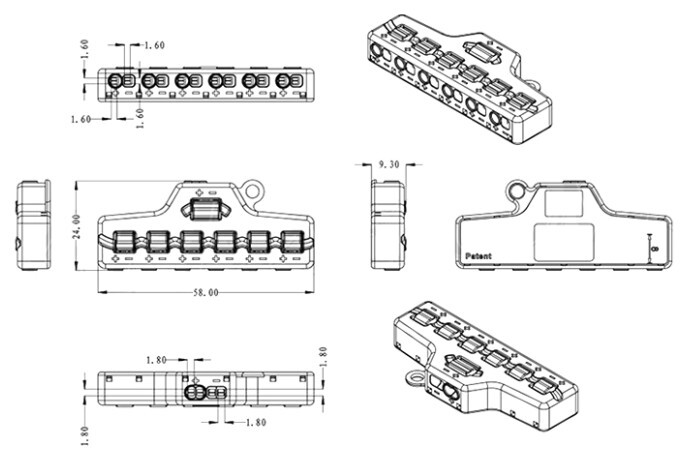

Dimension

• Push-in connection, convenient to use
• With CE certification

• Power Supply Tool

Electrical Parameters

• Rated Voltage: 0-42V DC
• Rated Current

• Operating Temperature: 0-40°C

Connector Parameters

• Input
              Solid/stranded conductor: 0.34-0.75mm²
              Tinned flexible conductor: 0.34-0.75mm²
              Flexible conductor with copper sleeve: 0.5-0.75 mm²
• Output
              Solid/stranded conductor: 0.2-0.5mm²
              Tinned flexible conductor: 0.2-0.5mm²
              Flexible conductor with copper sleeve: 0.5mm²

• Wiring Method: Push-in

Material Specifications

• Insulation Material: Polyamide 66
• Insulation Fire-proof level: UL 94V-2
• Clamps: Copper and stainless steel
• Size: 58*24*9.3mm/ 22.83*9.45*3.66 inch

• Push-in Wire Connector (1 Input to 6 Outputs) x1
