DFRobot - Raspberry Pi 4 Model B - 4GB

Note: We have Raspberry Pi 4B Starter Kit that you can purchase all you need with one click.

Here comes the 4th generation Raspberry Pi model B of popular Raspberry Pi family! Compared to the prior-generation Raspberry Pi 3 Model B+, Raspberry Pi 4B offers significantly increases in processor speed, multimedia performance, memory, and connectivity. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems, which could let you enjoy smooth and high-quality experience!

Raspberry Pi 4B includes a high-performance 64-bit quad-core processor, and features dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

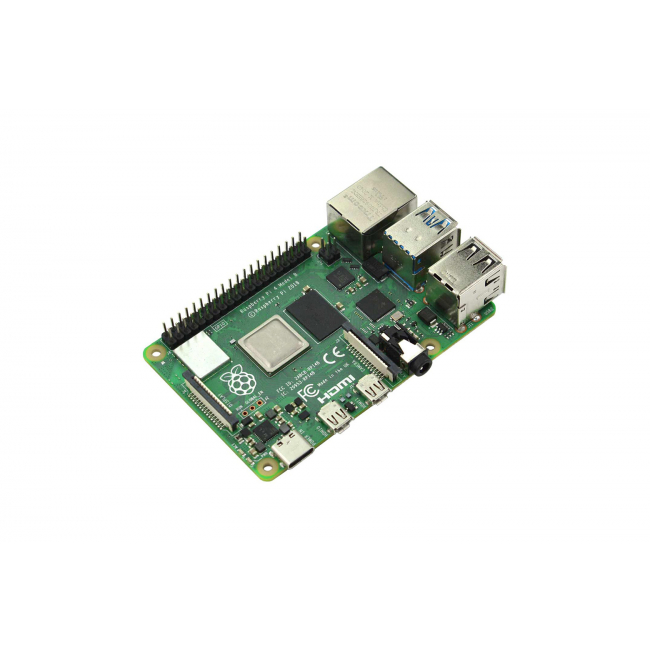

Board View

Peripheral Interface

• Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8)    64-bit SoC @ 1.5GHz
• Memory: 1GB, 2GB or 4GB LPDDR4   (depending on model)
• Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN,    Bluetooth 5.0, BLE Gigabit Ethernet    2 × USB 3.0 ports    2 × USB 2.0 ports.
• GPIO: Standard 40-pin GPIO header (fully backwards-compatible with previous boards)
• Video & Sound: 2 × micro HDMI ports (up to 4Kp60 supported)    2-lane MIPI DSI display port    2-lane MIPI CSI camera port    4-pole stereo audio and composite video port
• Multimedia: H.265 (4Kp60 decode);    H.264 (1080p60 decode, 1080p30 encode);    OpenGL ES, 3.0 graphics
• SD card support: Micro SD card slot for loading operating system and data storage
• Input power: 5V DC via USB-C connector (minimum 3A1)    5V DC via GPIO header (minimum 3A1)    Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
• 5V 3A Power Input

• Raspberry Pi Model 4B-4GB x1
