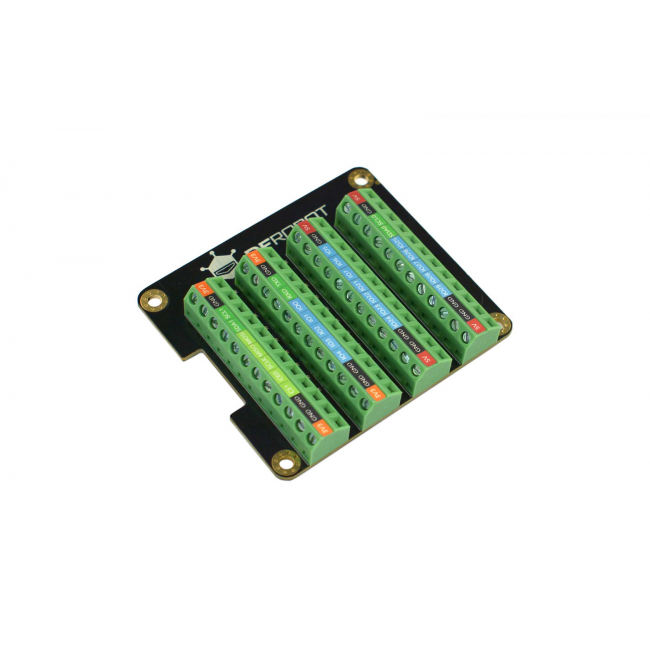

DFRobot - Raspberry Pi 4B GPIO Terminal Block HAT

This terminal block expansion hat for Raspberry Pi offers securely and stably fitted connections for your projects.

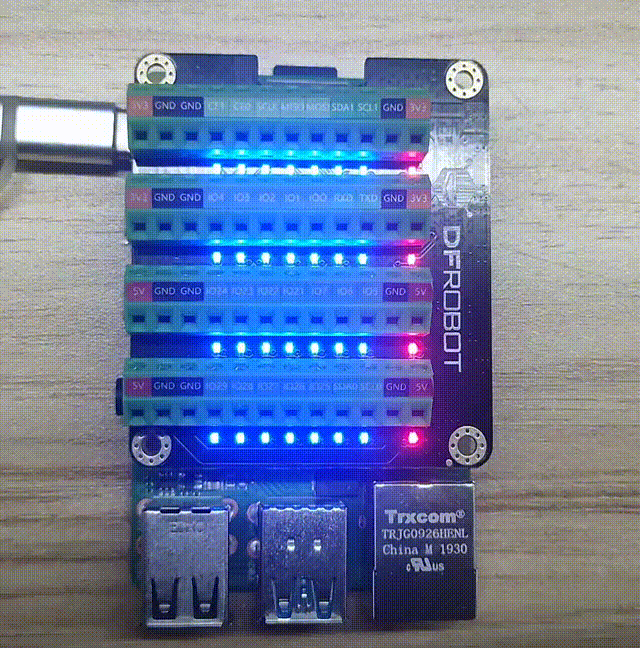

All GPIO pins are broken out to terminal blocks. The terminal block is labeled with high-quality color silkscreens, clear and durable. Besides, it has onboard level indication LEDs for corresponding pins below the blocks, which allows users to directly view the pin status when operating GPIO so as to conveniently do testing, debugging, and post-maintenance.

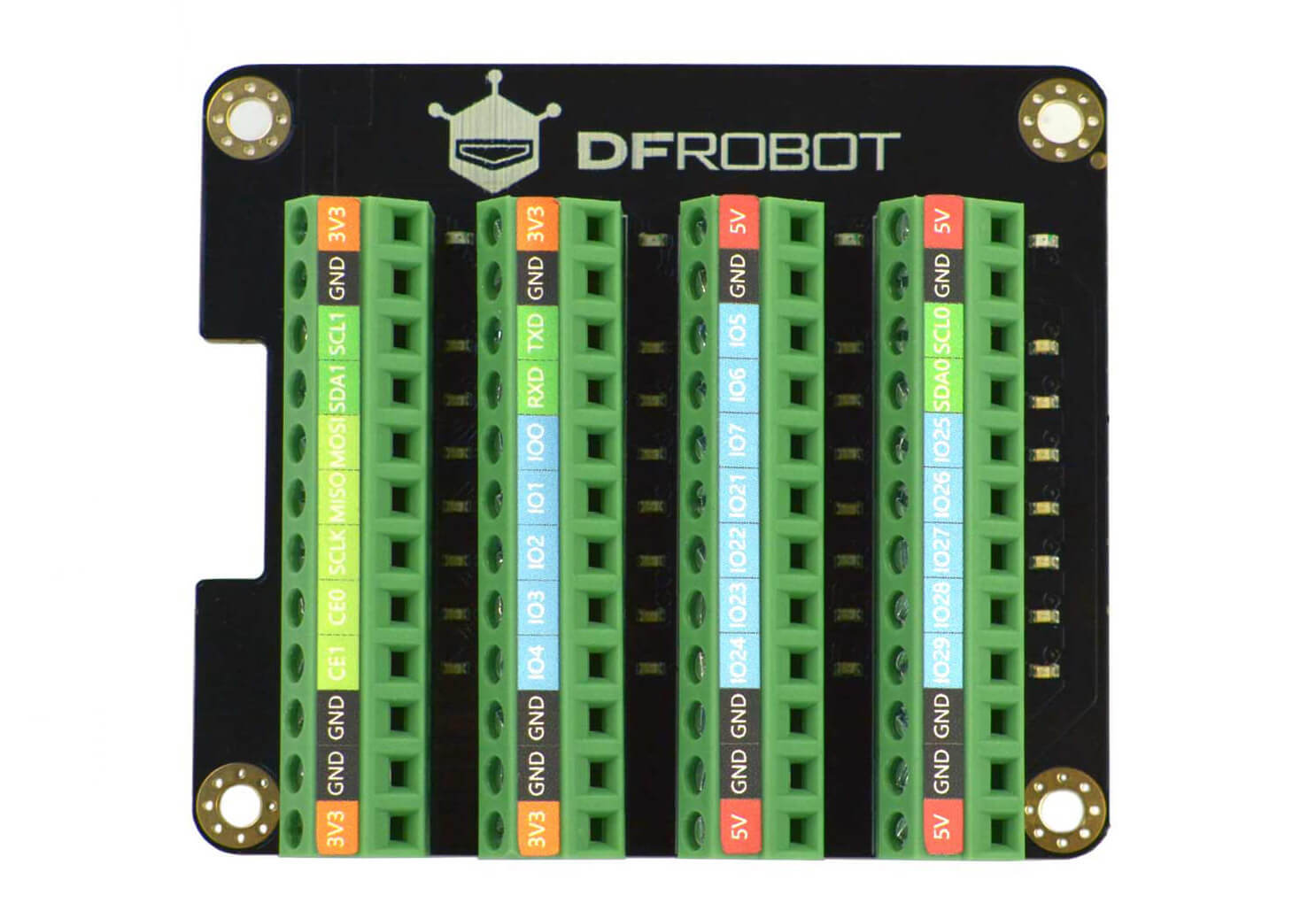

Board Overview

On-board LED for LED blinking demonstration

• Colorful silkscreen for a quick view
• Port level status indicators for easy test, debugging and post-maintenance
• Multiple GND, 3.3V, and 5V ports broken out for simple wiring

• Projects requiring long-term connection with Raspberry Pi

• GPIO x28
• 3.3V Port x4
• 5V Port x4
• GND Port x12
• Dimensions (Excluding Package): 65x56.5mm/2.56x2.22"
• Terminal Block Type: 127S-3.81mm
• Number of Silkscreen Color: 6
• LED Indicator x32
• LED Indicator Color: Blue
• LED Indicator Default to Be On: CE0, CE1, SDA1, SCL1, SDA0, SCL0, RXD, TXD, I022, IO21, 3.3V, 5V
• Compatible with Raspberry Pi 4B/3B/Zero

• Raspberry Pi GPIO Terminal Block HAT x1
• Mounting Copper Column & Screws x4
