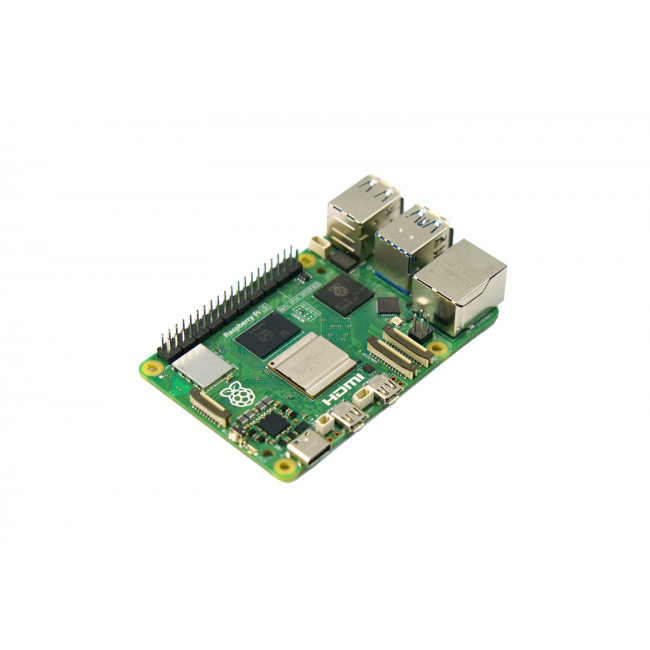

DFRobot - Raspberry Pi 5 Single Board Computer - 4GB

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 single-board computer delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU, it supports dual 4Kp60 display output over HDMI and provides state-of-the-art camera support through a rearchitected Raspberry Pi Image Signal Processor. This combination ensures a smooth desktop experience for consumers and opens the door to new applications for industrial customers.

For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

Dimension Diagram of Raspberry Pi 5 Single Board Computer

Interface Diagram of Raspberry Pi 5 single-board computer

• Raspberry Pi Fifth Flagship Development Computer: Feature a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, using silicon built in-house at Raspberry Pi, offering a step change in peripheral performance and functionality
• Significant Graphics Capability: Equip an 800MHz VideoCore VII GPU and deliver better graphics performance, suitable for multimedia applications, gaming, and graphics-intensive tasks
• State-of-the-Art Camera Support: Built with the dedicated dual 4-lane 1Gbps MIPI DSI/CSI connectors, tripling total bandwidth, and supporting any combination of up to two cameras or displays
• Versatile Connectivities: Offer Gigabit Ethernet and a PCIe interface, along with dual-band Wi-Fi and Bluetooth 5.0/BLE wireless capability
• Enhanced Peripherals: Provide 1x UART connector, 1x microSD card slot supporting high-speed, 2x USB.0 3.0 supporting sync 5Gbps operation, 2x USB2.0 ports ports, 1x RTC, 2x 4Kp60 display output with HDR support

• PC alternatives
• Multimedia Center
• Console
• Education and Learning Tools
• Smart Home Systems
• Sensor Network
• Remote Monitoring
• Industrial Automation
• Embedded Systems Development

• CPU: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
• GPU: VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Display Output: Dual 4Kp60 HDMI® display output with HDR support
• Video Decoder: 4Kp60 HEVC decoder
• RAM: 4GB LPDDR4X-4267 SDRAM
• Wi-Fi: Dual-band 802.11ac Wi-Fi®
• Bluetooth: Bluetooth 5.0/ Bluetooth Low Energy (BLE)
• Storage: microSD card slot, with support for high-speed SDR104 mode
• Power Button: On/Off included
• USB Ports:
        2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
        2 × USB 2.0 ports
• Ethernet: Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• Camera/Display: 2 × 4-lane MIPI camera/display transceivers
• PCIe Interface: PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• Power: 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi Header: Raspberry Pi standard 40-pin header
• Real-time Clock (RTC): Powered from external battery

• Raspberry Pi 5 Single Board Computer - 4GB x1
