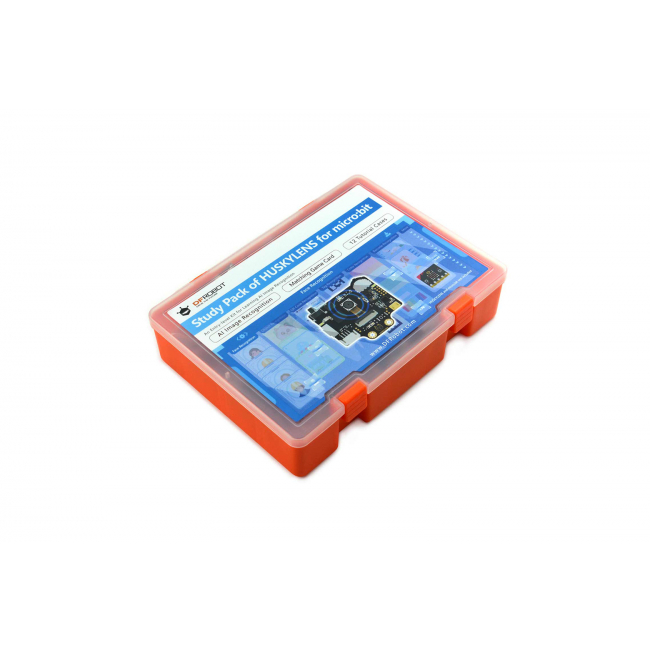

DFRobot - Study Pack of HUSKYLENS for micro:bit

Note: HUSKYLENS and micro:bit board are not included.

The Study Pack of HuskyLens for micro:bit is a great partner for the AI Vision Smart Sensor - HuskyLens. Based on micro:bit programming, it aims to extend the capabilities of HuskyLens and help students learn knowledge related to AI image recognition in an enjoyable and engaging way.

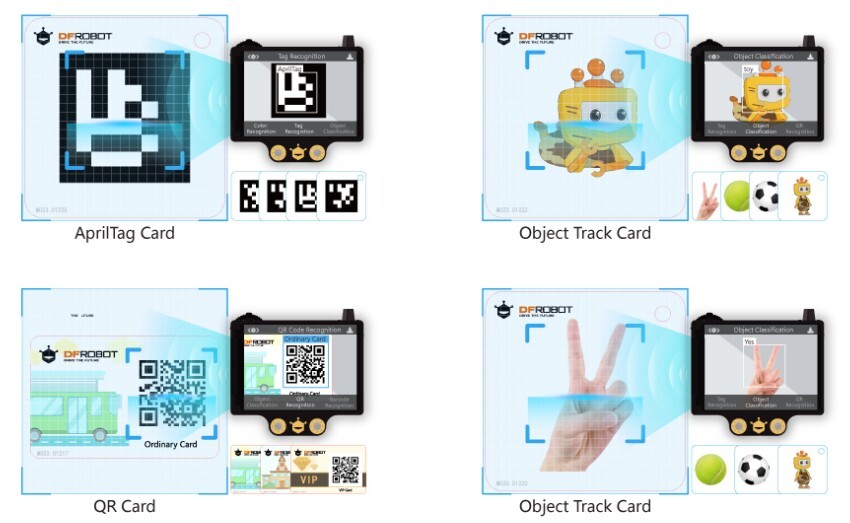

The extension kit is designed for users to better understand the eight functions of HuskyLens. The kit contains “Face cards”for face recognition project, “Color cards” for color recognition learning, and “Barcode cards” for studying lessons like self-service checkout. Besides, it also comes with cards of other types like animals, plants, QR codes, objects, gestures, etc.

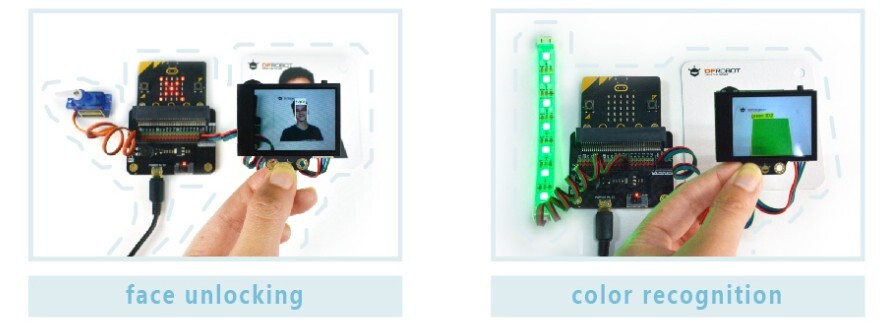

Besides the cards we mentioned above, the kit also includes 7 external modules. For instance, the servo can be used in face unlocking project, RGB LED strip for color recognition, and voice recorder module for sound-related project.

Tutorial

The tutorial consists of 12 chapters with about 2 projects included in one chapter, in which students will explore how the AI Image Recognition technology is applied in everyday life by projects like face unlocking, AI camera, pet feeding, self-service checkout, target tracking, etc.

Catalogue

• Music Magic Mirror

Project 1 Distinguish human faces

Project 2 Add music

• Face Recognition Access Control

Project 1 Multiple face discrimination

Project 2 Smart access control

• Colorful Piano

Project 1 Distinguish multiple colors

Project 2 Define notes

• Vending Machine for Cats And Dogs

Project 1 Distinguish between cats and dogs

Project 2 Add the function of sending grain

• Object Tracker

Project 1 Object tracking and coordinate value function

Project 2 Vibration feedback prompt

• Self-service Cashier

Project 1 Commodity price display

Project 2 Commodity settlement

• Energy Harvest

Project 1 Generate energy value

Project 2 Energy Synthesis

• Smart Bus Ticketing Machine

Project 1 Pay by card

Project 2 Voice prompt "Payment successful"

• Safety Helmet Reminder

Project 1 Shows whether or not a helmet is worn

Project 2 Safety helmet reminder device

• Encryption and Decryption

Project 1 Character encryption

Project 2 Decrypt

• HuskyLens AI Camera

Project 1 Touch-controlled camera

Project 2 Voice-activated camera

Project 3 Time-lapse photography

• Emergency Lane Watchdog

Project 1 Taking pictures of vehicles

Project 2 Alarm reminder

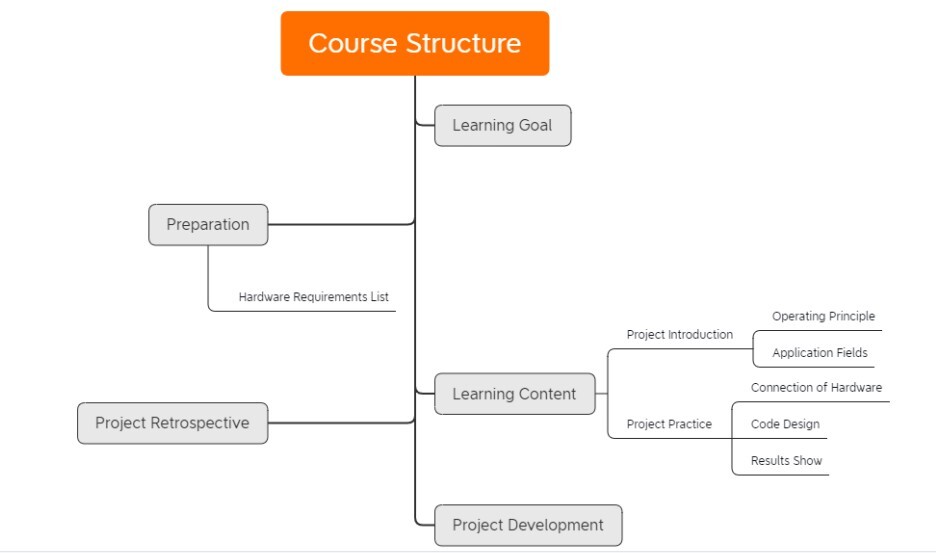

Course Structure

The course structure clearly describes how a lesson is implemented, which can help to build up projects conveniently.

Tutorial Cases

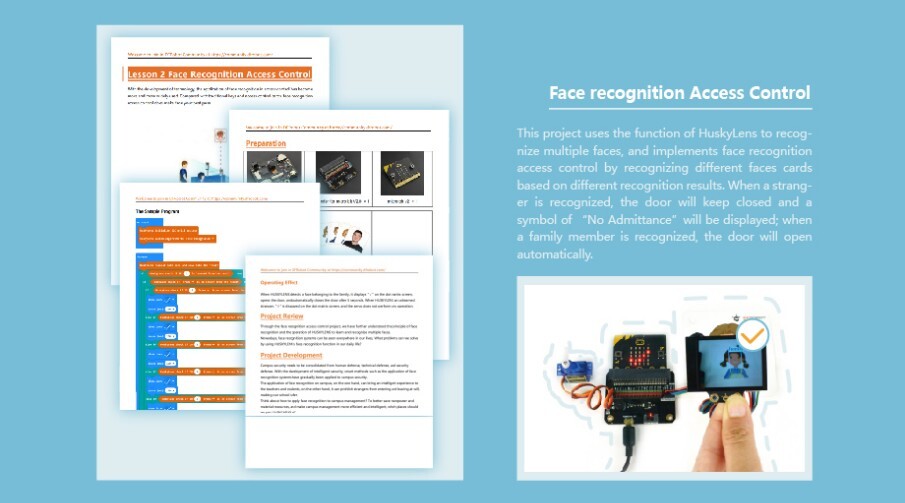

Face Recognition Access Control

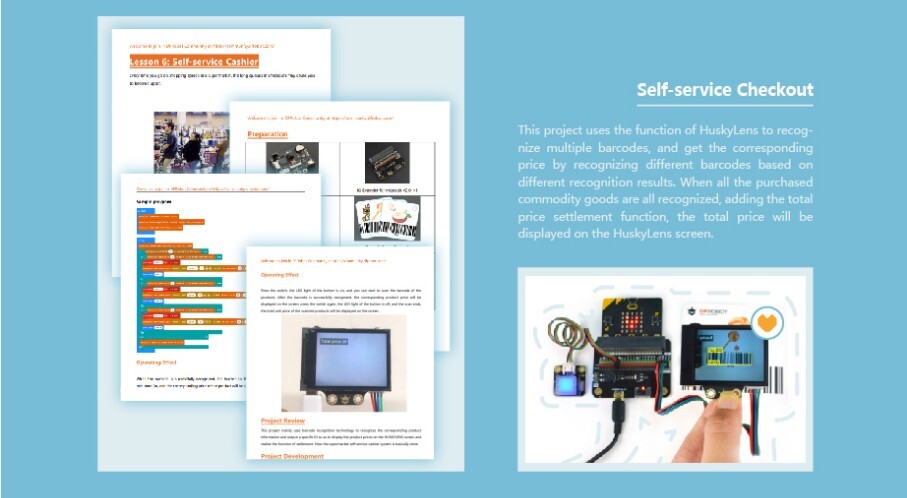

Self-service Checkout

• A variety of tutorial cases, 25 fun projects in 12 lessons
• 28 teaching cards help you easily learn the AI image recognition function
• Cards: people, colors, objects, barcodes, labels, QR codes, object tracking

• IO Extender for micro:bit ×1
• Gravity: Vibration Motor Module For Arduino ×1
• Gravity: Voice Recorder Module ×1
• Stereo Enclosed Speaker-3W 8Ω ×1
• 9g 180° Micro Servo (1.6kg) ×1
• Bistable LED Switch - Blue ×1
• RGB Full Color LED Strip ×1
• Micro USB Cable ×1
• Gravity: Digital Sensor Cable for Arduino ×4
• Gravity: Analog Sensor Cable for Arduino ×1
• Face Card ×5
• Color Card ×7
• Object Card ×4
• Barcode Card ×3
• QR Code Card ×3
• Object Tracking Card ×3
• Label Card ×3
• Plastic Round Snap Ring ×1
