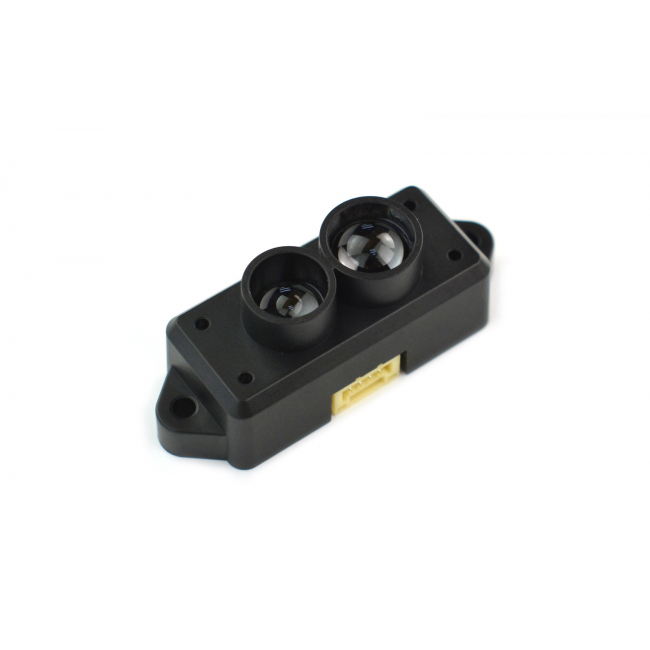

DFRobot - TFmini-S ToF Single-Point Ranging Solid State LiDAR Sensor (12m, UART / I2C)
£36.18
£30.15
- Unidirectional laser range finder
- Maximum Detection Range: 12m
- Perform excellent in distance measurement, high precision.
- Support 100Hz sampling resolution, responsive.
- Small size and low power consumption.
SKU
DF-SEN0259
Introduction
The TFmini-S is a unidirectional laser range Lidar based upon time-of-flight (ToF) technology. It consists of special optical and electronic devices, which integrates
adaptive algorithm for indoor and outdoor application environment. It has tiny body and high performance in distance measurement.
It can be easily integrated into the system when used with the Arduino library developed by DFRobot.
Wiring diagram of TFmini-s solid state lidar and Arduino
Measurement range schematic diagram
NOTE:
Mini Size
The TFmini-S single-point solid state LiDAR's size is only 42x15x16mm and its weight is only 5g, this mini size allows you to integrate it into small applications.
High Performance
The TFMini-S is a upgraded ToF Single-Point LiDAR based on the TFmini.
- Blind zone is shortened to 10cm
- No fear of ambient light
- Supports up to 1000Hz output
- UART, I²C communication interfaces switchable at any time
Easy to Get Start
TFmini-S lidar sensor adopts UART (TTL) / I2C communication interface, can supplied by standard 5V, and its average power consumption is 0.6w. It can be compatible with a variety of Arduino controllers. With the DFRobot Gravity IO Expansion Shield, Arduino can be plugged in directly without additional wiring.It can be easily integrated into the system when used with the Arduino library developed by DFRobot.
Wiring diagram of TFmini-s solid state lidar and Arduino
Detection Distance
The maximum detection distance of TFmini-S solid-state lidar is 12 meters. FOV of 2 degrees. Its anti-interference is strong, and can work in outdoor light.
Measurement range schematic diagram
NOTE:
- The product may be invalid when probing objects with high reflectivity, such as mirrors and smooth tiles.
- When there are transparent objects, such as glass and water, between the product and the tested object, it may become invalid.
- Do not touch the circuit board with your bare hands. If necessary, please wear an electrostatic wristband or antistatic gloves.
Features
- Unidirectional laser range finder
- Maximum Detection Range: 12m
- Perform excellent in distance measurement, high precision.
- Support 100Hz sampling resolution, responsive.
- Small size and low power consumption.
Applications
- Machine control and safety measurement systems
- Laser range finder robot
- Altitude hold quad-copters and terrain following
Specification
- Voltage Range: 5V±0.1V
- Communication Interface: UART / I2C
- Working Range: 0.1m-12m @90% Reflectivity
- Average Power: 0.6W
- Acceptance Angle: 2°
- Minimum Resolution: 1mm
- Refresh Frequency: 100Hz
- Ranging Accuracy: ±6cm@ (0.1-6m) ±1%@ (6m-12m)
- Ranging Unit: mm
- Band: 850nm
- Size: 1.65in x0.59in x0.63in / 42mm x15mm x16mm
- Operating Temperature: 0°C ~ 60°C
- Storage Temperature: -20°C~75°C
- Anti-light Environment: 70Klux
- Weight: 4.7g
Shipping List
- TFmini-S LiDAR (12m) x1
- TFmini-S LiDAR (12m) A wire x1
- TFmini-S LiDAR (12m) B wire x1
