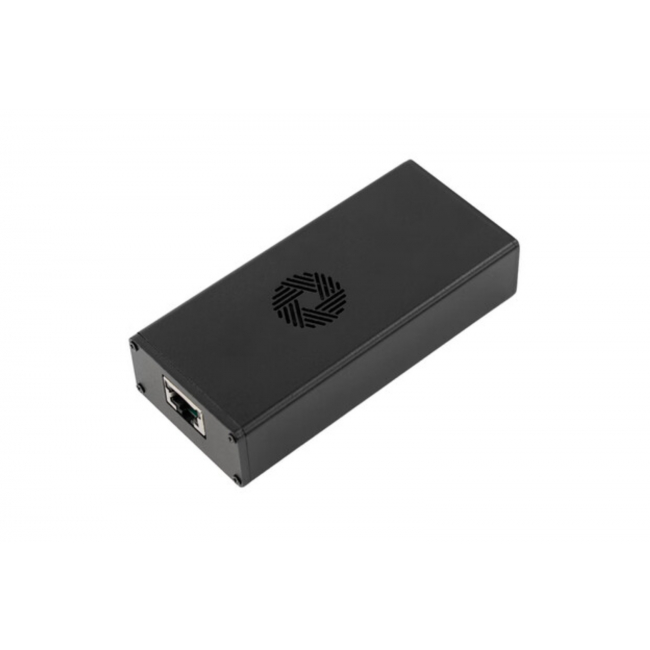

DFRobot - Thunderbolt 4 10G Ethernet Adapter for LattePanda Sigma (40Gbps)

This Thunderbolt 4 10G Ethernet adapter adds high-speed wired networking to USB4 and Thunderbolt host systems through a 40Gbps Type-C bus and native 10GBASE-T Ethernet interface. Designed for LattePanda Sigma, high-performance single-board computers and other compatible host devices, this external 10G network adapter provides up to 10Gbps Ethernet connectivity through a standard RJ45 port.

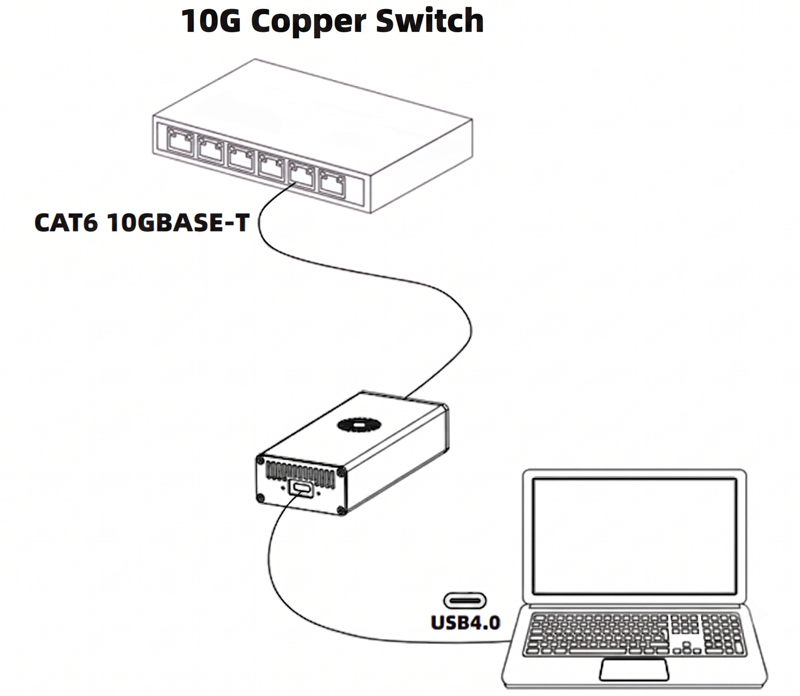

40Gbps USB4 and Thunderbolt 3/4 Host Interface

This 10GbE adapter uses the JHL6340 Thunderbolt chip and provides a theoretical Type-C bus bandwidth of up to 40Gbps. Compatibility with USB4 and Thunderbolt 3/4 allows the adapter to connect to supported desktop terminals, mobile computing devices and high-performance embedded computers through a high-bandwidth external interface.

Native 10GBASE-T Ethernet Through Standard RJ45

This Thunderbolt Ethernet adapter integrates an AQC107 network controller and provides a standard RJ45 interface with a transmission rate of up to 10Gbps. The Ethernet interface also supports adaptive compatibility with Gigabit and 100Mbps networks, allowing the same adapter to operate across different wired network infrastructures. CAT6 or higher specification network cable is required.

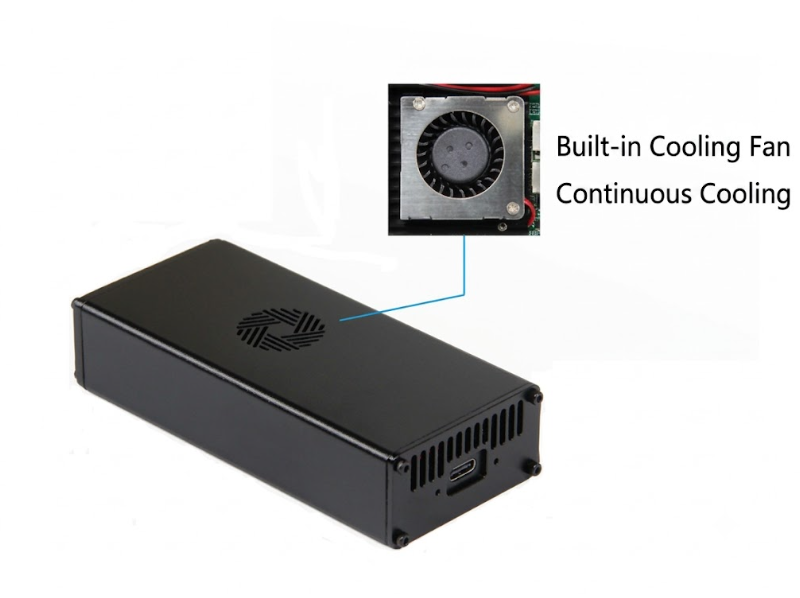

Active Cooling for Sustained High-Throughput Networking

This 10G Ethernet adapter combines an all-metal enclosure, multi-dimensional heat dissipation vents and an internal cooling fan. The active thermal design helps reduce heat accumulation during continuous high-throughput network transfers and supports stable link operation under sustained loads.

Integrated Network and Activity Status Indicators

This external network card integrates status indicators at the RJ45 interface for direct visibility of network link and data activity. The indicators provide at-a-glance feedback during setup, troubleshooting and continuous network operation.

• Type-C host interface with theoretical bus bandwidth up to 40Gbps
• Compatible with USB4 and Thunderbolt 3/4 interfaces
• Standard RJ45 interface provides up to 10Gbps Ethernet connectivity
• Supports adaptive compatibility with Gigabit and 100Mbps networks
• JHL6340 Thunderbolt chip and AQC107 network controller
• Internal cooling fan and metal enclosure with heat dissipation vents
• Integrated RJ45 status indicators for network and data activity
• Compatible with Windows 10/11, Linux and Mac systems

• 10GbE network expansion for LattePanda Sigma
• High-speed wired networking for compatible single-board computers
• 10GbE expansion for USB4 and Thunderbolt 3/4 host devices
• High-throughput local network data transfer

Type-C Interface Specifications

• Thunderbolt Chip: JHL6340
• Speed Bandwidth: 40Gbps
• Supported Interfaces: USB4, Thunderbolt 3/4

RJ45 Interface Specifications

• Network Card Chip: AQC107
• Transmission Rate: 10Gbps

Other Specifications

• Cable Requirements: CAT6 or higher specification network cable
• Compatible Systems: Windows 10/11, Linux, Mac
• Indicator Lights: Blue LED (Activity Indicator), Yellow LED (Network Indicator)
• Dimensions: 106x50x25mm

• Thunderbolt 4 10G Ethernet Adapter x1
• Thunderbolt data cable - 30cm x1
