DFRobot - Veyron Servo Driver (24 Channel)

£30.20 £25.17
SKU
DF-DRI0029
Brand
DFRobot

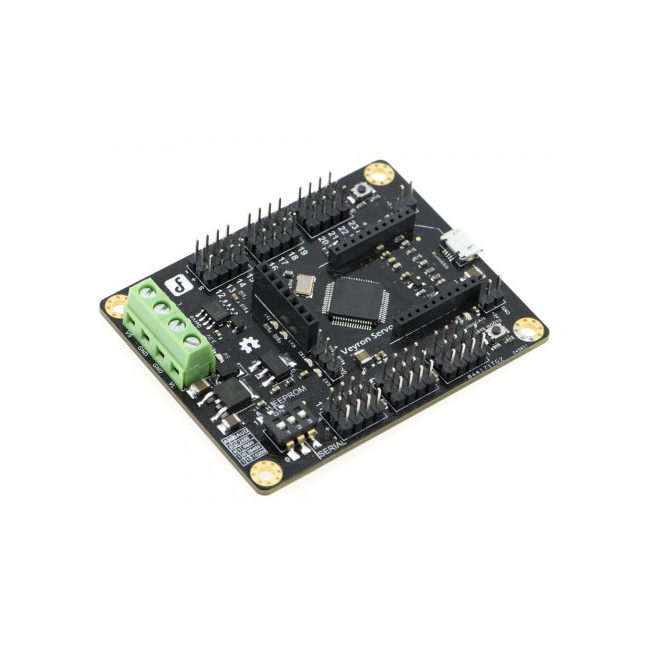

DFRobot - Veyron Servo Driver (24 Channel)

Veyron Servo Driver (24-Channel) is a multiple servo controller, especially designed for humanoid robots, spider robots, robotic arms, and many other likewise applications. The controller integrates wireless data transmission interface, which is fully compatible with DFRobot Bluetooth module, APC220 wireless data transmission module and Xbee module.

The controlling modes include real-time, timer and constant speed. Veyron Servo Driver (24-Channel) is the most powerful Mirco USB servo driver with high reliability on the market. It uses a high-performance, low-power STM32F103 microcontroller as its core control unit, which has a powerful, fast execution speed, high accuracy, strong I / O drive power.

It supports Futaba, Hitec, TowerPro and other common servos. The servo control range is 0 ~ 180 ° (for 360 ° continuous rotation, retrofitting is needed). It has two servo modes: single servo control and group servo control. In group mode, servo speed of the same group can be coordinated automatically with start and stop simultaneously. This funtion can be very useful in multi-DOF biomimetic robots, which requires smooth actions.

There's also a user-friendly, intuitive software – DFServo (Virtual Servo Controller) for you. With this software and Veyron servo driver, you’ll be able to easily control, set and adjust many of your servo combinations and acts directly with computer. You can find its wiki page here.

Applications

  • Humanoid robots
  • Spider robots
  • Robotic arms
  • Robotic platforms

Specification

  • Output channels: 24 (PWM output or TTL level output);
  • Servo Power: DC 4.8V ~ 6V;
  • Logic Power: DC 6V ~ 12V or USB (with a resettable fuse in debugging);
  • Driver Resolution: 1uS; 0.09°;
  • Drive speed Resolution: 1uS/s; 0.09°/s
  • Communication Interface: Micro USB /TTL serial interfaces;
  • Baud rate: 2400,9600,38400,115200
  • Size: 57.3 x 72.3mm
