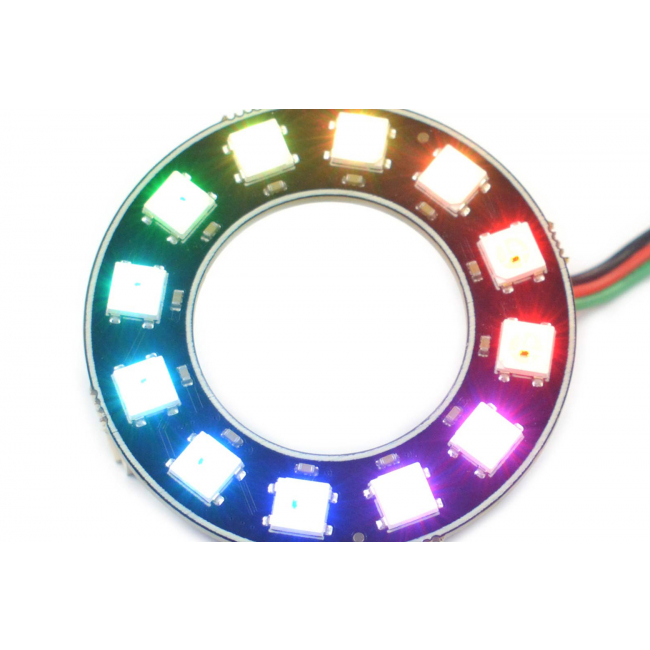

DFRobot - WS2812-12 RGB LED Ring Lamp

Shine like rainbows, this full-color RGB LED Ring with an exquisite and cool appearance could be a great partner for your interactive applications. Add it to your project to brighten your creativity!

Small in size, these LED beads come in a variety of colors and can be cascaded. Only one signal line is required to control the color and status of all leads.

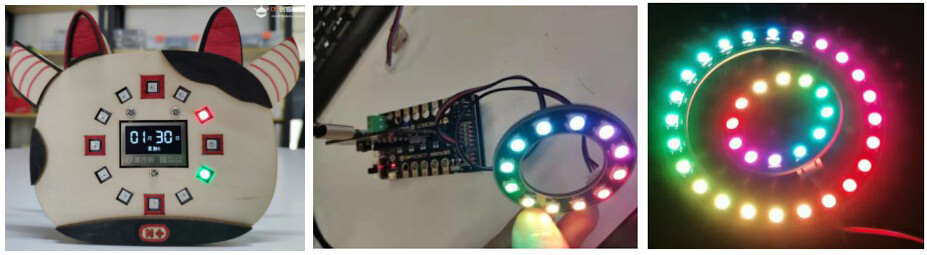

Combining with sensors, it could turn into a compass that tells direction, a cool clock, a tomato timer, a countdown timer…

It could also be a turntable lottery machine, colorful decoration for robots, DIY interactive projects, venue layout, etc. Come and unlock more fun ways to play with this colorful RGB LED ring.

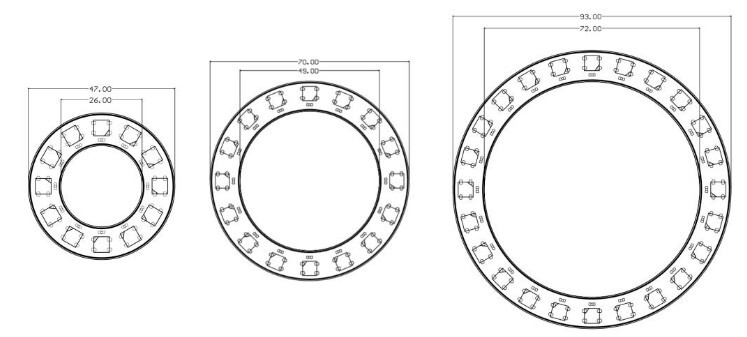

LED Ring Size

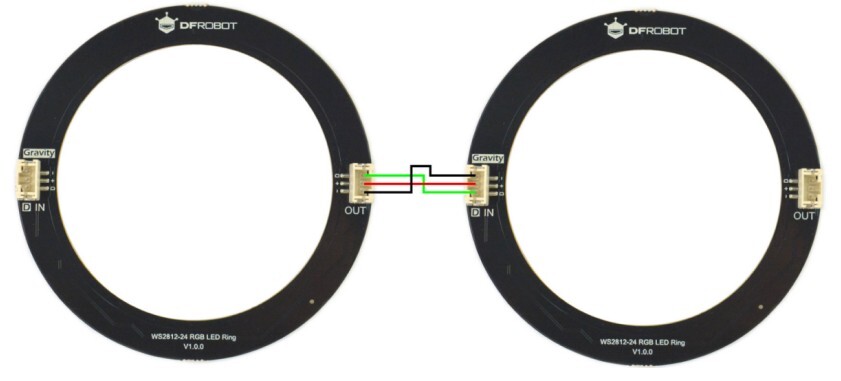

Cascade Control

There are three types of lamp rings with different numbers of lamp beads, each of which can be controlled individually, and you can also cascade multiple lamp rings. The cascading method is to connect the OUT terminal of the first lamp ring to the IN terminal of the second lamp ring, and so on.

Selection Guide

Product Name

WS2812-12 RGB LED Ring Lamp

WS2812-16 RGB LED Ring Lamp

WS2812-24 RGB LED Ring Lamp

Figure

SKU

DFR0888-12

DFR0888-16

DFR0888-24

LED Ring

RGB LED Ring - 12 Beads

RGB LED Ring - 16 Beads

RGB LED Ring - 24 Beads

Inner Ring Diameter

2.6cm(1.02 inch)

4.9cm(1.93 inch)

7.2cm(2.83 inch)

Outer Ring Diameter

4.7cm(1.85 inch)

7.0cm(2.76 inch)

9.3cm(3.66 inch)

Add to Cart

• Full-color WS2812 RGB
• 1-Wire bus control
• Support cascading of multiple LED rings
• Support multiple programming platforms: Mind+, MakeCode, Arduino IDE

• STEM Education

• Working Voltage: 3.3~5V
• Maximum Operating Current: ＜100mA
• Interface Type: PH2.0-3P
• Lamp Bead Model: WS2812
• Number of Lamp Beads: 12
• Color: 16 million colors

• WS2812-12 RGB LED Ring x1
• Gravity: Digital Sensor Cable (30cm) x1
