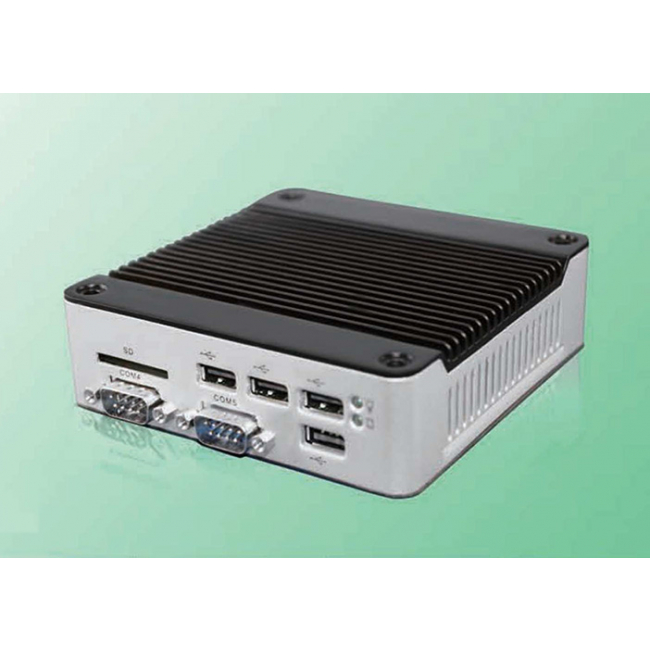

DMP - eBox 3310MX-S4C Mini PC (SD, 4x RS232, 6x USB)

DMP - eBox 3310MX-S4C Mini PC (SD, 4x RS232, 6x USB)

The eBox 3310MX is a complete PC with an i586 architecture. At its core you will find the Vortex86MX+ SoC featuring 32bit Memory bus, 1GB DDR2 RAM.
The 3310MX-S4C includes 6x USB 2.0 ports, 4x Full RS232 ports (DB9), 1x Ethernet port, 1x VGA port and 3x RS232 ports. HDD is provided through an SD card slot only (this model does not support SATA HDDs; the model supporting SATA HDD is the 3310MX-D4C).

The eBox supports i586 operating systems including Linux, Windows XP, Windows CE and Windows Embedded Compact 7.

Model Type eBox 3310MX-S4C Processor Vortex86MX+ (1Ghz): i586 Architecture BIOS AMI BIOS Memory 1GB DDR2 VGA Integrated Graphics Chip /D-Sub 15pin Ethernet 10/100 Mps LAN (RJ45), Built-in PXE diskless boot WiFi Optional USB 6x: 5x External + 1x Internal port Audio Not Available SD Slot 1x SATA Not Supported (for SATA support, check the 3310MX-D4C ) PS/2 1x Serial 4x Full RS232 ports (DB9) All 4 ports expose the full DB9 pins. Power DC +8V ~15V Size 115 x 115 x 35 mm Weight 500g Operating temperature 5 ~ 50º C Certification CE, FCC, VCCI Supported OS'es Linux, Windows XP, Windows CE


eBox 3310MX applications:
The eBox line of products is suitable for Vertical Applications (Kiosk, POS, Thin Client) as well as SoHo applications such as Internet device, compact PC, Home Server, etc.

The 3310MX-S4C and 3310MX-D4C target vertical markets where multiple COMM ports are required.

The improvements made to the Vortex86MX+ - in particular the 32 bit memory bus -, 1GB DDR2 RAM make the 3310MX an appealing proposal for applications where more processing power is required.

In practice it can perform up to 2x faster than eBox 3350MX and up to 4x faster than Roboard 100. (refer to DMP comparison benchmarks)


Additional Resources and Documentation:

• eBox 33xxMX User Manual

• Performance Tips:
  • If using the SD card as the HDD, use Class 6 or Class 10 Full Size SD cards.
    EWF can also be enabled on Windows XP for improved performance.

• Linux Installation:
  • RoboSavvy Guide to Installing Ubuntu 10.04 LTS on eBox 33xxMX/MX+ devices
  • Files and Resources for Ubuntu
  • Linux Kernels for DMP Vortex86 SoC Devices
    (the DMP Kernels Enable LAN - and Audio where applicable - on Linux installations)

• Windows XP Installation:
  • RoboSavvy Guide to Installing Windows XP on eBox 33xxMX/MX+ devices
  • Device Drivers for Windows XP

• Other Operating Systems: see the Compactpc website.

• eBox 3310MX Brochure
• Complete eBox Product Catalogue
  (Robosavvy is a Distributor of eBox in the UK; if you need any particular model in the eBox catalogue that may not listed in our store, please contact sales@robosavvy.com to obtain a Quote and place your Order.)



Kit Contents:

• 1x eBox 3310MX-S4C
• 1x 15V 1.5A Power Supply included (UK plug; other plug types available on large orders)
• 1x CD Rom with User Manual and Device Drivers
