Fischertechnik - APS ADD ON: Annealing Furnace 24v incl. PLC S7-1200

Top Features

• Ideal for adding another production module to the Agile Production Simulation.
• Fully assembled and programmed model
• SIEMENS S7-1200 controller included and installed
• The APS Add On: Annealing Furnace unlocks additional learning content in the Digital Learning Platform
• ATTENTION: Can only be used in combination with the Agile Production Simulation

Product Description

The APS Add On: Annealing Furnace adds a new production module to the Agile Production Simulation (APS). The standard configuration with a drilling and milling module is extended by the optionof a Annealing Furnace. The additional process module allows theintroduction of new derivatives into production or the expansion of
existing production configurations by an additional process step.

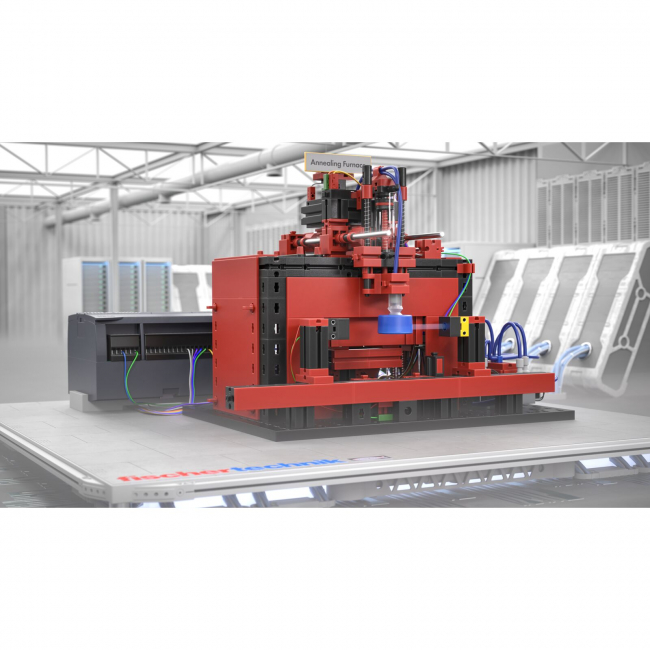

The Annealing Furnace consists of a docking station for the Automated Guided Vehicle system (AGV) and a vacuum gripper that transports the workpiece into the Annealing Furnace using pneumatics.Hardening is simulated there with a red light. After the process, theworkpiece is removed from the Annealing Furnace using a gripperand placed back on the AGV.

Control unit:

• 24V model controlled with SIEMENS S7-1200
• Program in structured text already played on controller

Content

• 1x SIEMENS S7-1200 control unit
• 4x push buttons
• 1x phototransistor
• 1x compressor 24V
• 5x 3/2-way solenoid valve 24V
• 1x vacuum suction cup
• 7x pneumatic cylinder
• 3x light barriers LED 24V
• 1x motor 24V

Technical Data

Documents for Downloading

Factsheet Add On Annealing Furnace
