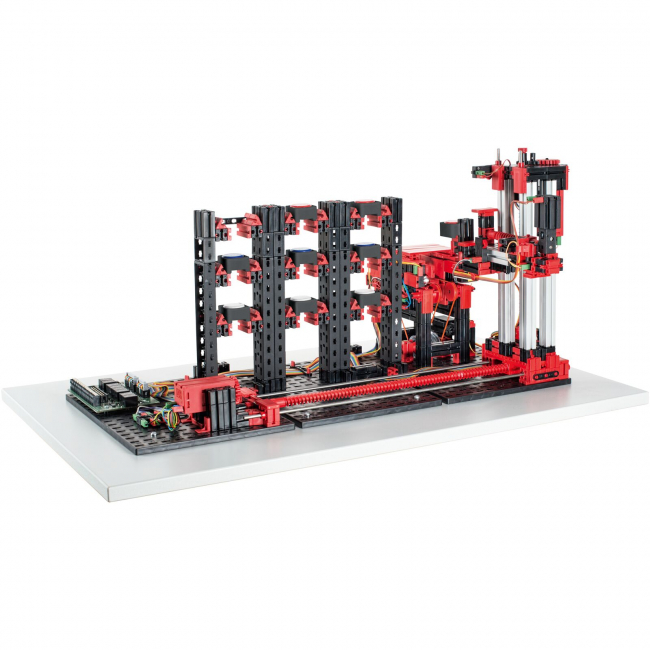

Fischertechnik - Automated High Bay Warehouse 24v
£1,060.72
£883.93
- Ideal training, simulation and demonstration model for training and industrial automation
- Already completed, stable training model
- Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
- CAUTION: absolutely necessary for operation is a PLC control 24V
SKU
FIS-536631
Top Features
- Ideal training, simulation and demonstration model for training and industrial automation
- Already completed, stable training model
- Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
- CAUTION: absolutely necessary for operation is a PLC control 24V
Product Description
Transfer station with conveyor belt, shelf stacker for storing and retrieving special workpiece carriers, 9 storage slots.
Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.
- Current consumption: I = ca. 1,2A
- Inputs digital: 6
- Fast counting inputs: 2 oder 4 (with direction detection)
- Outputs 24V: 8
Content
- 2x Encoder motor (DC motor with magnetic encoder)
- 2x Mini motor (DC motor)
- 4x Push button (limit switch)
- 2x Phototransistor
- 2x LED light barrier
- Workpiece carrier
- 6x Workpiece (blue, red, white)
Technical Data
| Power supply | 24 V |
|---|---|
| Amount | 1 pcs |
| GTIN (EAN-Code) | 4048962250381 |
Documents for Downloading
Technical data sheet encodermotor
| Manufacturer | Fischertechnik |
|---|
