Fischertechnik - Vacuum Gripper Robot 24v
£857.15
£714.29
- Ideal training, simulation and demonstration model for training and industrial automation
- Already completed, stable training model
- Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
- CAUTION: absolutely necessary for operation is a PLC control 24V
SKU
FIS-536630
Top Features
- Ideal training, simulation and demonstration model for training and industrial automation
- Already completed, stable training model
- Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
- CAUTION: absolutely necessary for operation is a PLC control 24V
Product Description

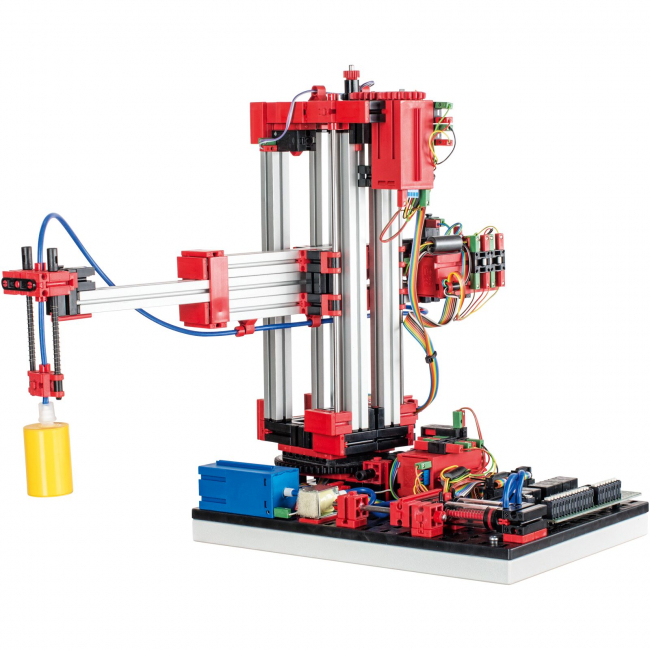

3-axis robot with vacuum gripper works quickly and precisely, positioning workpieces in three-dimensional space. Working range: x-axis 270°, y-axis (forwards/back) 140 mm, z-axis (up/down) 120 mm.
Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.
- Current consumption: I = ca. 0,9A
- Inputs digital: 3
- Fast counting inputs: 3 oder 6 (with direction detection)
- Outputs 24V: 8
Content
- 3x Encoder motor (DC motor with magnetic encoder)
- 3x Push button (limit switch)
- Vacuum exhauster
- Compressor
- Solenoid valve
Technical Data
| Power supply | 24 V |
|---|---|
| Amount | 1 pcs |
| GTIN (EAN-Code) | 4048962250374 |
Documents for Downloading
| Manufacturer | Fischertechnik |
|---|
