JTech - 4.2W Laser and 2.5amp Safety Compliant Driver Kit (Shroud Installed)

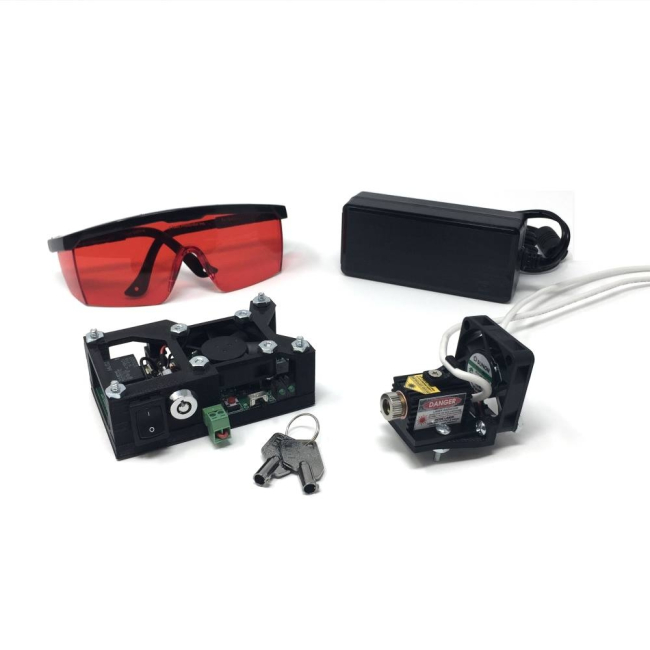

• 4.2W laser diode component with mounting screws and shroud installed
• 2.5 Amp Adjustable Safety Compliant Laser Diode Driver
• Power Adapter 12V 2.5A, US Style Plug
• Laser Safety Goggles for 445nm Lasers
• 3′ Molex MiniFit Jr. Input Cable (for longer lengths purchase here)
• Laser Fan

Laser Overview

This laser is our newest complement to our laser kits and can run at 2.5amps continuously to produce 3.8W of optical power! This is compared to our 2.8W kit, which at the factory setting only produces 2W of optical power. You will be able to cut and engrave at almost twice the speed!

Absolute Maximum Ratings:

Electrical / Optical Characteristics:

-Note: The beam is slightly rectangular. Focused size specification is for the long axis.

-Above specifications are for reference purposes only and are subject to change. Figures in specifications may contain measurement errors.

We have kept all of the features that make this laser kit awesome – precision laser-trimmed regulators for constant current to the laser, 0.01 tuning resolution, digital isolation, soft start, esd protection, current limiting, and the list goes on. But NOW we have more safety in mind as well! The US Federal Government has a list of things that are required for operating these high power class 4 lasers. They might seem trivial, but they could save your eyesight! Here is a rundown of the new safety features to protect yourself and others:

Key Switch – This key is needed to enable the laser. When the key switch is turned on, the laser is enabled and the key CANNOT come out. You can only remove the key when it is disabled. This feature is good if you have curious children or have your laser in a shared area and want to limit use. Just take the key out and hide it!

Remote Interlocks – This feature allows for the addition of switches to your enclosure so when it is open, the laser will automatically turn off. Also provides for the addition of an E Stop button for the laser, which is always good for if you need to stop the laser super quick! Add as many switches as you want to make a super safe area for your laser machine so nobody can accidentally look into the laser.

Power Fault Protection – This one may seem like it is not needed, but hear us out. Consider your power goes out in your area where the laser is located. You were running your program and then everything is dark… Power doesn’t come back on for awhile… long enough for you to forget that the laser was left ON! You come back and are checking your laser and boom, the power is back on, right when you are looking straight at it. Well, don’t worry because the laser will be disabled whenever the power to the driver is lost. Press the reset button and you are back in action!

Emission Indicator – The small little LED on the front to let you know your really super bright laser is on… They require this in case you are using an infrared invisible laser.

Driver Overview

This is the fourth generation of the popular High Current Laser Diode Driver series. We designed this new generation to follow the federal guidelines for safety compliance for high power Class 4 laser operation. This includes the use of a key enable switch, safety interlock system, power off reset, and laser LED indicators. All of these features make for a safer laser operation and will comply with federal laws regulating such operations.

At the heart of the product are laser trimmed parallel regulators to give constant current without the large temperature dissipation of other regulators. Couple this with inherent safety features like soft starting, current isolation, reverse protection, ESD protection, and thermal shutdown control and you have all you need in a small package.

The high power laser diode driver is cost-effective and easily integrated into industrial, research, or enthusiast projects and products. The driver can be operated in CW mode or in Input Control Mode to be interfaced to remote electronics. This design uses digital isolators for super-fast response and input range while protecting the laser from deadly ground loops. The board has screw terminal connections as well as Molex mini-fit Jr. connectors for easy connections to external equipment for control and the laser diode output.

Features:

• High power current source for driving Laser Diodes and Light Emitting Diodes.
• Current Range of 2.5 Amps.
• Current Ranges are adjustable in 500ma increments.
• Integrated cooling fan
• Soft start for diode protection.
• Reverse diode and ESD protection.
• Thermal Protection and Over Current Protection.
• Federal Compliant Safety Features
• Key switch, Remote Interlock, Power Fault Reset
• Compact Size.
• CW Mode and Input Control Mode.
• Digitally isolated control input.
• Control from CW to 5KHz.
• Configurable Input signal: Inverting /Non-Inverting.
• Multiple connector options for both Laser/LED output and control input.
• LED status lights for input laser enabled and laser on.
