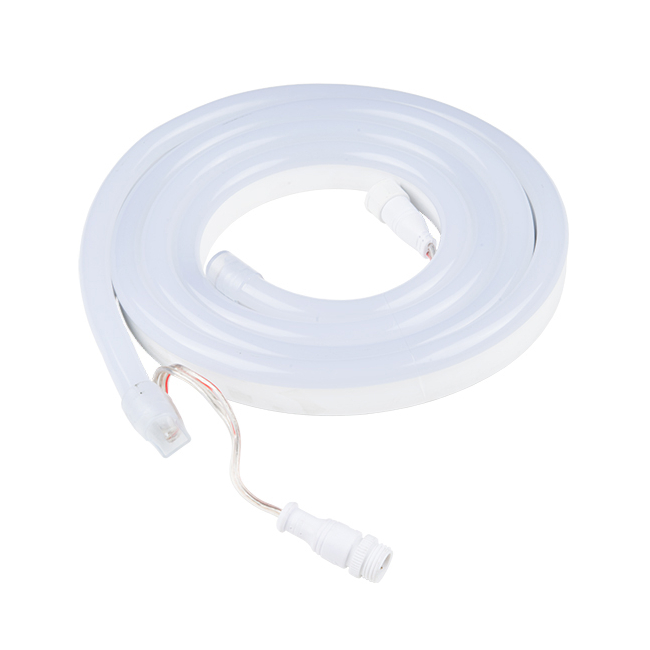

LED Neon Flex Rope

This Neon Flex Rope is a 2m long (~6.5 feet), LED strip that simulates the neon effects you see in storefronts at night. Each rope is packed with 120 5050 RGB LEDs (60 LEDs/m). Though this flexible LED rope does not actually utilize any neon gas, the waterproof (IP65) silicon housing provides a diffused glow similar to those "Open" signs.

Each of these strips needs a 24VDC supply and includes all the connectors and mounting parts you need. The LEDs in the Neon Flex Rope are not individually addressable but there are 10 UCS1903 ICs each meter providing you with 20 addressable segments. You will be able to control the whole LED RGB rope to achieve cool lighting effects for outdoor and indoor uses including in hallways and stairs, holiday lighting and more!

Note: When powering up while only using the VCC and GND wires, the LED Neon Flex Rope will enter Demo Mode.

Includes:

• 1x LED Neon Flex Rope
• 1x Female Bare Wire Connector
• 4x Aluminum Mounting Clip

Features:

• Operating Voltage: 24VDC
• 30 RGB 5050 LEDs/m
• Waterproof Rating: IP65
• Dimensions: 2000mm Long x 25.5mm Tall x 14mm Wide

Documents:

• Hookup Guide
• Datasheet (UCS1903)
• Fast LED Library

Videos
