Luxonis - OAK-1 Lite

1. Product Documentation
2. CE Certificate

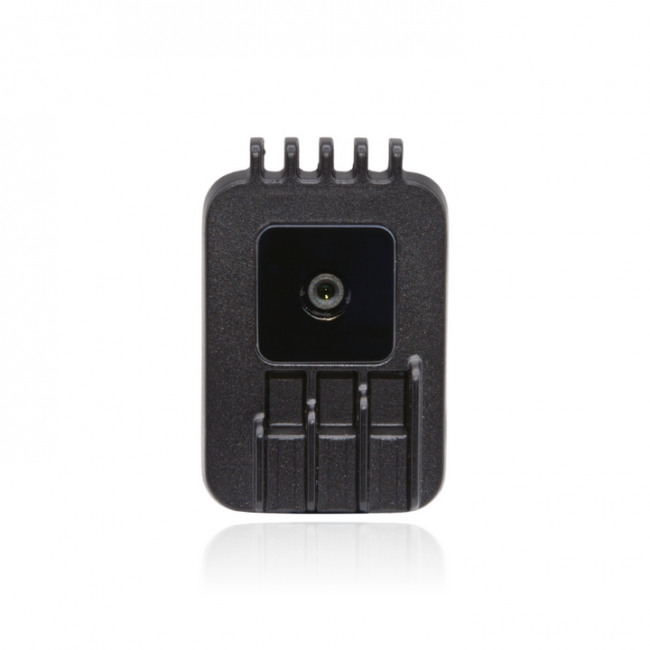

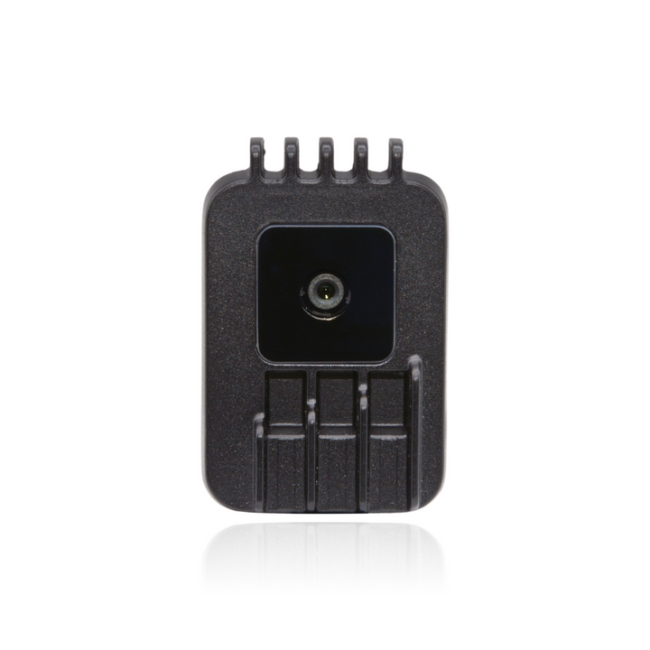

The OAK-1 Lite  is an 13MP AI camera that features on-device Neural Network inferencing and Computer Vision capabilities. It can capture high-resolution images, run custom AI models, and perform advanced computer vision tasks. It uses USB-C for both power and USB3 connectivity.

Main Features:

• 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
• Run any AI model, even custom architectured/built ones (models need to be converted)
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• Object tracking: 2D tracking with ObjectTracker node
• Dimension: 36x54.5x27.8 mm
• Weight: 53.1g

Available in two variants:

The OAK-1 Lite is available in two variants: Fixed-Focus and Auto-Focus. These variants differ only in the configuration of the center color camera. The Fixed-Focus variant has the lens fixed in place mechanically, whereas the Auto-Focus has an electromagnet that controls the lens position dynamically. Both variants can clearly see objects 50 cm and beyond.

• Auto-Focus cameras are recommended for close objects between 8 cm to 50 cm of the device (see video). They can also be manually set to a specific focus position utilizing the DepthAI API.
• Fixed-Focus cameras are recommended for heavy-vibration applications, such as drones, lawnmowers, or vehicles (see video).



Camera Specifications:

Package includes
