Opt Lasers - PLH3D-XT8 Hyper Performance Plug&Play 45W Laser Kit
As low as £1,544.36 £1,286.97
PLH3D-XT8 - World's No. 1 Patented Laser Head Complete Plug&Play Kit for X-Carve CNC Machines
- 5-year Opt Lasers Warranty
- 30-Day Satisfaction Guarantee for Returns
- Lifetime Technical Support
- #1 in Customer Support
- Unmatched Durability and Reliability
- Optional Collision or Laser Head Drop Insurance
- Product Originating from the Laser Head Concept Creator
- Made in Poland, EU
SKU
OL-PLH3D-XT8
PLH3D-XT8 - World's No. 1 Patented Laser Head Complete Plug&Play Kit for Shapeoko & Shapeoko Pro & X-Carve CNC Machines
Looking to upgrade your CNC machine with laser capabilities? Our Hyper-Performance XT8 CNC Cutting and Engraving Laser Heads are the ultimate solution. Crafted by the industry's leading manufacturer and concept creator of laser heads, our impressive XT8 laser heads deliver unparalleled performance.
The PLH3D-XT8 laser head incorporates Opt Lasers' patented multi-laser diode technology, driving its cutting-edge capabilities. This innovative approach ensures unparalleled performance and precision, setting a new standard in laser processing.

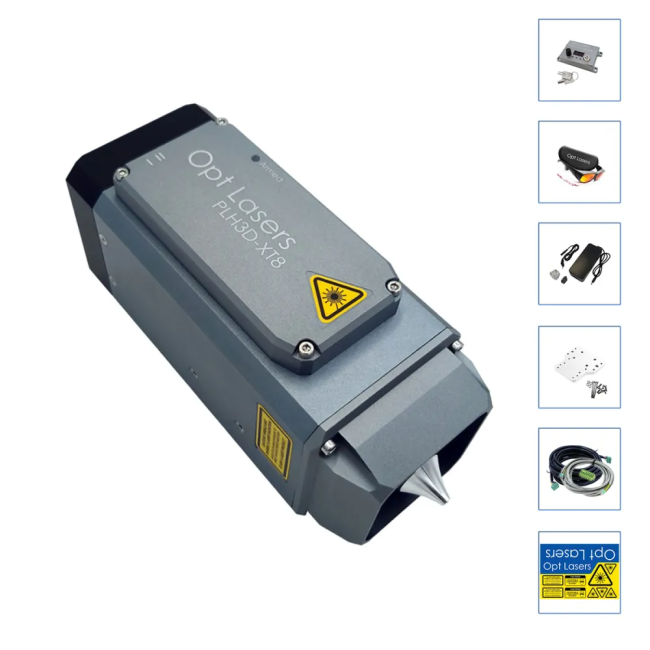

This comprehensive Shapeoko & Shapeoko Pro kit includes all essential components such as Laser Safety Glasses, OptiShield Beam Cover, PLH3D-CNC Adapter Pro, and an aluminum mount for easy integration with Shapeoko & Shapeoko Pro CNC machines. Furthermore, the kit is equipped with Shapeoko & Shapeoko Pro signal cable, signal wires and a PSU, ensuring compatibility with the Shapeoko & Shapeoko Pro CNC controller.
Trust in the best – this kit is your all-in-one Plug&Play package, delivering top-notch performance and hassle-free setup for your machine, from us, Opt Lasers.
Features & Benefits of the PLH3D-XT8 Laser Head
Unmatched Focus Depth: With its remarkable focus depth and extended beam waist, the XT8 eliminates the need for constant adjustments and allows single-pass cutting, speeding up your work.
Precision in Action: The PLH3D-XT8's laser spot size below 200 um allows you to achieve precise details for artistic work and effortlessly cut through materials like 15 mm wood.
Grayscale Engraving and Full-Power Cutting: Switch between two modes: 50% power for detailed engraving or high-speed cutting with 100% power, swiftly adapting to various materials and applications.
Integrated Air-Assist Nozzle: Enhance cutting efficiency with our integrated nozzle. Enjoy up to six times faster cutting speeds and reduced heat-related damage to the processed material.
Copper Heatpipe Heatsink: Our advanced cooling technology ensures optimal cooling performance and great longevity by efficiently conveying heat to an additional heatsink.
Operational Safety: Stay informed with our signaling LED, indicating the laser's armed status and providing overheating alerts for added safety and proper temperature management.
Superfast Built-In Driver: Experience unmatched performance with our integrated driver, ensuring precise engraving and reliable results. The close proximity of the laser diodes to the driver enables high-frequency current modulation.
Full-Metal Body: The laser's housing is fully constructed from durable metal, ensuring robust protection and enhanced longevity for the device.
PLH3D-XT8 Applications Gallery
Built-In Driver with Unmatched Performance - The Heart of The Laser Head
Opt Lasers leads in innovation by being the first to integrate a superfast laser diode driver directly into the cutting and engraving laser head. The built-in driver, the heart of the laser head, ensures enhanced protection for the laser diode. As a manufacturer of laser diode drivers, Opt Lasers has leveraged years of experience to create a highly efficient driver with low power consumption and minimal heat production. This makes using the cutting and engraving lasers at high speeds feasible, even for small details or tight radius turns, thanks to the driver's ability to process all necessary signals swiftly. Moreover, with a maximum driver current of 6A, operating it at 3-4A ensures longevity and reliability, providing an offset for extended driver life.
- Maximum output current capacity: 6 A
- Typical output current: 3-4 A
- Input voltage 24 V
- Integrated microcontroller for temp. measurement and soft start
- Thermal protection system: 45 °C
- Soft start for diode protection
- Electrostatic discharge (ESD) protection
- Reverse voltage protection
- Overcurrent protection
- Compact size and 90% efficiency
- CW Mode and Input Control Mode
- PWM/TTL input
- Status output (5V = OK) input
- Modulation bandwidth 0-30 kHz
Product Technical Specifications
| PLH3D-XT8 | |
| Maximum Optical Power | 45 W |
| Dimensions of Laser Head (L x W x H) | 76 x 89 x 194 mm | (3 x 3,5 x 7,64 in.) |
| Weight of Laser Head, Typ. | 1050g (2.31 lb.) | With LaserDock: 1230g (2.71 lb.) |
| Flow Rate of Fan | 92 m3/h (53 CFM) |
| Fan Noise | 58 dBA |
| Mounting Hole Pattern | 5x 4 holes, 24 x 15 mm | (0.94 x 0.59 in.) |
| Mounting Hole Type | M3 x 0.5 x 3 mm |
| Max. Ambient Temperature | 40°C (104°F) |
| Modulation Input | PWM/TTL, 0 – 24 V |
| Recommended PWM Base Frequency | 1 – 5 kHz |
| Max. Modulation Bandwidth | 30 kHz |
| Modulation Input Impedance | >1 kΩ |
| Power Supply Unit Voltage | 24 V |
| 24 V PSU Min. Current | 8 A |
| Maximum Power Consumption | 170 W |
| Material | Operation Type | Thickness | Speed | Laser Power | Passes |
|---|---|---|---|---|---|
| Wood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Engraving | N/A | 70 mm/s (165 inch/min) | 20% | 1 | |
| Plywood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 3 mm (0.118") | 22.5 mm/s (53.1 inch/min) | 100% | 1 | |
| Cutting | 4 mm (0.157") | 12 mm/s (28 inch/min) | 100% | 1 | |
| Cutting | 6 mm (0.236") | 6 mm/s (14 inch/min) | 100% | 1 | |
| Cutting | 10 mm (0.394") | 3 mm/s (7 inch/min) | 100% | 1 | |
| High-Density Fiberboard (HDF) |
Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 3 mm (0.118") | 12 mm/s (28 inch/min) | 100% | 1 | |
| Medium-Density Fiberboard (MDF) |
Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 7.5 mm (0.295") | 4 mm/s (9.4 inch/min) | 100% | 1 | |
| Balsa | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 12 mm (0.472") | 40 mm/s (94 inch/min) | 100% | 2 | |
| Pinewood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 15 mm (0.591") | 3 mm/s (7 inch/min) | 100% | 1 | |
| Veg-Tan Top-Grain Pigskin Leather |
Engraving | N/A | 3000 mm/s (7090 inch/min) | 100% | 1 |
| Engraving | N/A | 60 mm/s (142 inch/min) | 2% | 1 | |
| Cutting | 2 mm (0.079") | 50 mm/s (118 inch/min) | 100% | 1 | |
| Hard Veg-Tan Full-Grain Cowhide Leather |
Engraving | N/A | 3000 mm/s (7090 inch/min) | 100% | 1 |
| Engraving | N/A | 60 mm/s (142 inch/min) | 2% | 1 | |
| Cutting | 4 mm (0.157") | 18 mm/s (42.5 inch/min) | 100% | 1 | |
| PU (Polyurethane) Faux Leather | Cutting | 2 mm (0.079") | 50 mm/s (118 inch/min) | 100% | 1 |
| White Marble | (Deep) Engraving | N/A | 52 mm/s (120 inch/min) | 100% | 1 |
| Slate | Engraving | N/A | 140 mm/s (330 inch/min) | 100% | 1 |
| Black Acrylic | Cutting | 2 mm (0.079") | 7 mm/s (17 inch/min) | 100% | 1 |
| Cutting | 5 mm (0.197") | 6 mm/s (14 inch/min) | 100% | 3 | |
| Cutting | 10 mm (0.394") | 6 mm/s (14 inch/min) | 100% | 4 | |
| Orange Transparent Acrylic | Engraving | N/A | 220 mm/s (520 inch/min) | 5% | 1 |
| Red Acrylic | Cutting | 2 mm (0.079") | 4.2 mm/s (9.9 inch/min) | 100% | 1 |
| Green Acrylic | Cutting | 2 mm (0.079") | 2.8 mm/s (6.6 inch/min) | 100% | 1 |
| Cotton | Engraving | N/A | 180 mm/s (425 inch/min) | 15% | 1 |
| Jeans | Cutting | 0.5 mm (0.0197") | 255 mm/s (602 inch/min) | 100% | 1 |
| High-Density Reinforced Nylon | Cutting | 3.6 mm (0.142") | 6 mm/s (14.2 inch/min) | 100% | 1 |
| White Polyester | Cutting | 0.2 mm (0.00787") | 60 mm/s (142 inch/min) | 100% | 1 |
| White High-Density Polyester | Cutting | 0.4 mm (0.0157") | 25 mm/s (59 inch/min) | 100% | 1 |
| Cordura | Cutting | 0.35 mm (0.0138") | 150 mm/s (354 inch/min) | 100% | 1 |
| Cutting | 0.5 mm (0.0197") | 95 mm/s (224 inch/min) | 100% | 1 | |
| Felt | Cutting | 4 mm (0.1575") | 70 mm/s (165 inch/min) | 100% | 1 |
| Polyfoam | Cutting | 40 mm (1.575") | 5 mm/s (12 inch/min) | 100% | 1 |
| Cutting | 40 mm (1.575") | 15 mm/s (35 inch/min) | 100% | 3 | |
| EVA Foam | Cutting | 3 mm (0.118") | 140 mm/s (331 inch/min) | 100% | 1 |
| Cutting | 5 mm (0.197") | 85 mm/s (201 inch/min) | 100% | 1 | |
| Polyurethane (PU) Foam | Cutting | 10 mm (0.394") | 88.5 mm/s (209 inch/min) | 100% | 1 |
| Carbon Fiber | Cutting | 0.5 mm (0.0197") | 15 mm/s (35.4 inch/min) | 100% | 1 |
| Glass Fiber | Cutting | 0.7 mm (0.0276") | 5 mm/s (11.8 inch/min) | 100% | 1 |
| Stainless Steel | (Deep) Engraving | N/A | 70 mm/s (165 inch/min) | 25% | 1 |
| (Deep) Engraving | N/A | 280 mm/s (661 inch/min) | 100% | 1 | |
| Marking | N/A | 865 mm/s (2040 inch/min) | 100% | 1 | |
| Tool Steel | (Deep) Engraving | N/A | 70 mm/s (165 inch/min) | 25% | 1 |
| (Deep) Engraving | N/A | 280 mm/s (661 inch/min) | 100% | 1 | |
| Marking | N/A | 865 mm/s (2040 inch/min) | 100% | 1 |
