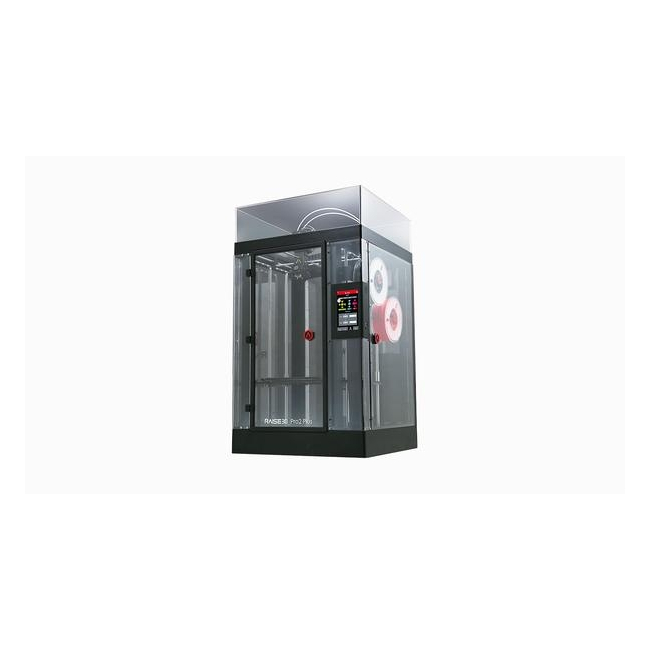

Raise 3D Pro2 Plus 3D Printer
£4,362.00
£3,635.00
Competitive and scaleable; the Pro2 Plus 3D printer improves upon it’s award winning predecessor and provides the next generation of performance.
-
Dual Extruder: Electronic driven lifting, with 4× increased torque performance.
-
Massive Build Volume (12 x 12 x 23.8 in).
-
Diverse Filament Compatibility (300℃).
-
Filament Sensor / Camera / HEPA Filter.
-
Minimum 0.01mm Layer Height.
-
Resume Print after Power Outage.
-
7" Touch Screen.
-
32 Bit Motion Control Board.
-
Wireless Compatibility.
SKU
R3D-PRO2PLUS
Electronic Driven Lifting Dual Extrusion
- Prints the most intricate projects. Expedites works. Multi-material prints.
- High repeatability. (<0.005m, 5 micron).
- Light speed, <1 second switching time.
- 1.5mm lifting distance, compatible with flexible filaments.
- Over 100,000 times reliability test passed.
When Big Is Not Big Enough, here comes the Pro2 Plus
- 24/7 Reliability by High-Strength Aluminum Frame of the Pro2 Plus.
As Hot As 300℃ For Material Compatibility
- PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA
- PP / Glass Fiber Enforced / Carbon Fiber Enforced Metal Particles Filled / Wood Filled
0.01MM Layer Height
- The Pro2 Plus sports a unique motion system for superior part quality and resolution.
- Unmatched layer resolution - 0.01mm layer height
- Interchangeable nozzle - 0.2mm nozzle for finer X/Y spot size
- Precise positioning - 0.78125 micron positioning resolution on X/Y axis
Singular User Experience
- 7-inch touch screen.
- Visual interface / Rapid reviewing / Visual print progress / Full adjustment control
Second Generation Power Loss Resuming
- Never lose a print with the Pro2 Plus.
- “I actually knocked off the power accidentally when i hit the cord when I was vacuuming, I was currently doing a 96 hours print with only 2 hrs left. As I raised my head to scream in terror, I turned back on the machine and it asked me to continue print…THIS WAS A LIFESAVER” by Shon Robinson
Wireless Printing and Control
- Operate efficiently with ideaMaker by connecting wirelessly to your Pro2 Series Printer. Built-in camera.
Next Generation Motion Controller
- Top reliability. Accurate current control. Silky smooth movement. Superior thermal performance.
- 400MHz ARM Cortex-M7 32bit RISC FPU. Industrial grade components. Standalone motor driver. 256 micro-steps driver system.
New Extruder with Filament Run-Out Sensor
- Better grip. No slipping. Safer prints. Dual gear driven. 4× increased torque performance. Fluent and sensitive, optical run-out sensor.
New HEPA Filter
- The Pro2 Plus is office environmentally friendly. Silently protecting our health.
- Absorbs >91% of particles.
New Build Plate System
- Excellent warping prevention. Even heat distribution. Longer lifetime. Steady and simple to use.
- Aerospace grade material. High temperature silicone heating bed. Magnetic hold aluminium bed. Improved 4+9 points lock system.
Specifications
| Build Volume (W×D×H)) | Single Extrusion Print: 12×12×23.8 in / 305×305×605 mm - Dual Extrusion Print: 11×12×23.8 in / 280×305×605 mm |
| Machine Size (W x D x H) | 24.4×23.2×43.5 in / 620×590×1105 mm |
| Print Head | Dual-head with electronic lifting system |
| Filament Diameter | 1.75mm |
| XYZ Step Size | 0.78125 micron |
| Print Head Travel Speed | 30 - 150 mm/s |
| Build Plate | Heated aluminum build plate with magnetic holding |
| Max Build Plate Temperature | 110 ºC |
| Build Plate Material | Silicone |
| Build Plate Levelling | Pre-calibrated levelling |
| Supported Materials | PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / Glass Fiber Enforced Carbon Fiber Enforced // Metal Particles Filled / Wood Filled |
| Nozzle Diameter | 0.2/ 0.4/ 0.6/ 0.8mm |
| Max Nozzle Temperature | 300 ºC |
| Connectivity | Wi-Fi, LAN, USB port |
| Monitoring | Live Camera |
| Operating Sound | 50 dB |
| Operating Temperature | 15-30 ºC |
| Power Supply Input | Universal 100-240 VAC, 50/60 Hz |
| Power Supply Output | 600 Watts, 24 VDC |
Software
| Slicing Software | idealMaker |
| Supported File Types | .stl, .obj |
| Supported OS | WINDOWS/ IOS/ LINUX |
| Machine Code Type | gcode |
| Manufacturer | Raise 3D |
|---|---|
| Feeder System | Direct Drive |
| Operating Sound | 50 dB |
| Leveling Method | Automatic |
| Product Weight | 52kg |
| Print File Type | .stl, .obj |
| Camera Resolution | N/A |
| Camera | Yes |
| Build Volume | Single Extrusion Print: 12×12×23.8 in / 305×305×605 mm - Dual Extrusion Print: 11×12×23.8 in / 280×305×605 mm |
| LCD | N/A |
| Build Surface | Heated aluminum build plate with magnetic holding |
| Printer Enclosure | Closed |
| Printer Footprint | Large (up to 1000 x 1000 mm) |
| Compatible Material | PLA, ABS, PETG, Dissovable, Flexible, Nylon, Wood Fill, PP, ASA, TPE, TPU, HIPS |
| 3D Printing Technology | Filament (FDM/FFF) |
| Filament Thickness | 1.75 mm |
| Printer Condition | preassembled |
| Z Positioning Precision | 0.005m |
| Power | 600 Watts, 24 VDC |
| Connectivity | USB, WIFI, Ethernet |
| Heated Bed | Yes |
| OS Support | WINDOWS/ IOS/ LINUX |
| Software | idealMaker |
| Nozzle Diameter | 0.2 mm |
| Print Speed | 30 - 150 mm/s |
