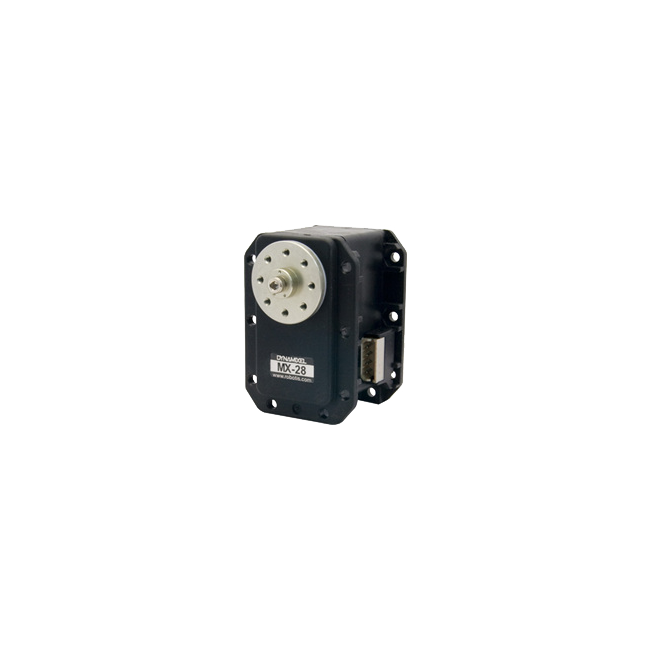

main product photo
Loading...
Robotis - Dynamixel MX-106T Servo (TTL) (Servos)

Robotis - Dynamixel MX-106T Servo (TTL)

Robotis - Dynamixel MX-28T Servo (TTL) - 6pcs Bulk

Robotis - Dynamixel MX-28T Servo (TTL) - 6pcs Bulk

Robotis - Dynamixel MX-28R (RS-485)

Be the first to review this product
£255.70 £213.08
Robotis - Dynamixel MX-28R (RS-485). The Dynamixel MX Series servos feature a contactless (Magnetic) position encoder and PID control for superior accuracy and reliability. The MX series offers 12bit (4096) position resolution and can operate in the 360º range offering 0.008º resolution.
SKU
R-902-0064-000
Add to Wish List Add to Compare
Email

Robotis - Dynamixel MX-28R Servo (RS485)

The Dynamixel MX Series servos feature a contactless (Magnetic) position encoder and PID control for superior accuracy and reliability. The MX series offers 12bit (4096) position resolution and can operate in the 360º range offering 0.008º resolution.

Dynamixel Servos are connected using a Daisy Chain mechanism and are queried and controlled with an advanced Serial protocol. Over 50 Read/Write parameters are available including Position feedback, Load feedback and PID tuning.




12-bit resolution, 360º operation range with super-durability

Precise and reliable PID control

Maxon motor, 32-bit controller, high communication speed. The dimensions are compatible with RX and EX series servos



Specifications:



Model MX-28R model - RS485 level communication.
Weight 72g
Dimension 35.6mm x 50.6mm x 35.5mm
Gear Ratio 193 : 1
Operation Voltage (V) 10 12 14.8
Stall Torque (N.m) 2.3 2.5 3.1
Stall Current (A) 1.3 1.4 1.7
No Load Speed (RPM) 50 55 67
Motor Maxon Motor
Minimum Control Angle About 0.088º x 4,096
Operating Range - Position Control Mode : 360º
- Wheel Mode : Endless turn
Operating Voltage 10~14.8V (Recommended voltage : 12V)
Operating Temperature -5ºC ~ 80ºC
Command Signal Digital Packet
Protocol Half duplex Asynchronous Serial Communication
(8 bit, 1 stop, No Parity)
Link (physical) RS485 level Multi Drop Bus
(daisy chain type connector)
ID 254 ID (0~253)
Baud Rate 8000bps ~ 4.5Mbps
Feedback Functions Position, Temperature, Load, Input Voltage, etc.
Material Case : Engineering Plastic
Gear : Full Metal
Position Sensor Contactless absolute encoder (Magnetic Encoder)

By default MX servos are set to ID1 and 57600bps; after purchase,
please change ID and baud rate according to your needs.



Compatible Frames and Horns Compatibility Chart
Drawings 2D and 3D
e-Manual http://support.robotis.com
Speed VS Torque Graph Download Graph


Software / Control Environment

  • Software for Dynamixel control : ROBOPLUS - Download
  • C/C++, C#, Labview, MATLAB, Visual Basic et. : Library – Download



Kit contents

Description Qty
Servo MX-28R 1
HORN HN07-N101 1
WASHER Thrust Washer 1
CABLE 3P Cable 200mm 1
BOLT/NUT      Wrench Bolt M2.5*6      16pcs
Wrench Bolt M2.5*8 1
Wrench Bolt M2*3 10pcs
Nut M2.5 18pcs



Compatible horns and frames
