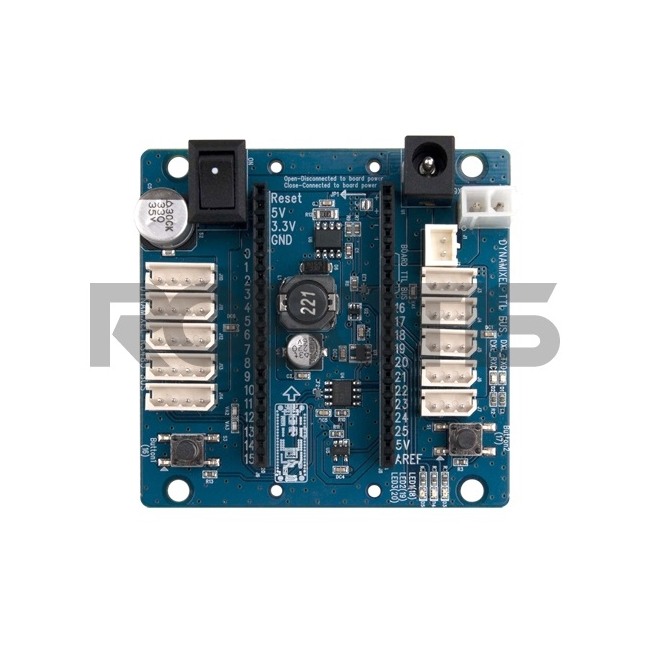

Robotis - OpenCM 485 Expansion Board

The OpenCM 485 Expansion Board connects to the OpenCM9.04 controller to connect Dynamixels that support RS-485 and TTL. Battery connectors for batteries such as LIPO and Li-ion can be connected, and SMPS connector can be connected as well.

Hardware Specifications

• Size: 68 mm X 66.5 mm x 16 mm
• Weight: 32 g
• Input Voltage: 5~30V
• Power: SMPS, LIPO, DXL PRO 24V
• Power Switch: 1
• DYNAMIXEL Port: 4Pin x 5, 3Pin x 5
• Button: 2
• LED: 5
