SparkFun MicroMod Main Board - Double

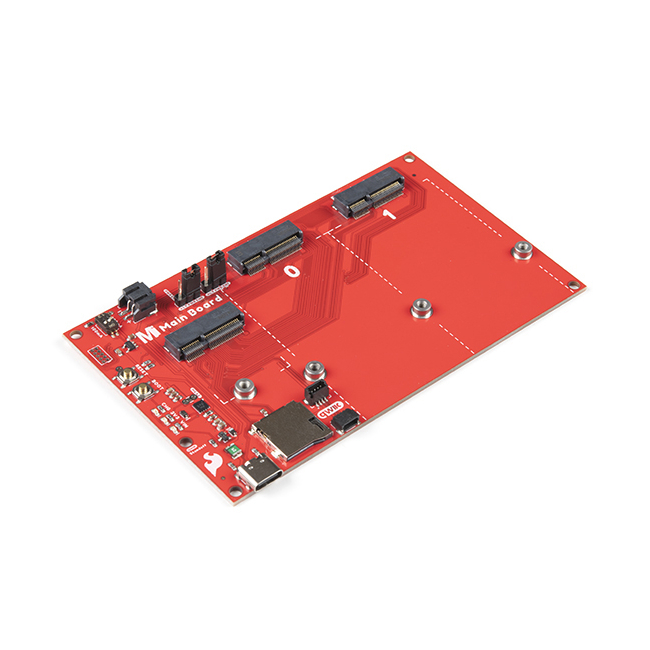

The MicroMod Main Board is a specialized carrier board that allows you to interface a MicroMod Processor Board with up to two MicroMod Function Boards. With the M.2 MicroMod connector, connecting your Processor and Function Boards is a breeze. Simply match up the key on your board's beveled edge connector to the key on the M.2 connector and secure the boards with screws.

The Double Main Board includes one USB-C connector for power and programming the Processor Board. Two buttons for reset and boot are also populated on the board. Also included on the board is a 2A resettable fuse and 3.3V/1A voltage regulator. We've even added a convenient jumper for advanced users looking to bypass the fuse and another to measure the current consumption for low power testing. For those that need to go remote with their application, the board includes a 2-pin JST connector and a single cell LiPo MCP73831 charge IC (set to a rate of 500mA). Three status LEDs are available for power and charging. There is a microSD card socket so you can also plug in a microSD card for data logging. Finally, two Qwiic connectors are populated on the board to easily add Qwiic enabled I²C devices to your projects!

Note: A MicroMod Processor and Function Boards are not included with the MicroMod Main Board. These boards will need to be purchased separately.

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board" peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors and function boards on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Includes:

• 1x MicroMod Main Board - Single
• 4x Phillips #0 M2.5x3mm Screws
• 2x 2-pin Jumper Shunts

Features:

• Input Voltage Range
  • 5V via USB C Connector
  • ~3.7V to 4.2V via LiPo Battery Connector
• Built-in Resettable PTC Fuse (Rated 5V/2A)
• AP7361C 3.3V Voltage Regulator (Rated 1A)
• Integrated MCP73831 Single Cell LiPo Charge Circuit
  • Adjustable Charge Rates via DIP Switch
    • 100mA
    • 166mA
    • 500mA
• Ports
  • 1x USB Type C Connector
  • 1x 2-Pin JST Connector
  • M.2 Connectors
    • 1x MicroMod Processor Board
    • 2x MicroMod Function Boards
  • 2x Qwiic Enabled I²C
  • 1x MicroSD Card Socket
  • 1x SWD 2x5 Header
• Buttons
  • 1x Reset
  • 1x Boot
• LEDs
  • 1x VIN
  • 1x 3.3V
  • 1x CHG
• Jumpers
  • MEAS
  • PTC
  • 3.3V EN (for Main Board)
  • VIN LED
  • 3.3V LED
  • Alt PWR EN0 (for Function Board 0)
  • Alt PWR EN0 (for Function Board 1)

Documents:

Hardware Documentation:

• Schematic
• Eagle Files
• Board Dimensions
• Hookup Guide
• Qwiic Info Page
• GitHub Hardware Repo

MicroMod Documentation:

• Getting Started with MicroMod
• Designing with MicroMod
• MicroMod Info Page
• MicroMod Forums
