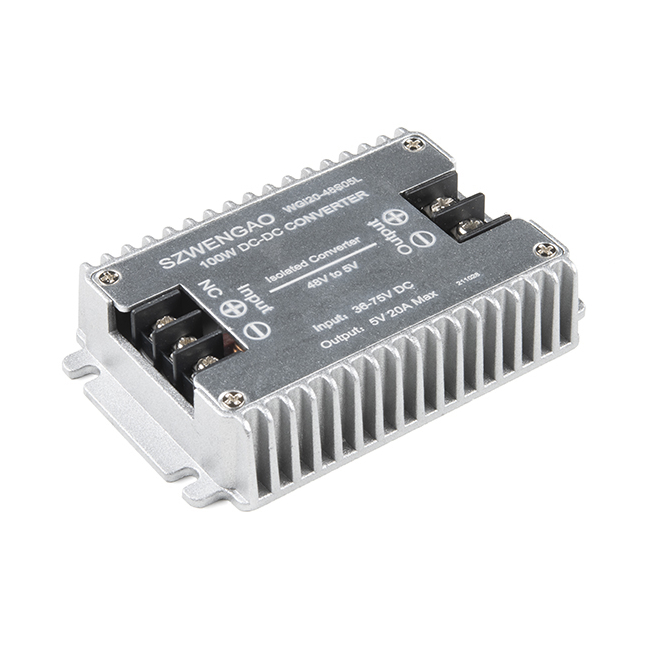

Step-Down DC/DC Converter - 36-75V to 5V/20A

This is an isolated DC-DC converter that accepts 36-72VDC and outputs 5VDC and 20A. Its high efficient, isolated design makes it perfect for powering low voltage devices off of high power batteries or power sources.

The device comes in an IP65 rated enclosure for robust use cases and features a number of safety considerations such as Over-temperature protection, Ouput Over-voltage protection, and Reverse-voltage protection.

Features:

• Input Voltage: 36-75V DC (78V Max)
• Max Input Current: 4A
• Output Voltage: 5V DC
• Output Current: 20A
• Efficiency: 91%
• Voltage Regulation: ±2%
• Regulator Accuracy: ±2%
• Ripple and Noise: 30 mVp-p
• IP65 Rated Enclosure
• Dimensions: 110mm x 70mm x 23mm
• Weight: 250g
• 2 Year Manufacturer's Warranty

Documents:

• Datasheet
