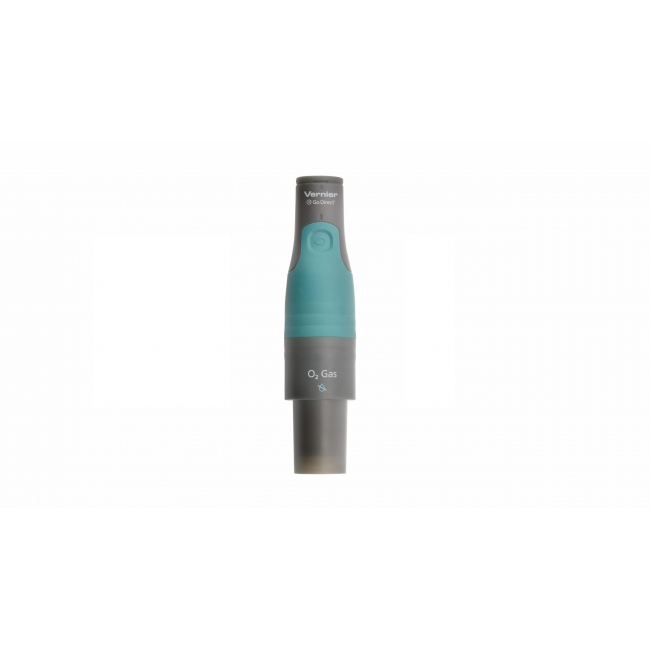

Vernier - Go Direct® O2 Gas Sensor

The Go Direct O₂ Gas Sensor measures gaseous oxygen concentration and air temperature. This sensor has a wide measurement range, which is ideal for studying human and cellular respiration. A 250 mL Nalgene bottle is included for running controlled experiments with small plants and animals.

The Go Direct O₂ Gas Sensor can be used in a variety of experiments:

• Test catalase activity under various conditions.
• Measure oxygen consumption at rest and after exercise.
• Measure the change in gas produced during photosynthesis.
• Compare the rates of cell respiration in germinating and non-germinating peas.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our award-winning Vernier Graphical Analysis^® app, as well as LabQuest^® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook^™, or computer using our Vernier Graphical Analysis^® app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth^® wireless technology, allowing you to choose the best solution for your classroom or laboratory.

Specifications

• Oxygen Sensor
  • Cell type: Electrochemical cell
  • Range: 0–100% (0–1000 ppt) O₂
  • Accuracy (at standard pressure 760 mm Hg): ±1% O₂
  • Resolution: 0.01% O₂
• Temperature Sensor
  • Type: Thermistor
  • Accuracy: ±0.5°C
  • Resolution: 0.1°C
• Dimensions
  • Sensor tube length: 38 mm
  • Sensor tube diameter: 28 mm
  • Total length: 155 mm
• Connections
  • Wireless: Bluetooth
  • Wired: USB

Experiments

High School (19 experiments)

College (19 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest

Compatibility Notes

1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Computers

Compatibility Notes

1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth^® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected via Wireless Data Sharing.
2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Chromebook

iOS

Compatibility Notes

1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth^® connection for best results.
2. iOS and Android^™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Android

Compatibility Notes

1. iOS and Android^™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
2. Connect this sensor directly to a supported mobile device via a wireless Bluetooth^® connection for best results.
3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Python

Javascript

Compatibility Notes

1. A wireless Bluetooth^® connection can be made with Go Direct sensors on any platform running a browser with WebBluetooth support. However, only a few operating systems have been tested and testing has been limited.

Arduino

LabVIEW

What's Included

• Go Direct^® O₂ Gas Sensor
• Micro USB Cable
• 250 mL Nalgene Bottle w/Lid
