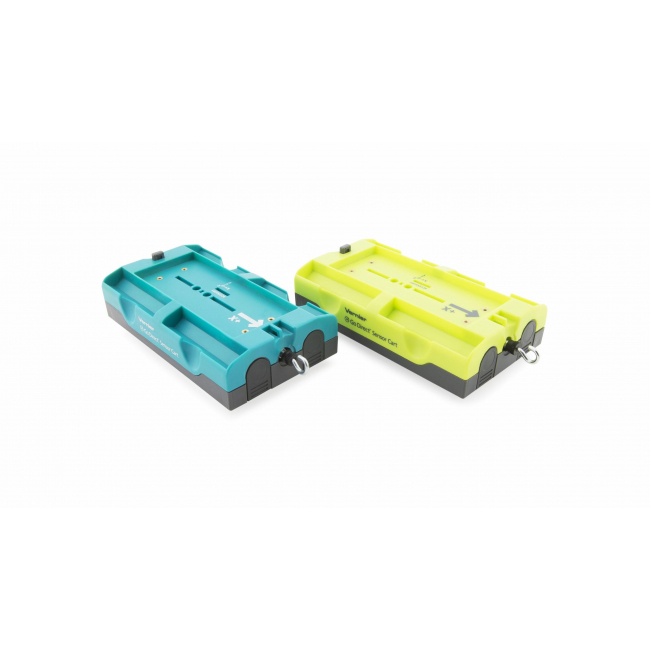

Vernier - Go Direct® Sensor Cart - Yellow
£341.50
£284.58
Choose a platform below to see its compatibility requirements.
SKU
VER-GDXCARTY
Specifications
- Position resolution: 0.25 mm, reported by default at 1 mm steps
- Force range: ±50 N
- Accelerometer range: ±160 m/s2
Experiments
Middle School (18 experiments)
| Experiment | Lab Book |
|---|---|
| Investigating Friction | Exploring Motion and Force with Go Direct® Sensor Cart |
| Levers as Machines | Exploring Motion and Force with Go Direct® Sensor Cart |
| Pulleys as Machines | Exploring Motion and Force with Go Direct® Sensor Cart |
| Ramps as Machines | Exploring Motion and Force with Go Direct® Sensor Cart |
| Getting Faster | Exploring Motion and Force with Go Direct® Sensor Cart |
| Crash Test | Exploring Motion and Force with Go Direct® Sensor Cart |
| Newton's Second Law | Exploring Motion and Force with Go Direct® Sensor Cart |
| Speeding Up | Exploring Physical Science |
| Frictional Forces | Middle School Science with Vernier |
| First-Class Levers | Middle School Science with Vernier |
| Pulleys | Middle School Science with Vernier |
| Speeding Up | Middle School Science with Vernier |
| Frictional Forces | Physical Science with Vernier |
| First-Class Levers | Physical Science with Vernier |
| Pulleys | Physical Science with Vernier |
| Speeding Up | Physical Science with Vernier |
| Crash Lesson | Physical Science with Vernier |
| Newton's Second Law | Physical Science with Vernier |
High School (8 experiments)
| Experiment | Lab Book |
|---|---|
| Springs Making Things Move | Physics Explorations and Projects |
| Impulse and Momentum | Physics Explorations and Projects |
| Frictional Forces | Physical Science with Vernier |
| First-Class Levers | Physical Science with Vernier |
| Pulleys | Physical Science with Vernier |
| Speeding Up | Physical Science with Vernier |
| Crash Lesson | Physical Science with Vernier |
| Newton's Second Law | Physical Science with Vernier |
College (2 experiments)
| Experiment | Lab Book |
|---|---|
| Springs Making Things Move | Physics Explorations and Projects |
| Impulse and Momentum | Physics Explorations and Projects |
Requirements
Choose a platform below to see its compatibility requirements.
LabQuest
| Interface | LabQuest App |
|---|---|
| LabQuest 3 | Full support |
| LabQuest 2 | Full support 1 |
| LabQuest | Incompatible |
Compatibility Notes
- Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.
Computers
| Software | ||
|---|---|---|
| Interface | Graphical Analysis | Graphical Analysis (Web App) |
| No interface required | Full support | Full support |
| LabQuest 3 | Full support 1 | Incompatible |
| LabQuest 2 | Full support 1 2 | Incompatible |
Compatibility Notes
- Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected via Wireless Data Sharing.
- Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.
Chromebook
| Software | |
|---|---|
| Interface | Graphical Analysis (Web App) |
| No interface required | Full support |
iOS
| Software | ||
|---|---|---|
| Interface | Graphical Analysis | Graphical Analysis GW |
| No interface required | Full support | Full support |
| LabQuest 3 | Full support 1 2 | Full support 1 2 |
| LabQuest 2 | Full support 1 2 3 | Full support 1 2 3 |
Compatibility Notes
- Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
- iOS and Android™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
- Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.
Android
| Software | ||
|---|---|---|
| Interface | Graphical Analysis | Graphical Analysis GW |
| No interface required | Full support | Incompatible |
| LabQuest 3 | Full support 1 | Full support 1 |
| LabQuest 2 | Full support 1 2 | Full support 1 2 |
Compatibility Notes
- iOS and Android™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
- Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.
Python
| Software | |
|---|---|
| Interface | Python |
| No interface required | Full support |
Javascript
| Software | |
|---|---|
| Interface | Javascript |
| No interface required | Full support 1 |
Compatibility Notes
- A wireless Bluetooth® connection can be made with Go Direct sensors on any platform running a browser with WebBluetooth support. However, only a few operating systems have been tested and testing has been limited.
Arduino
| Software | |
|---|---|
| Interface | Arduino |
| Arduino UNO R4 WiFi | Full support |
LabVIEW
| Software | |
|---|---|
| Interface | NI LabVIEW |
| No interface required | Full support |
What's Included
- Go Direct® Sensor Cart (Green or Yellow)
- Hook-and-pile tabs (2)
- Magnet tabs (2)
- Flat-top rubber bumper
- Anti-roll peg
- Empty tabs (4)
- Micro USB Cable
| Manufacturer | Vernier |
|---|
