Weather Meter Kit

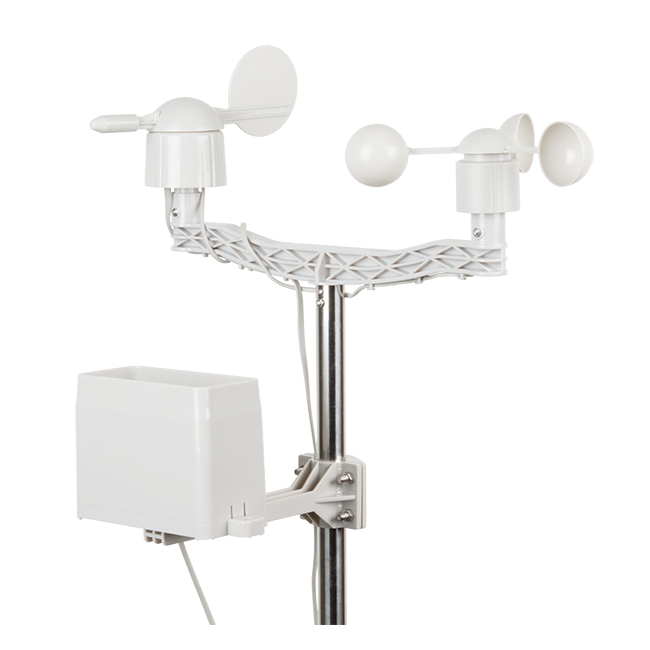

Whether you're an agriculturalist, a professional meteorologist or a weather hobbyist, building your own weather station can be a really rewarding project. When you're measuring weather, however, you need some pretty specialized sensors. This kit represents the three core components of weather measurement: wind speed, wind direction and rainfall.

None of the sensors in this kit contain active electronics, instead they use sealed magnetic reed switches and magnets so you'll need to source a voltage to take any measurements. The positive side of this is that the sensors are easy to interpret:

The rain gauge is a self-emptying bucket-type rain gauge which activates a momentary button closure for each 0.011" of rain that are collected. The anemometer (wind speed meter) encodes the wind speed by simply closing a switch which each rotation. A wind speed of 1.492 MPH produces a switch closure once per second. Finally, the wind vane reports wind direction as a voltage which is produced by the combination of resistors inside the sensor. The vane’s magnet could potentially close two switches at once, allowing up to 16 different positions to be indicated, but we have found that 8 positions are more realistic.

All of the included sensors are supplied with RJ11 terminated cables, for information on the pin-out of the cable, check out the datasheet.

Note: Some basic assembly is required.

Includes:

• Wind Vane
• Cup Anemometer
• Tipping Bucket Rain Gauge
• Two-Part Mounting Mast
• Rain Gauge Mounting Arm
• Wind Meter Mounting Bar
• 2 x Mounting Clamps
• 4 x Zip Ties

Documents:

• Datasheet
• Assembly Guide
