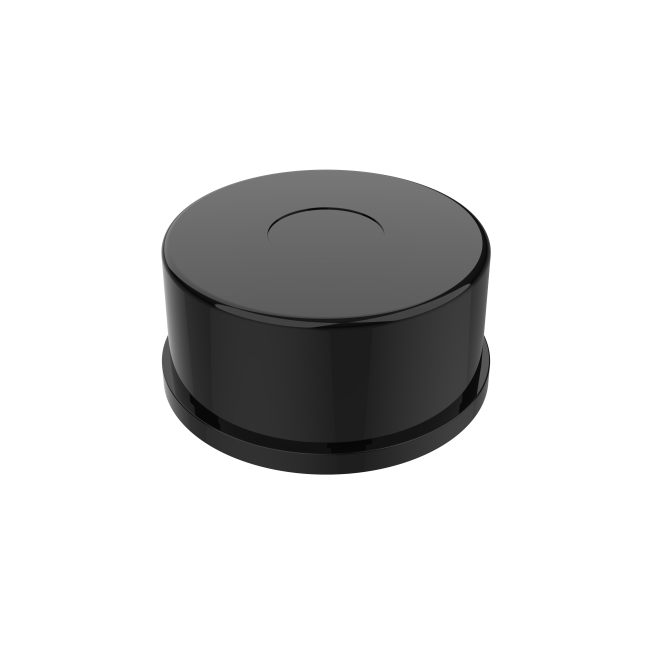

YDLIDAR TG Series

As low as £379.20 £316.00

UK WAREHOUSE 0 in stock, available to order.
SKU
YD-TG
Brand
YDLIDAR
Customize YDLIDAR TG Series

* Required Fields

Your Customization
YDTG
YDLIDAR TG Series

In stock

£379.20 £316.00

Summary

    YDLIDAR TG is a 360-degree two-dimensional rangefinder (hereinafter referred to as TG) developed by YDLIDAR team. Based on the principle of TOF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement.

    The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.


    Range FrequencyScan FrequencyRange DistanceScan AngleAngle ResolutionSize
    TG1520000Hz5-15Hz0.05-15m360°0.09°-0.22°Φ70*35mm
    TG3020000Hz5-15Hz0.05-30m360°0.09°-0.22°Φ70*35mm
    TG5020000Hz5-15Hz0.05-50m360°0.09°-0.22°Φ70*35mm

    Product Features

  • 360 degree omnidirectional scanning ranging distance measurement
  • Small distance error, stable performance and high accuracy
  • IP65 protection level
  • Strong resistance to ambient light interference
  • Industrial grade brush-less motor drive for stable performance
  • Laser power meets Class I laser safety standards
  • 5-12Hz adaptive scanning frequency (support customization)
  • Photomagnetic fusion technology to achieve wireless communication, wireless power supply
  • Ranging frequency up to 20kHz (support customization)

  • Applications

  • Robot navigation and obstacle avoidance
  • Industrial automation
  • Robot ROS teaching and research
  • Regional security
  • Smart transportation
  • Environmental scanning and 3D reconstruction
  • Commercial robot /Robot vacuum cleaner

  • TOF(Time of Flight) ranging technology

    which is ranging by the time difference of laser emitting and receiving,

    the ranging precision of TOF lidar does not change with distance,

    and even have higher accuracy for farther objects ranging.


    360 degree omnidirectional scanning

    Range module inside rotates 360 degree to obtain surrounding information.


    compact structure, suitable for integration

    Flat and thin, with height of just 3.5cm,

    it has greatly optimized the structure of integrated products.


    Enclosed housing, IP65 proof level

    Enclosed design to protect core range module,

    enabling range in complex applications outdoors.


    Applications

    Mapping
    Obstacle Avoidance
    Navigation
    Screen Interaction
    Autonomous photogrammetry
    Regional security

    More Information


    TG15

  • Data Sheet
  • User Manual

  • TG30

  • Data Sheet
  • User Manual

  • TG50

  • Data Sheet
  • User Manual
