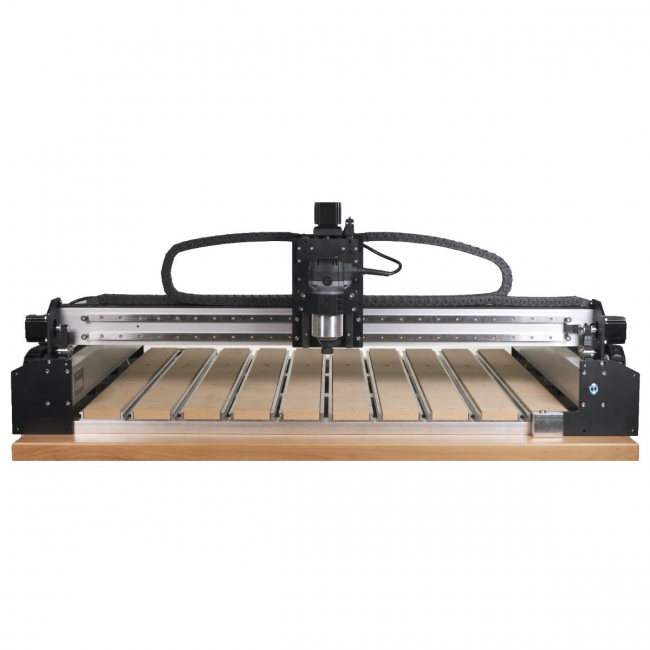

Carbide 3D - Shapeoko Pro CNC Router XXL

Hybrid Table

Shapeoko Pro is built on our Hybrid Table, and the same Hybrid Table is available as an option for the Shapeoko 4. It acts as a rigid base for the machine and a very flexible workholding system.

Structurally, it’s made from a grid of custom-made extrusions that create a solid platform to build a CNC router on.

The Hybrid Table has a series of T-slots to hold clamps, vises, or the material being cut directly.

Between the T-slots, there are sacrificial MDF slats for your material to rest on.

Workholding Included

Shapeoko 4 and Pro come with a dirty dozen of our Teez-Nutz and six of our fiber-reinforced nylon Essential Clamps that won’t break your cutter if they get hit.

When paired with our Hybrid Table, this is everything you need to hold down many common materials but we have plenty of other options if you find that you want something more specialized.

• Tiger Claw Clamps
• Gator Tooth Clamps
• Lock Stops
• Corner-Square

Dust Collection Included

Shapeoko includes Sweepy V2 dust boot to help keep your Shapeoko CNC router, and your shop, as clean as possible. It works with a range of hose diameters for maximum compatibility with your vacuum:

• 2.5” Direct hose
• 2.25” Shop vacuum
• 36mm Festool/Fein

Sweepy V2 also includes an additional brush-free base if you want maximum visibility at the expense of a little dust.

BitSetter Included (PRO ONLY)

Shapeoko Pro has a built-in BitSetter, the system that makes tool changes a breeze by automatically tracking changes to tool length.

Out of every accessory we’ve ever made, the BitSetter is our favorite.

BitSetter is available as an add-on for Shapeoko 4 here.

Carbide Create 2D CAD/CAM

Carbide Create is Carbide's 2D CAD/CAM computer program for your Windows or Mac. Carbide Create lets you design your projects and then define the toolpaths to actually cut them out. You can start with a blank page, load a DXF or SVG file, or load an image to trace automatically.

The best part is that Carbide Create is totally free so you can try it out today.

Carbide Motion

Carbide Motion loads gcode, the industry standard for CNC routers, and makes the machine follow that motion.

We follow common gcode standards so you can generate your projects in Carbide Create or any other CAD/CAM program that uses normal gcode. We don’t lock you into our CAD/CAM software.

CutRocket- Projects Ready-to-Cut

If you’d like to start with complete projects that others have shared, we’ve got our CutRocket CNC project sharing site.

Unlike other project sharing sites, CutRocket is only for CNC projects so you won’t find a bunch of stuff made for 3D printers.

Download projects and start cutting right away.

(We’re sure that you’ll be uploading your own projects in no time.)

15mm Linear rails on every axis

Linear rails provide greater rigidity than V-wheels.

15mm Belts

Our new, wider belts are over 60% stiffer than the 9mm belts used in Shapeoko 3.

Inductive homing

No moving parts and no contact mean these switches are more durable in even the roughest environments.

New electronics

A shop is a difficult place for precision equipment but our new V3 electronics are more resistant to electromagnetic interference and static discharge than ever.

Integrated T-slot table

The Hybrid Table on Shapeoko Pro gives you almost unlimited workholding options right out of the box.

Fully-supported Y extrusions

Our extrusions have always been overbuilt, even for a much bigger machine, but the Y extrusions are now fully supported by the Hybrid Table, making Shapeoko Pro a much more rigid machine than anything we've ever made before.

Integrated BitSetter

The BitSetter makes tool changes a breeze. You'll never want to go back to a machine without it.

Leadscrew-driven Z-axis

Shapeoko Pro uses our Z-Plus Z-axis assembly that's leadscrew-driven with heavy-duty linear bearings.

Precision-machined aluminum end plates

New, more rigid 65mm router mount

We made the router mount thicker to reduce deflection of the router during heavy cuts.
