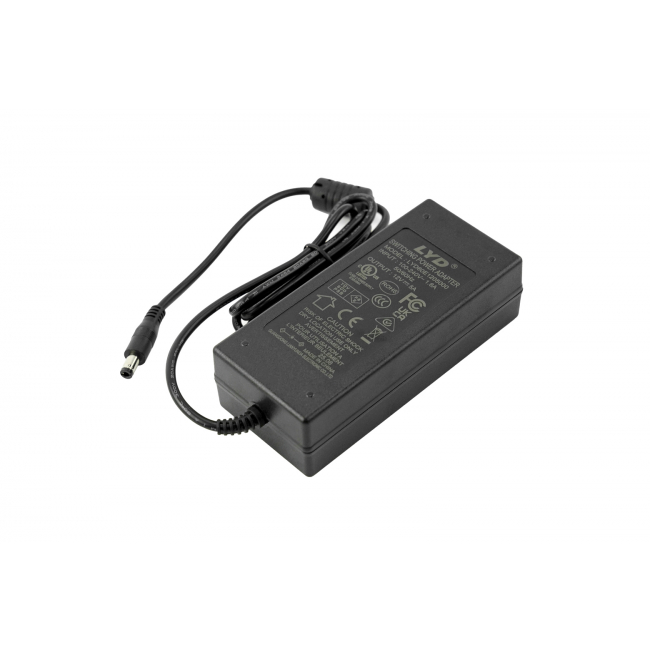

DFRobot - 12V 60W AC/DC Power Adapter for LattePanda Mu / Mu Ultra

This 12V 60W AC/DC Power Adapter is a high-quality and flexible power solution. It comes with three interchangeable plugs (US, EU, and UK standards), making it suitable for power outlets worldwide. It is designed to deliver stable and reliable power for user's devices.

With a wide AC input voltage range of 100-240V and a steady DC output of 12V 60W, this adapter is not only compatible with the LattePanda Mu Carrier board / Mu Ultra Carrier Board, but also efficiently powers a variety of other compatible 12V devices, ensuring consistent and smooth performance.

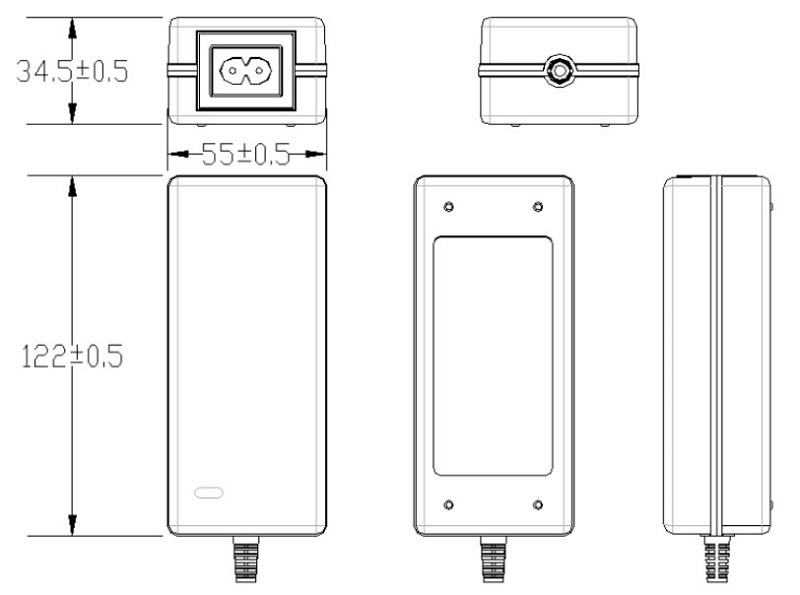

Figure: Dimension of 12V 60W AC/DC Power Adapter

Note: Before plugging or unplugging LattePanda board, LattePanda Mu / Mu Ultra Carrier Board, or any other devices, as well as any cables or any internal interfaces, it is essential to disconnect the power source.

• Rated Voltage: 12V
• Rated Power: 60W
• Rated Current：5A
• Input Voltage: 100~240V/50~60Hz
• Output Voltage: 11.4V ~ 12.6V when the load is 0A ~ 5A steadily
• Operating Temperature: 0~40°C
• Storage Temperature: -20~80°C
• Dimensions(Adapter): 122mm * 55mm * 34.5mm
• DC Cable Length：1200mm
• Power Cord Length：500mm
• Certifications: FCC, CE, UKCA, CCC, PSE, SAA, UL, ROHS

• 12V 60W AC/DC Power Adapter x1
• US Standard Figure-8 Power Cable x1
• EU Standard Figure-8 Power Cable x1
• UK Standard Figure-8 Power Cable x1
