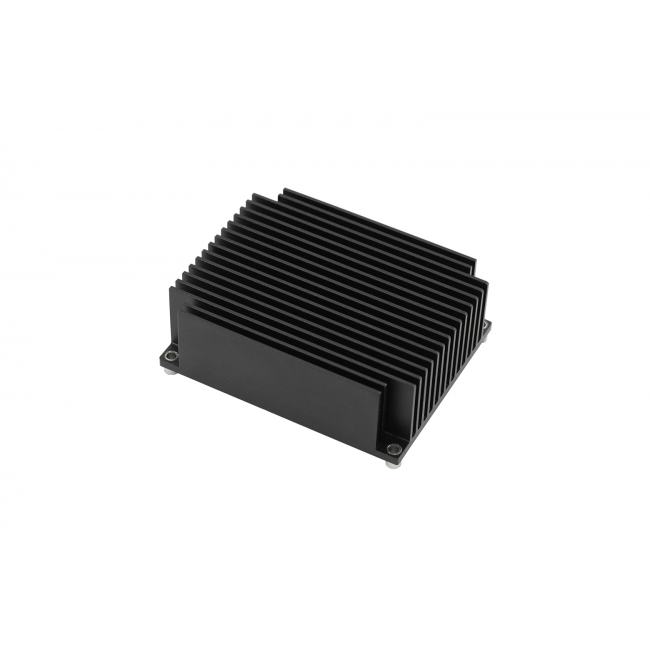

DFRobot - Aluminum Fanless Passive Heatsink for LattePanda IOTA

The LattePanda IOTA Fanless Heatsink is a passive cooling solution specifically designed for the LattePanda IOTA. Made from high-quality aluminum alloy with a thickened design, it significantly enhances thermal capacity and heat dissipation area through its expanded volume and precision-machined fins.

Coupled with the included high-performance thermal paste, it ensures efficient heat transfer from the processor and uniform distribution across the entire heatsink.

Its fully passive, zero-noise construction and robust build provide reliable cooling stability for the LattePanda IOTA during continuous high-performance operation.

Installation steps:

1. Apply an even layer of thermal paste to the processor.

2. Mount it onto the back of the LattePanda board and secure with screws and standoffs.

Figure: LattePanda IOTA and Fanless Heatsink

Note:

• 1. This fanless heatsink is designed exclusively for use with the LattePanda IOTA.
• 2. When installing or removing the heatsink, the LattePanda IOTA must be powered off.
• 3. While in use, please avoid direct contact between your skin and the heatsink to prevent burns.

• Compatible: LattePanda IOTA
• Heat Dissipation Capacity: TDP 10W, Ambient Temperature 25℃, Heatsink Temperature Rise 40°C
• Dimensions: 87.0*69.4*31.5mm
• Material: Aluminum Alloy
• Weight: 203g (Heatsink Only)

• LattePanda IOTA Fanless Heatsink x1
• Heatsink Accessory Kit x1
