DFRobot - 4K USB Camera Module with Sony IMX274 Sensor (1/2.5" Large Sensor, 97° FOV)

IMX274 4K 8MP 1/2.5" 3.25mm 97° USB UVC Camera is a high-end imaging module for developers who need 4K detail with a balanced wide perspective. Based on a 1/2.5-inch large-format CMOS sensor, this USB UVC camera delivers 8MP 3840×2160 resolution at 30FPS. The 97° field of view, driverless USB 2.0 architecture, and strong color fidelity make the board suitable for AI computer vision, indoor surveillance, video conferencing, and professional maker systems that need dependable imaging, efficient integration, and clear visual output.

Balanced 97° Field of View for Practical Coverage

The 3.25mm lens provides a 97° field of view, giving this 4K USB camera enough width for most indoor and embedded vision scenes without significant distortion. The balanced perspective is useful for monitoring, conferencing, robot vision, and general-purpose AI camera systems where image geometry and scene coverage must both remain practical. This supports dependable camera integration for prototypes, demonstrations, and compact embedded vision deployments.

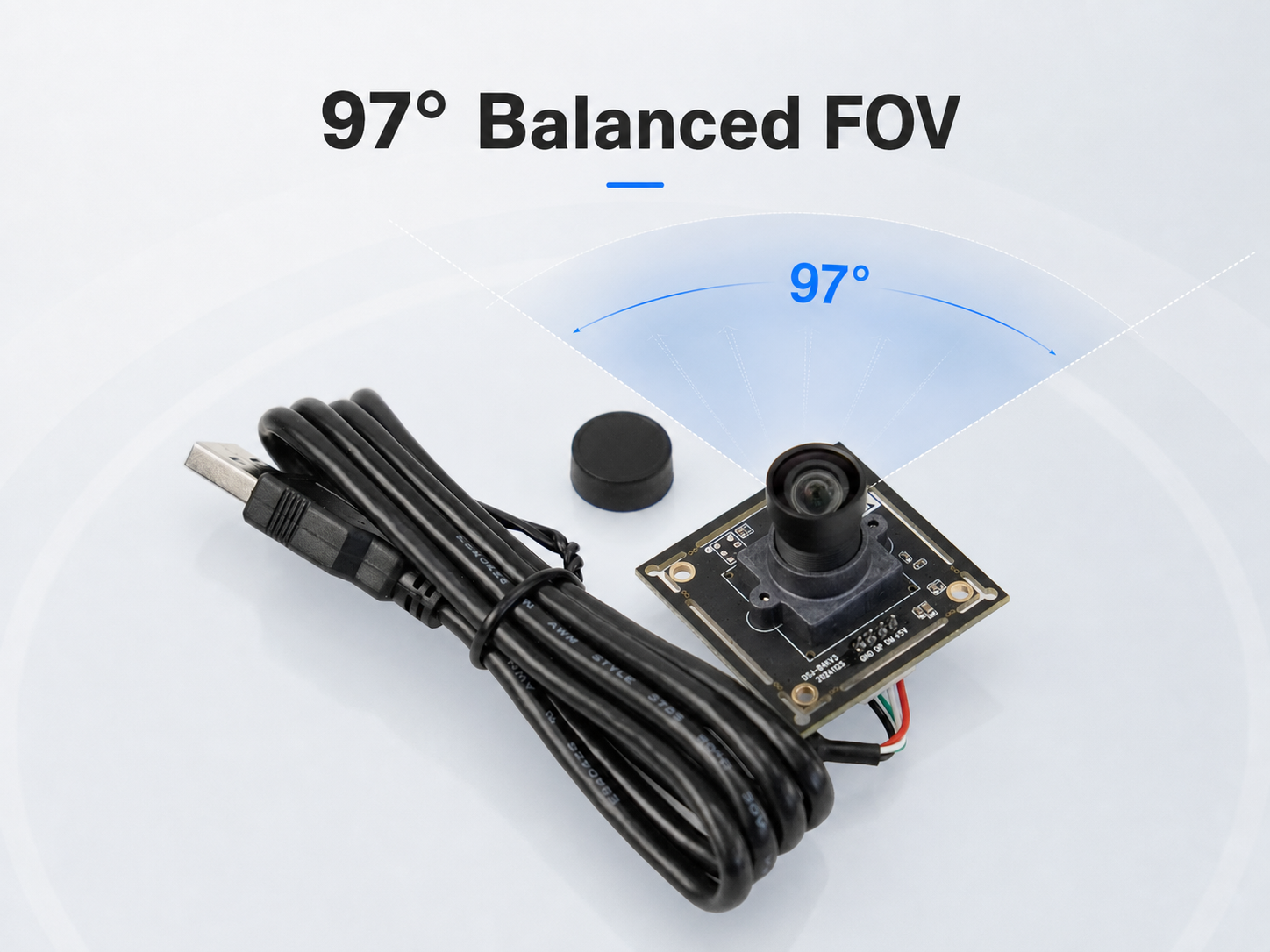

Figure: IMX274 97 degree USB camera

Large-Format IMX274 Sensor for Clear 4K Imaging

Equipped with a 1/2.5-inch CMOS imx274 8MP sensor, the high-definition camera module captures 3840×2160 video at 30FPS. The larger sensor format helps improve low-light performance and color fidelity, producing sharp, vibrant imagery for AI computer vision, high-definition indoor surveillance, and professional maker projects that need dependable visual input. This supports dependable camera integration for prototypes, demonstrations, and compact embedded vision deployments.

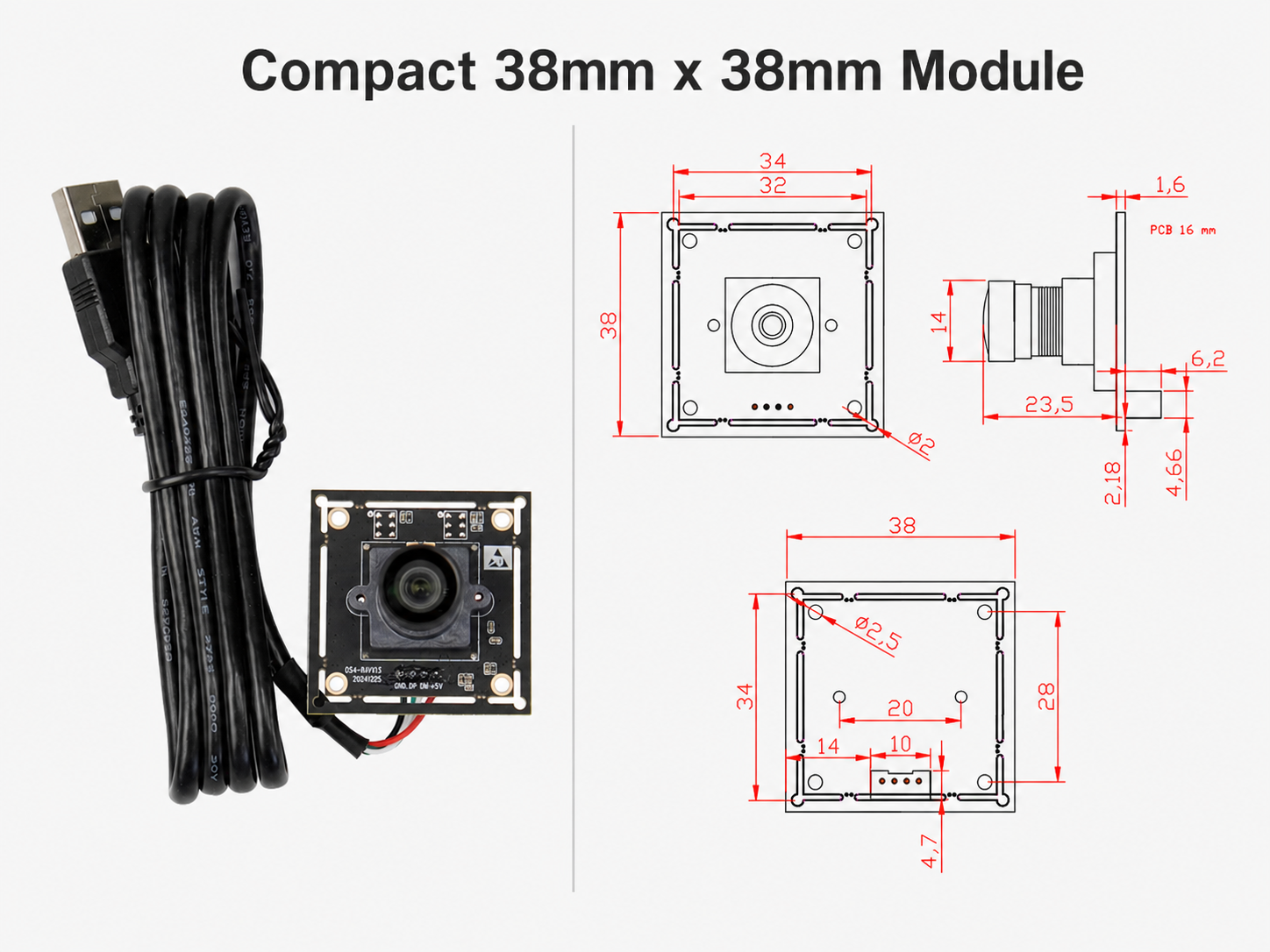

Figure: Dimension Diagram

Driverless USB UVC for Developer Integration

The USB 2.0 UVC driverless architecture provides a true plug-and-play experience across Windows, Linux, and Android platforms. The module can be integrated with edge computing boards and custom systems, including Raspberry Pi-based prototypes, without complex driver installation or lengthy camera setup steps, making evaluation and deployment more efficient for embedded vision developers. This supports dependable camera integration for prototypes, demonstrations, and compact embedded vision deployments.

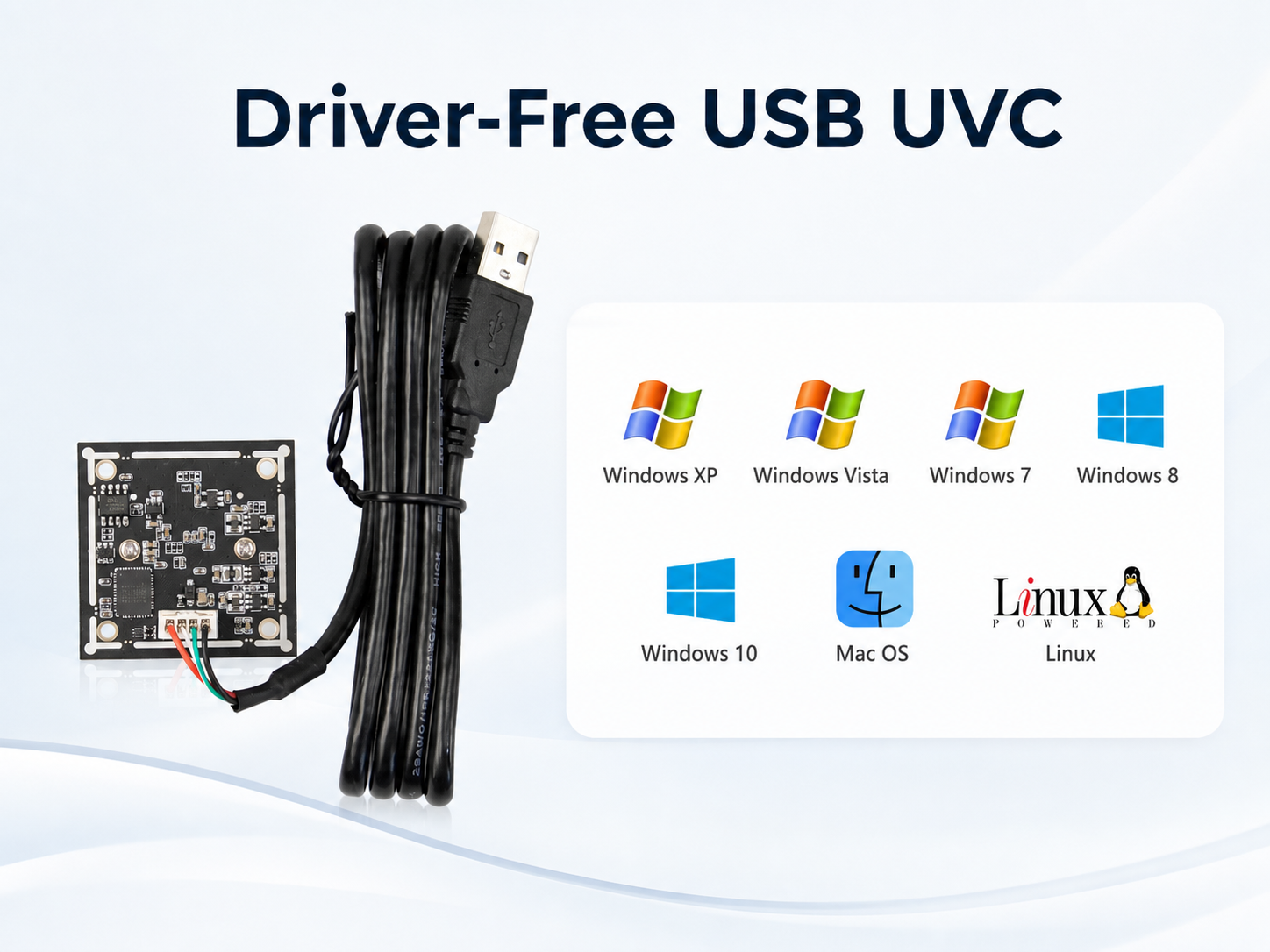

Figure: Compatible Systems

Suitable for AI computer vision, high-definition indoor surveillance, professional video conferencing, STEAM/Maker education, STEM Education, and edge-computing camera prototypes, this large-format UVC camera module offers a cost-effective path to 4K image capture with balanced perspective and broad operating-system compatibility for prototypes, demos, and compact project deployments. This supports dependable camera integration for prototypes, demonstrations, and compact embedded vision deployments.

Selection Guide

Product Name

IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera

IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera

IMX274 4K 8MP 1/2.5" 3.25mm 97° USB UVC Camera

IMX274 4K 8MP 1/2.5" 2.26mm 130° USB UVC Camera

IMX678 4K 8MP 1/1.8" 6mm 73° USB UVC Camera

IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera

Figure

SKU

FIT1043

FIT1044

FIT1045

FIT1046

FIT1047

FIT1048

Configuration

IMX415, 3mm

IMX415, 2.6mm

IMX274, 3.25mm

IMX274, 2.26mm

IMX678, 6mm

IMX678, 4mm

Nominal FOV

95°

120°

97°

130°

73°

95°

Key Advantage

Good value and stable image quality

Wide-area coverage

High frame rate for moving subjects

Ultra-wide coverage

Better low-light performance

Large sensor with a balanced FOV

Recommended Applications

Office and home use

Meeting rooms and classrooms

Industrial inspection and motion capture

Warehouses and large halls

Night monitoring and security

Residential areas and schools

Key Test Findings

Resolution generally met expectations; no obvious distortion

Measured at 117.59°; slight distortion

Resolution generally met expectations; no obvious distortion

Measured at 119.83°; slight edge distortion

Resolution generally met expectations; no obvious distortion

Resolution generally met expectations; no obvious distortion

Add to Cart

• 1/2.5-inch CMOS imx274 8MP image sensor
• 3840×2160 Ultra-HD resolution at 30FPS
• 97° field of view for balanced wide-angle imaging
• USB 2.0 UVC driverless architecture for plug-and-play use
• Large-format sensor for low-light performance and color fidelity
• Compatible with Windows, Android, Linux, and Wince systems
• Suitable for AI computer vision, surveillance, conferencing, and STEAM/Maker education
• Compact 38mm x 38mm module with 4pin-2.0mm interface

• AI computer vision
• High-definition indoor surveillance
• Professional video conferencing
• STEAM/Maker education projects
• Edge-computing camera prototypes

• Sensor: 1/2.5-Inch CMOS imx274 8MP
• Resolution: 3840*2160
• Pixel Size: 1.62μm * 1.62μm
• Output Format: MJPEG, YUY2

MJPEG

• 3840 x 2160 (4K) @30FPS
• 2592×1944 (5MP)@30FPS
• 2688 x 1512 @30FPS
• 2048 x 1536 @30FPS
• 1920×1080 (1080P)@30FPS
• 1600 x1200 (UXGA) @30FPS
• 1280 x 960 @30FPS
• 1280 x 720 (720P)@30FPS
• 960 x 540 @30FPS
• 800 x 600(WVGA)@30FPS
• 640 x 480(VGA) @30FPS
• 640 x 360@30FPS

YUV2

• 3840 x 2160 (4K) @1FPS
• 2592×1944 (5MP)@1FPS
• 2688 x 1512 @2FPS
• 2048 x 1536 @3FPS
• 1920×1080 (1080P)@5FPS
• 1600 x1200 (UXGA) @5FPS
• 1280 x 960 @7.5FPS
• 1280 x 720 (720P)@10FPS
• 960 x 540 @20FPS
• 800 x 600(WVGA)@15FPS
• 640 x 480(VGA) @20FPS
• 640 x 360@25FPS

• FOV(deg)@INF: Diagonal 97°±5° Horizontal 90°±3° Vertical 58°±3°
• Lens: 650nmIR (EFL:3.25mm F/no:2.7±%5)
• Shutter Type: Electronic Rolling shutter
• Operating Voltage:USB DC +5V Supply
• Operating Current:170mA-230mA±5mA
• Operating Temperature:-15℃ ~ 60℃
• Storage Temperature:-20℃ ~ 85℃
• Humidity:0 ~85%
• Supported OS:Windows, Android, Linux, Wince
• Interface:4pin-2.0mm
• Module Size:38mm x 38mm 23.5±0.2mm

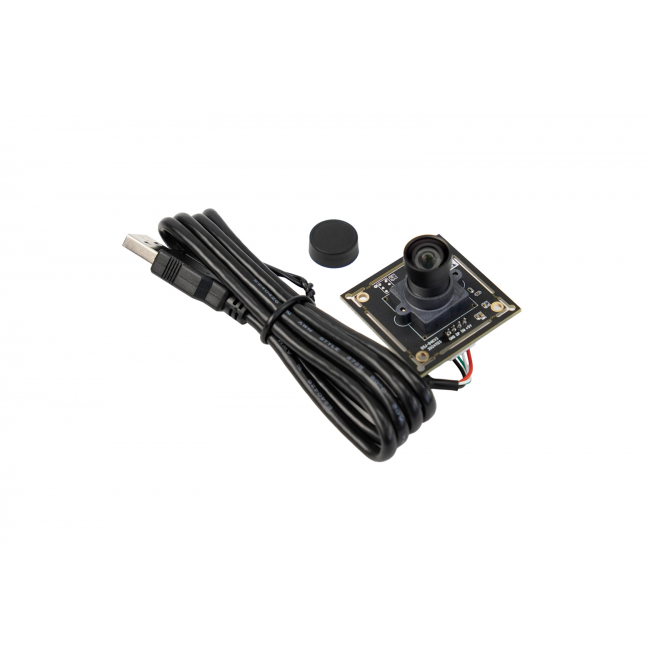

• IMX274 4K 8MP 1/2.5" 3.25mm 97° USB UVC Camera ×1
• 1m USB Cable × 1
