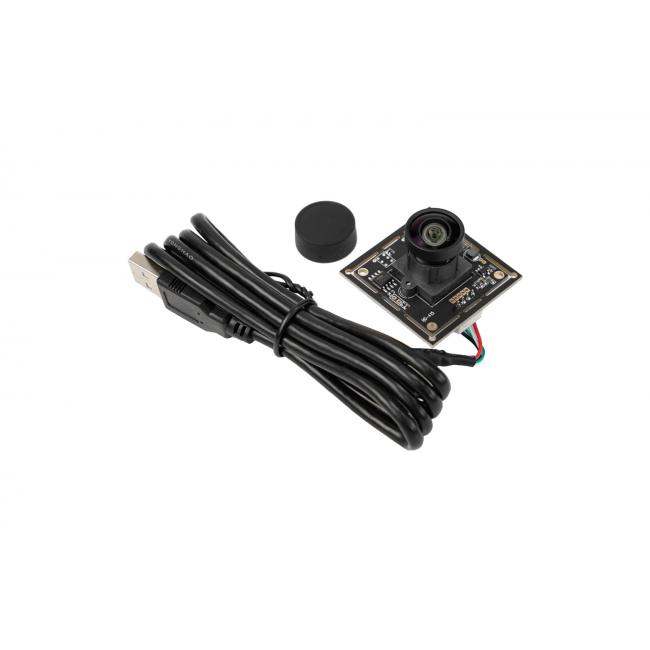

DFRobot - 4K USB Camera Module with Sony IMX415 Sensor (120° Wide Vision)

IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera is a wide-angle 4K imaging module designed for expansive scene capture. Built with a 1/2.8-inch CMOS IMX415 sensor, this USB UVC camera delivers 8MP 3840×2160 Ultra HD resolution and supports smooth 1080P video up to 60FPS. The 120° field of view, driver-free USB 2.0 interface, and compact module form factor make the board suitable for panoramic monitoring, wide-scene AI vision, and maker education projects where broad coverage and straightforward USB setup are both important.

120° Ultra-Wide Coverage for Large Scenes

The 2.6mm lens provides a 120° diagonal field of view, helping this 4K wide-angle USB camera capture broader scenes from a fixed mounting point. The wider perspective is useful for panoramic surveillance, room-scale observation, mobile robot awareness, and wide-scene AI visual recognition where a standard camera may miss important context at the edges. This gives developers a stronger foundation for wide-area camera projects without adding extra hardware complexity.

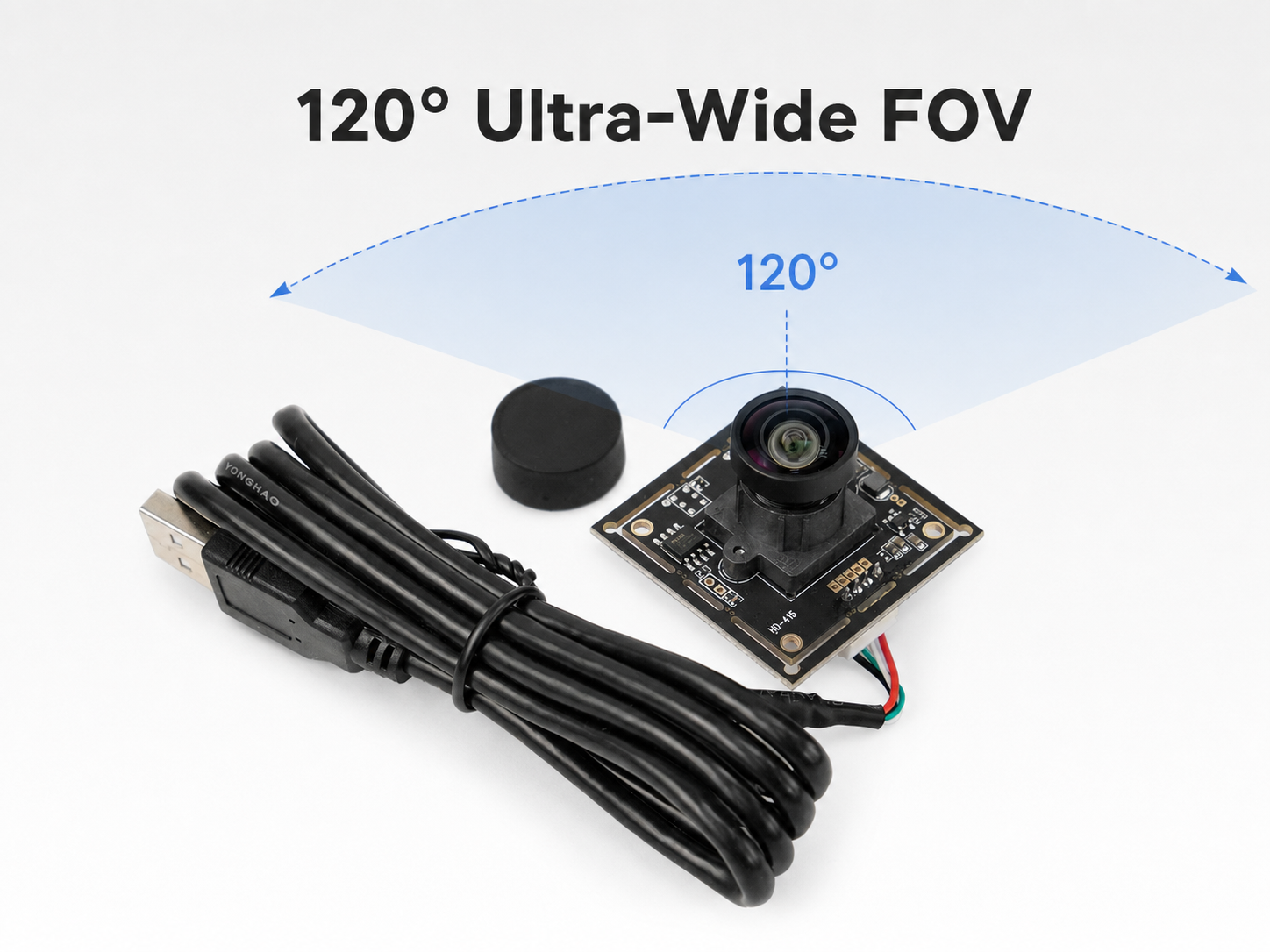

Figure: IMX415 120 degree USB camera

IMX415 8MP Sensor for Clear 4K Detail

The 1/2.8-inch CMOS IMX415 sensor supports 3840×2160 Ultra HD resolution, giving the module enough image detail for recognition, monitoring, and high-definition video applications. Combined with the wide-angle lens, this UVC camera board offers broad coverage while preserving the clarity needed for embedded vision prototypes, teaching demonstrations, and professional maker camera systems. This gives developers a stronger foundation for wide-area camera projects without adding extra hardware complexity.

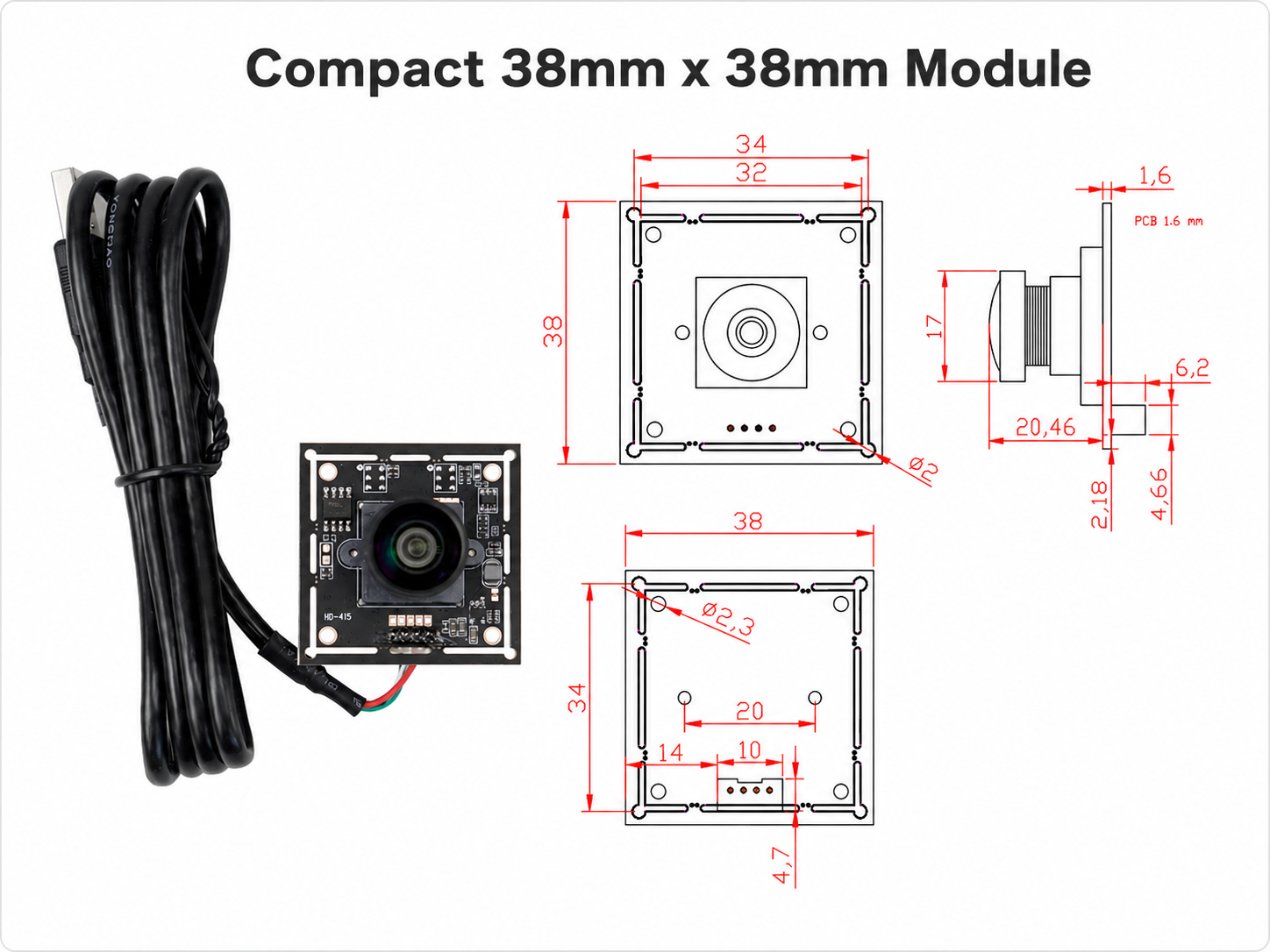

Figure: Dimension Diagram

Driver-Free UVC for Fast Deployment

Designed with a USB 2.0 driver-free UVC interface, the plug-and-play camera module works across mainstream operating systems including Windows, Linux, and Android. This simplifies integration with single-board computers and development platforms, including Raspberry Pi workflows, reducing driver setup time for prototypes and small deployments, classroom experiments, and compact embedded camera systems. This gives developers a stronger foundation for wide-area camera projects without adding extra hardware complexity.

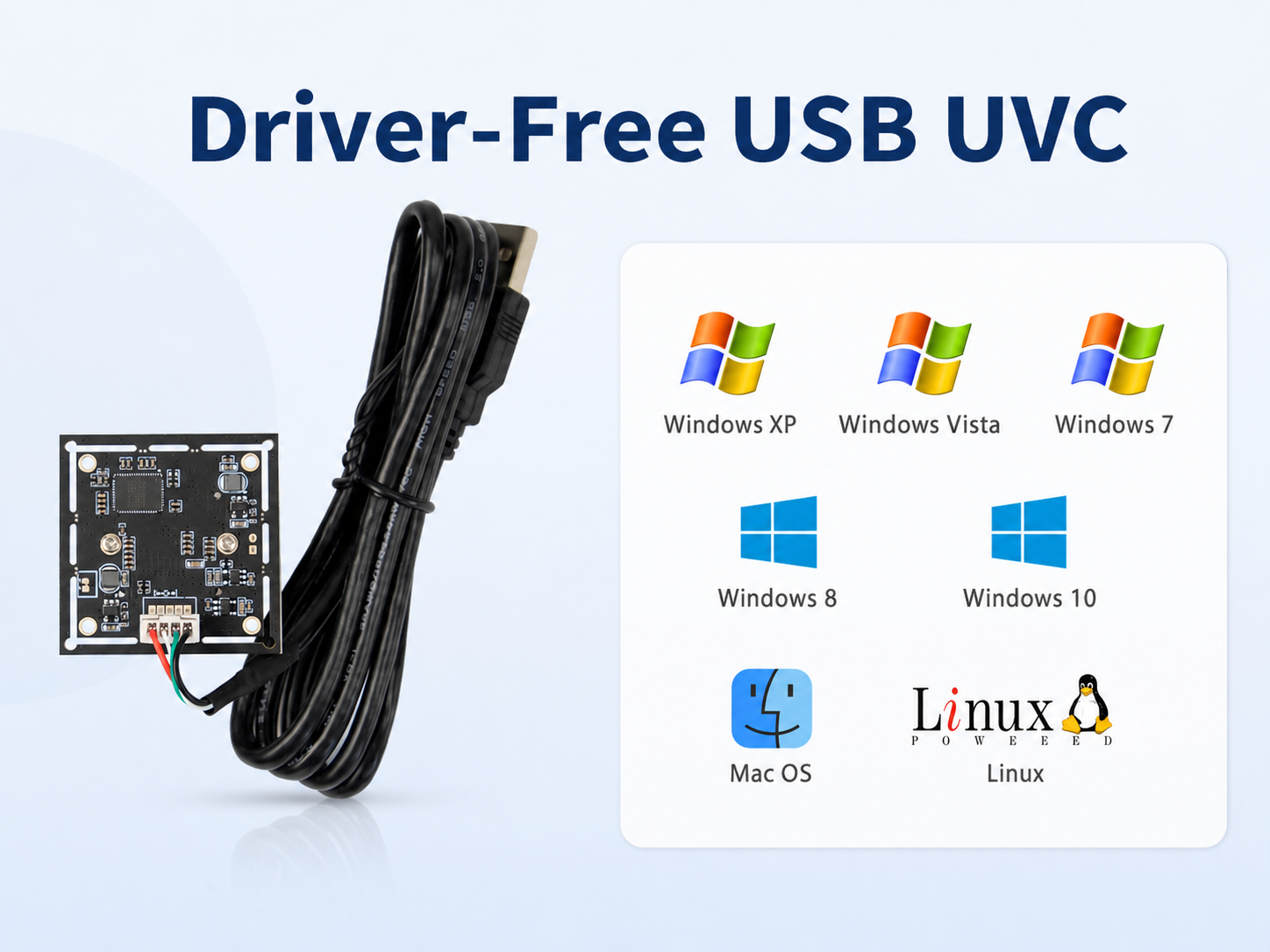

Figure: Compatible Systems

Suitable for wide-scene AI visual recognition, panoramic surveillance, robotics vision, Maker education, STEM Education, and development-board camera projects, this ultra-wide UVC camera module combines 4K detail with broad scene coverage for applications where one compact camera needs to capture more of the environment without adding extra cameras or increasing system complexity. This gives developers a stronger foundation for wide-area camera projects without adding extra hardware complexity.

Selection Guide

Product Name

IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera

IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera

IMX274 4K 8MP 1/2.5" 3.25mm 97° USB UVC Camera

IMX274 4K 8MP 1/2.5" 2.26mm 130° USB UVC Camera

IMX678 4K 8MP 1/1.8" 6mm 73° USB UVC Camera

IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera

Figure

SKU

FIT1043

FIT1044

FIT1045

FIT1046

FIT1047

FIT1048

Configuration

IMX415, 3mm

IMX415, 2.6mm

IMX274, 3.25mm

IMX274, 2.26mm

IMX678, 6mm

IMX678, 4mm

Nominal FOV

95°

120°

97°

130°

73°

95°

Key Advantage

Good value and stable image quality

Wide-area coverage

High frame rate for moving subjects

Ultra-wide coverage

Better low-light performance

Large sensor with a balanced FOV

Recommended Applications

Office and home use

Meeting rooms and classrooms

Industrial inspection and motion capture

Warehouses and large halls

Night monitoring and security

Residential areas and schools

Key Test Findings

Resolution generally met expectations; no obvious distortion

Measured at 117.59°; slight distortion

Resolution generally met expectations; no obvious distortion

Measured at 119.83°; slight edge distortion

Resolution generally met expectations; no obvious distortion

Resolution generally met expectations; no obvious distortion

Add to Cart

• 1/2.8-inch CMOS imx415 8MP image sensor
• 3840×2160 Ultra-HD resolution for 4K image capture
• 120° diagonal ultra-wide field of view for expansive scene coverage
• MJPEG output up to 1920 x 1080 (1080P)@60FPS
• USB 2.0 driver-free UVC interface for plug-and-play integration
• Compatible with Windows, Android, Linux, and Wince systems
• Suitable for wide-scene AI vision, panoramic surveillance, and Maker education
• Compact 38mm x 38mm module with 4pin-2.0mm interface

• Wide-scene AI visual recognition
• Panoramic surveillance
• Robotic vision
• Maker education projects
• Development-board camera systems

• Sensor: 1/2.8-Inch CMOS imx415 8MP
• Resolution: 3840*2160
• Pixel Size: 1.45μm * 1.45μm
• Output Format: MJPEG, YUY2

MJPEG

• 3840 x 2160 (4K) @30FPS
• 2560 x 1440@30FPS
• 1920 x 1080 (1080P)@60FPS
• 1600 x 896 @30FPS
• 1280 x 720 (720P) @30FPS
• 1024 x 576@30FPS
• 800 x 600 (WVGA) @30FPS
• 800 x 480@30FPS
• 640 x 480(VGA) @30FPS
• 640 x 360@30FPS
• 424 x 240@30FPS
• 352 x 288 @30FPS

YUV2

• 3840 x 2160 (4K) @1FPS
• 2560 x 1440@1FPS
• 1920 x 1080 (1080P)@5FPS
• 1600 x 896 @10FPS
• 1280 x 720 (720P) @30FPS
• 1024 x 576@30FPS
• 800 x 600 (WVGA) @30FPS
• 800 x 480@30FPS
• 640 x 480(VGA) @30FPS
• 640 x 360@30FPS
• 424 x 240@30FPS
• 352 x 288 @30FPS

• FOV(deg)@INF: Diagonal 120°±5° Horizontal 115°±5° Vertical 76°±3°
• Lens: 650nmIR (EFL:2.6mm F/no:2.5)
• Shutter Type: Electronic Rolling shutter
• Operating Voltage: USB DC +5V Supply
• Operating Current: 170mA-250mA±5mA
• Operating Temperature: -15℃ ~ 60℃
• Storage Temperature: -20℃ ~ 85℃
• Humidity: 0 ~85%
• Supported OS: Windows, Android, Linux, Wince
• Interface: 4pin-2.0mm
• Module Size: 38mm x 38mm 16.4±0.2mm

• IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera ×1
• 1m USB Cable × 1
