DFRobot - 4K USB Camera Module with Sony IMX274 Sensor (130° FOV Ultra Wide)

IMX274 4K 8MP 1/2.5" 2.26mm 130° USB UVC Camera is a high-performance ultra-wide-angle imaging module powered by the Sony IMX274 solution and a 1/2.5-inch large-format CMOS image sensor. Delivering 8MP Ultra-HD output at 3840×2160 with a 130° field of view and up to 30FPS video, this driver-free USB camera board is built for wide-area visual capture in robotics, embedded vision, monitoring, and maker development projects where broad scene awareness, clear detail, and simple USB integration are all required.

130° Ultra-Wide Coverage for Larger Scenes

The 2.26mm lens provides a 130° diagonal field of view, giving this 4K wide-angle USB camera a much broader visual range than narrow-FOV modules. The expansive perspective is useful for panoramic surveillance, mobile robot navigation, room-scale observation, and large-scene AI visual recognition where more context needs to be captured from a fixed camera position without adding multiple modules or redesigning the camera layout.

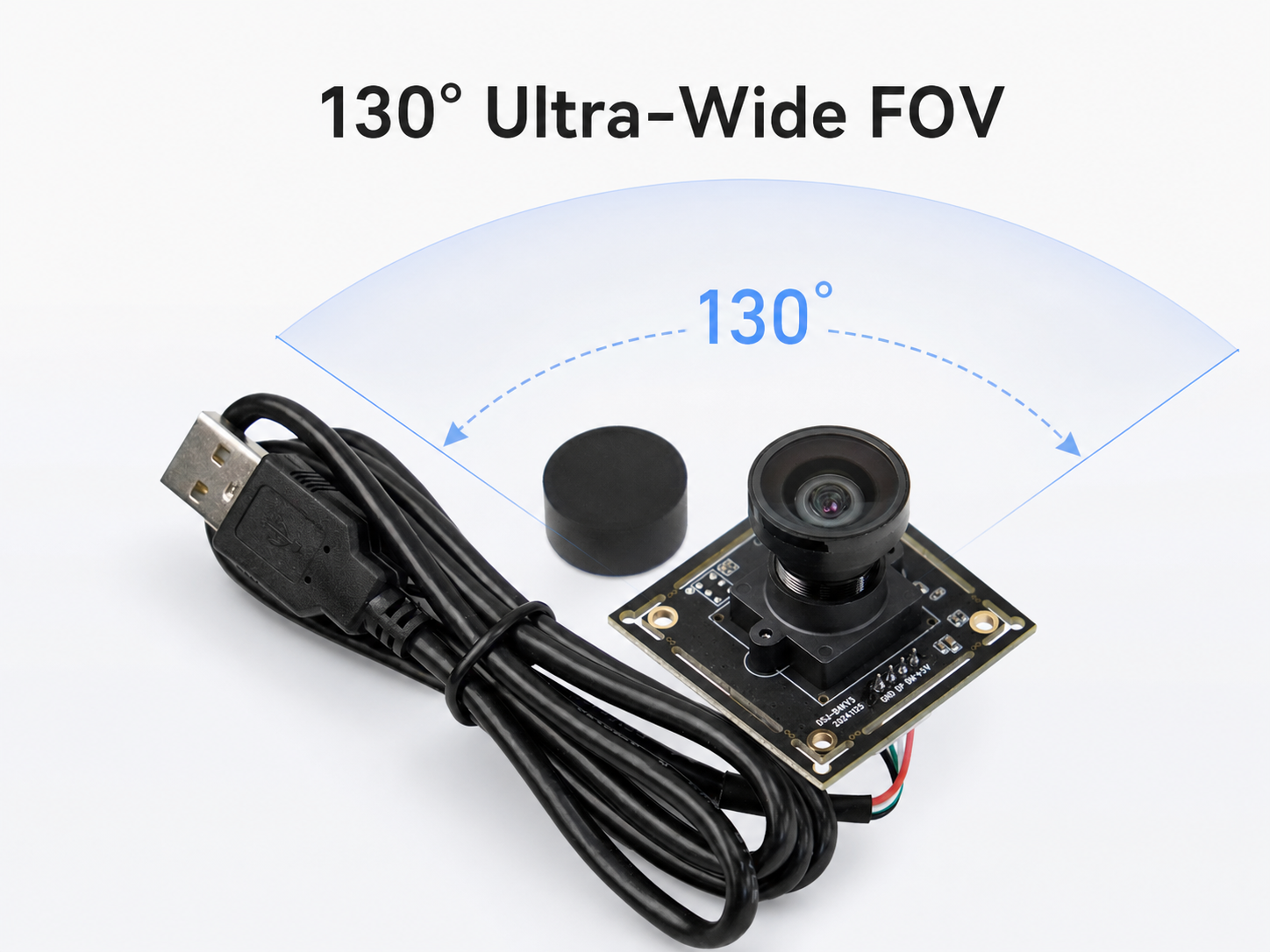

Figure: IMX274 4K USB UVC Camera

Large-Format 8MP Sensor with Edge-to-Edge Clarity

The 1/2.5-inch CMOS image sensor supports 3840×2160 Ultra-HD resolution, helping the module retain fine visual detail across wide scenes. The combination of a large-format sensor and ultra-wide optics is designed to balance broad coverage with edge-to-edge clarity, making this high-resolution UVC camera suitable for projects that need both scene awareness and usable image detail for recognition, inspection, or remote observation tasks.

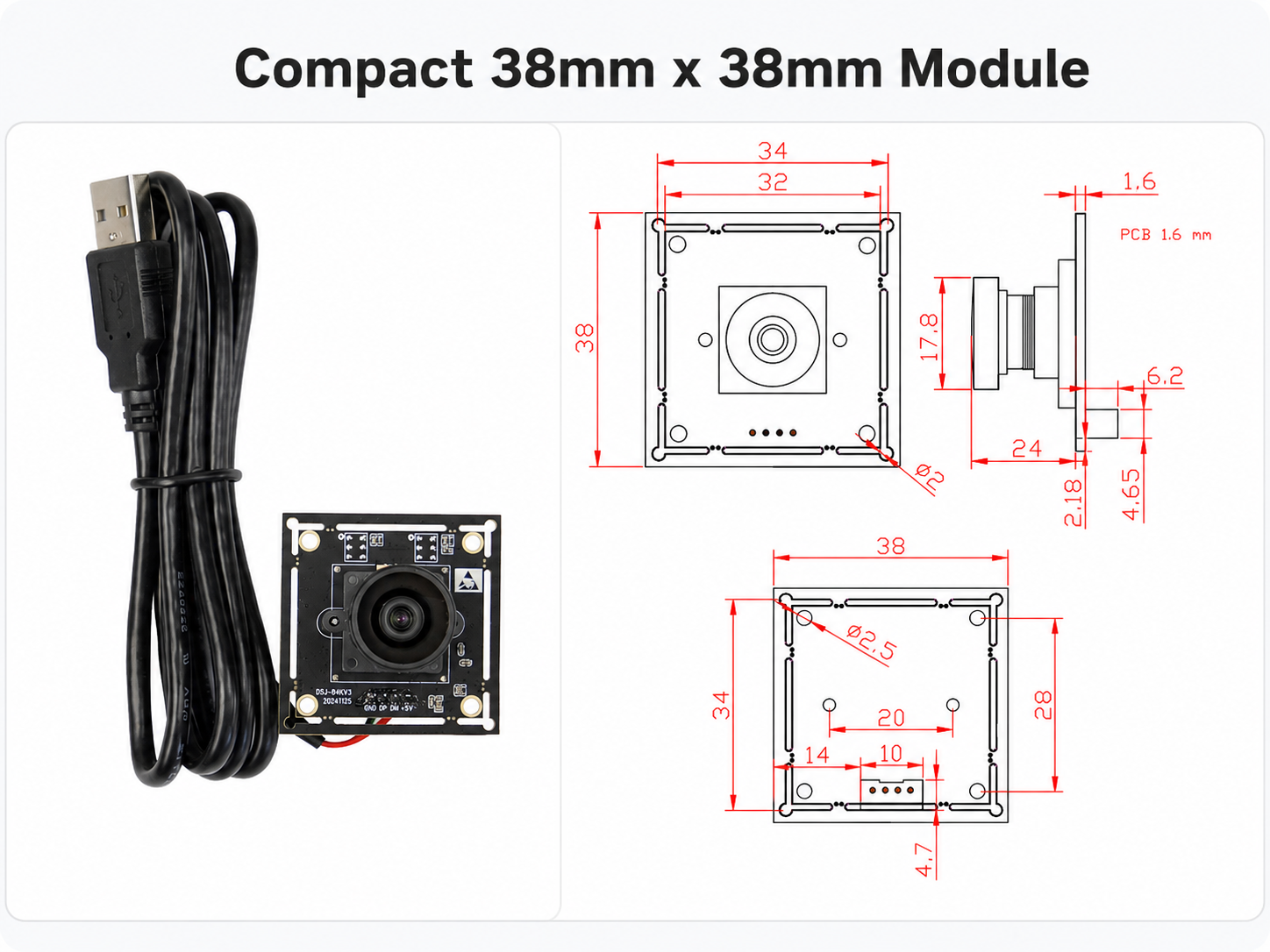

Figure: Dimension Diagram

Driver-Free USB UVC Integration

With a USB 2.0 driver-free UVC design, the plug-and-play camera module can be integrated without complex driver configuration. The board supports mainstream operating systems including Windows, Linux, and Android, and fits development-board workflows such as Raspberry Pi and Jetson Nano vision projects that require fast setup, stable camera access, and repeatable prototyping. This makes the module practical for rapid evaluation as well as small-batch embedded camera systems.

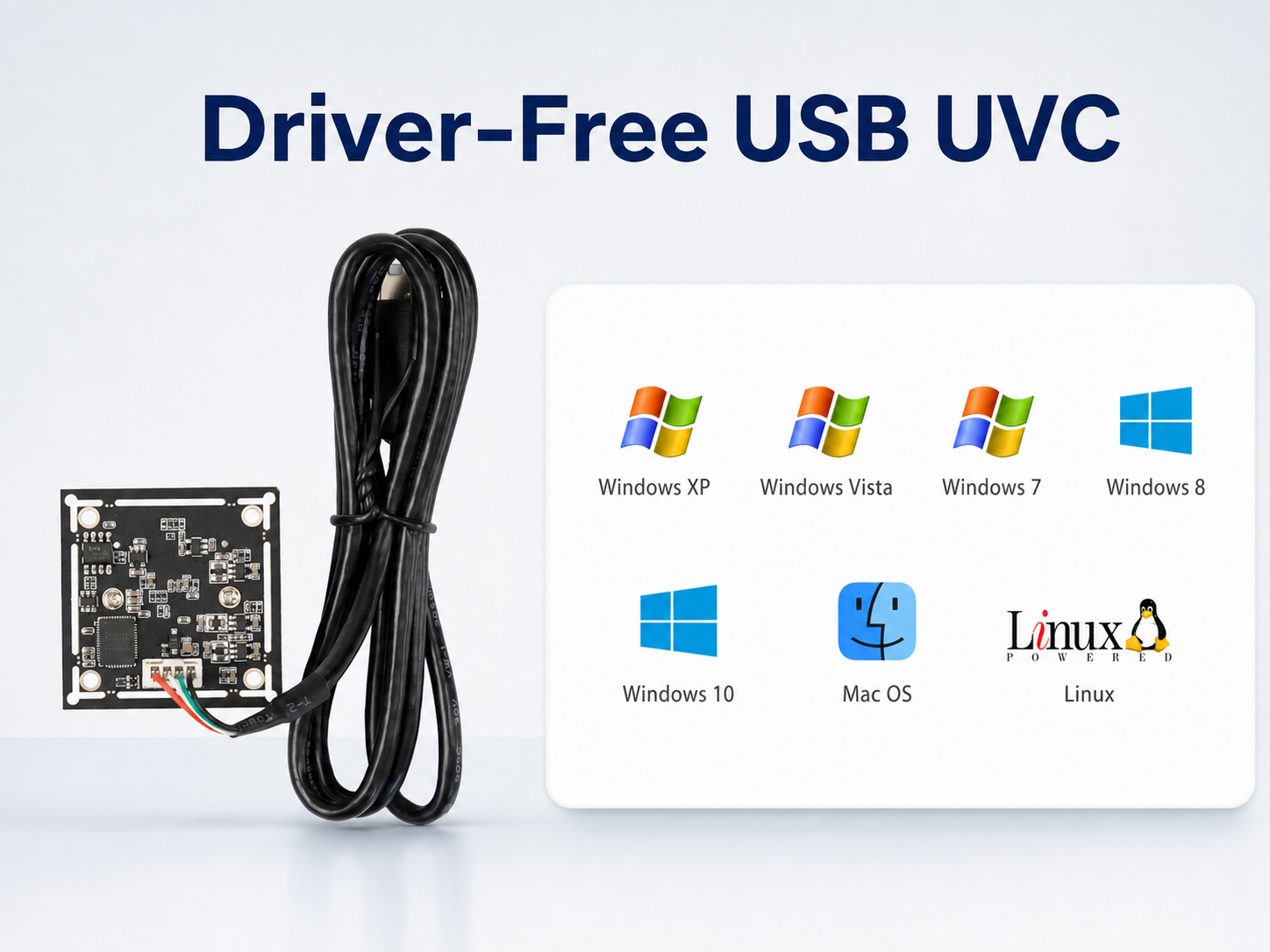

Figure: Compatible Systems

Suitable for large-scale AI visual recognition, panoramic surveillance, robotic vision, Maker education, and STEM Education, this ultra-wide UVC camera board offers a practical balance of 4K resolution, broad viewing angle, and USB simplicity. The compact imaging module helps developers build wide-perspective camera systems with fewer setup barriers, especially in projects where installation space, software compatibility, and image coverage must be considered together.

Selection Guide

Product Name

IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera

IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera

IMX274 4K 8MP 1/2.5" 3.25mm 97° USB UVC Camera

IMX274 4K 8MP 1/2.5" 2.26mm 130° USB UVC Camera

IMX678 4K 8MP 1/1.8" 6mm 73° USB UVC Camera

IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera

Figure

SKU

FIT1043

FIT1044

FIT1045

FIT1046

FIT1047

FIT1048

Configuration

IMX415, 3mm

IMX415, 2.6mm

IMX274, 3.25mm

IMX274, 2.26mm

IMX678, 6mm

IMX678, 4mm

Nominal FOV

95°

120°

97°

130°

73°

95°

Key Advantage

Good value and stable image quality

Wide-area coverage

High frame rate for moving subjects

Ultra-wide coverage

Better low-light performance

Large sensor with a balanced FOV

Recommended Applications

Office and home use

Meeting rooms and classrooms

Industrial inspection and motion capture

Warehouses and large halls

Night monitoring and security

Residential areas and schools

Key Test Findings

Resolution generally met expectations; no obvious distortion

Measured at 117.59°; slight distortion

Resolution generally met expectations; no obvious distortion

Measured at 119.83°; slight edge distortion

Resolution generally met expectations; no obvious distortion

Resolution generally met expectations; no obvious distortion

Add to Cart

• 1/2.5-inch CMOS imx274 8MP image sensor
• 3840×2160 Ultra-HD resolution for 4K image capture
• 130° diagonal ultra-wide field of view for broad scene coverage
• MJPEG output up to 3840 x 2160 (4K) @30FPS
• USB 2.0 UVC driver-free interface for plug-and-play integration
• Compatible with Windows, Android, Linux, and Wince systems
• Suitable for Raspberry Pi, Jetson Nano, and embedded vision projects
• Compact 38mm x 38mm module with 4pin-2.0mm interface

• Large-scale AI visual recognition
• Panoramic surveillance and wide-area monitoring
• Robotic vision and navigation
• Maker education and embedded camera prototyping
• Development-board vision systems

• Sensor: 1/2.5-Inch CMOS imx274 8MP
• Resolution: 3840*2160
• Pixel Size: 1.62μm * 1.62μm
• Output Format: MJPEG, YUY2

MJPEG

• 3840 x 2160 (4K) @30FPS
• 2592×1944 (5MP)@30FPS
• 2688 x 1512 @30FPS
• 2048 x 1536 @30FPS
• 1920×1080 (1080P)@30FPS
• 1600 x1200 (UXGA) @30FPS
• 1280 x 960 @30FPS
• 1280 x 720 (720P)@30FPS
• 960 x 540 @30FPS
• 800 x 600(WVGA)@30FPS
• 640 x 480(VGA) @30FPS
• 640 x 360@30FPS

YUV2

• 3840 x 2160 (4K) @1FPS
• 2592×1944 (5MP)@1FPS
• 2688 x 1512 @2FPS
• 2048 x 1536 @3FPS
• 1920×1080 (1080P)@5FPS
• 1600 x1200 (UXGA) @5FPS
• 1280 x 960 @7.5FPS
• 1280 x 720 (720P)@10FPS
• 960 x 540 @20FPS
• 800 x 600(WVGA)@15FPS
• 640 x 480(VGA) @20FPS
• 640 x 360@25FPS

• FOV(deg)@INF: Diagonal 130°±5° Horizontal 120°±3° Vertical 80°±3°
• Lens: 650nmIR (EFL:2.26mm F/no:2.2)
• Shutter Type: Electronic Rolling shutter
• Operating Voltage: USB DC +5V Supply
• Operating Current: 170mA-230mA±5mA
• Operating Temperature: -15℃ ~ 60℃
• Storage Temperature: -20℃ ~ 85℃
• Humidity: 0 ~85%
• Supported OS: Windows, Android, Linux, Wince
• Interface: 4pin-2.0mm
• Module Size: 38mm x 38mm 24±0.2mm

• IMX274 4K 8MP 1/2.5" 2.26mm 130° USB UVC Camera ×1
• 1m USB Cable × 1
