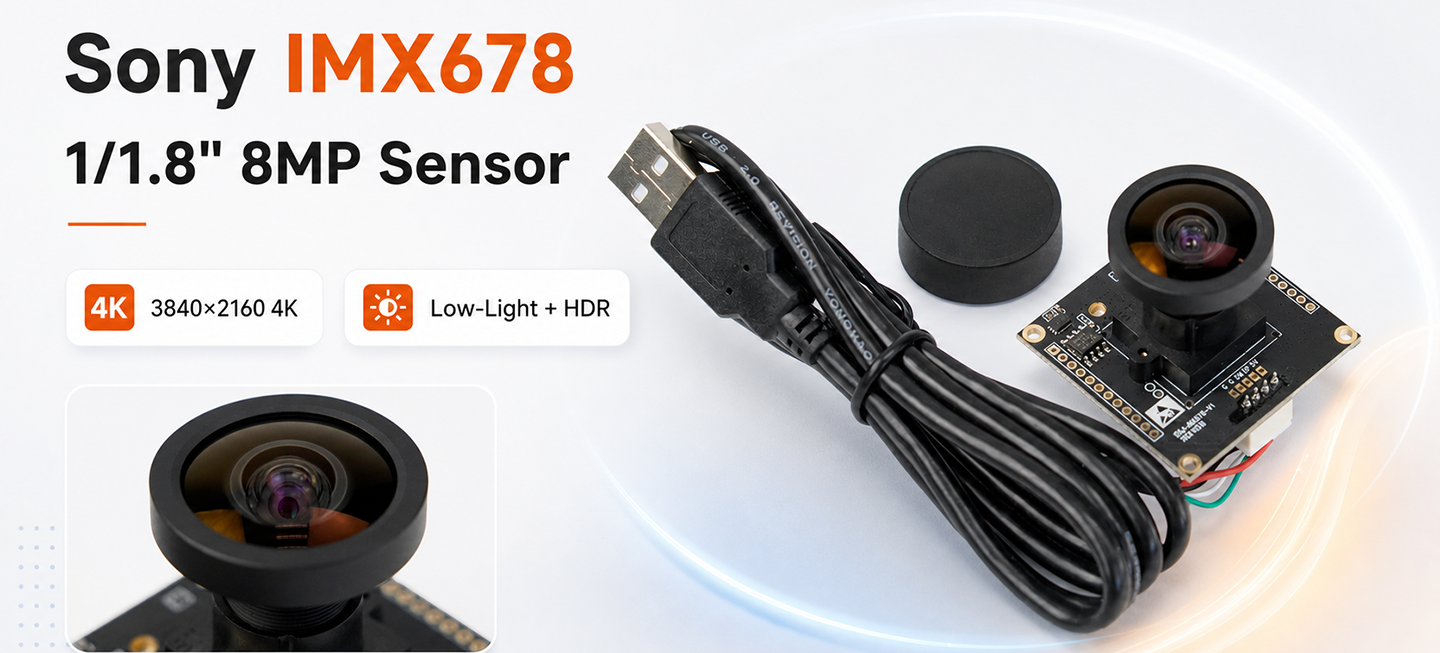

DFRobot - 4K USB Camera Module with Sony IMX678 Sensor (1/1.8" Large Sensor, 95° Wide Angle)

This flagship 4K USB camera is powered by the Sony IMX678 1/1.8" ultra-large format CMOS image sensor, delivering a stunning 8MP resolution (3840×2160). It features a 95° optimal Field of View (FOV) and supports high-speed capture up to 60FPS at 1080P and lower resolutions for silky-smooth video performance.

Ultra-Large Sensor & Exceptional Low-Light Performance

The 1/1.8-inch CMOS IMX678 sensor with 2.0μm pixel size empowers this USB camera with high dynamic range (HDR) and superior color accuracy. This 4K camera delivers clear, detailed images even in challenging lighting conditions, making it ideal for indoor and outdoor surveillance and AI vision applications.

Optimal Wide-Angle Coverage Without Distortion

Featuring a 95° diagonal FOV (90° horizontal, 58° vertical) with a 650nm IR lens (EFL: 4mm, F/no: 2.8), this USB UVC camera captures expansive scenes while maintaining precise detail. This 8MP camera balances wide-angle coverage and image clarity for professional video conferencing and high-end Maker projects.

Seamless Plug-and-Play Across Multiple Platforms

Equipped with a driver-free USB 2.0 (UVC) interface, this 4K camera offers true plug-and-play functionality across Windows, Linux, and Android systems without complex configuration. This compatibility ensures rapid deployment in diverse environments, from robotics development with DFRobot boards to PC-based streaming setups.

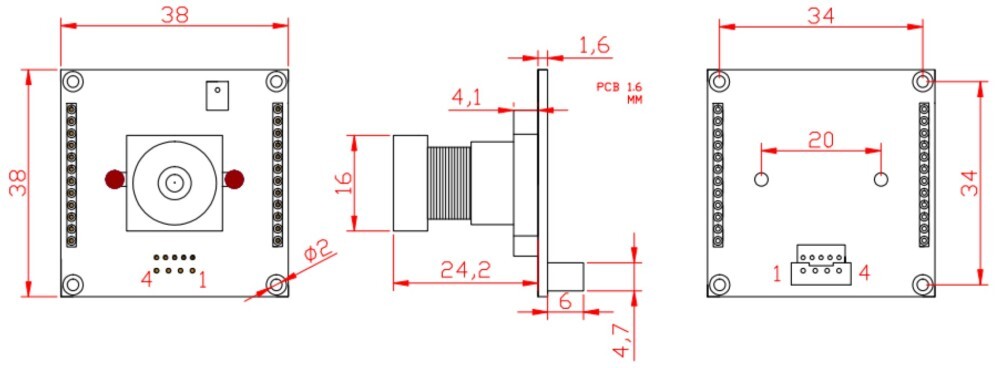

Dimension Diagram of IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera

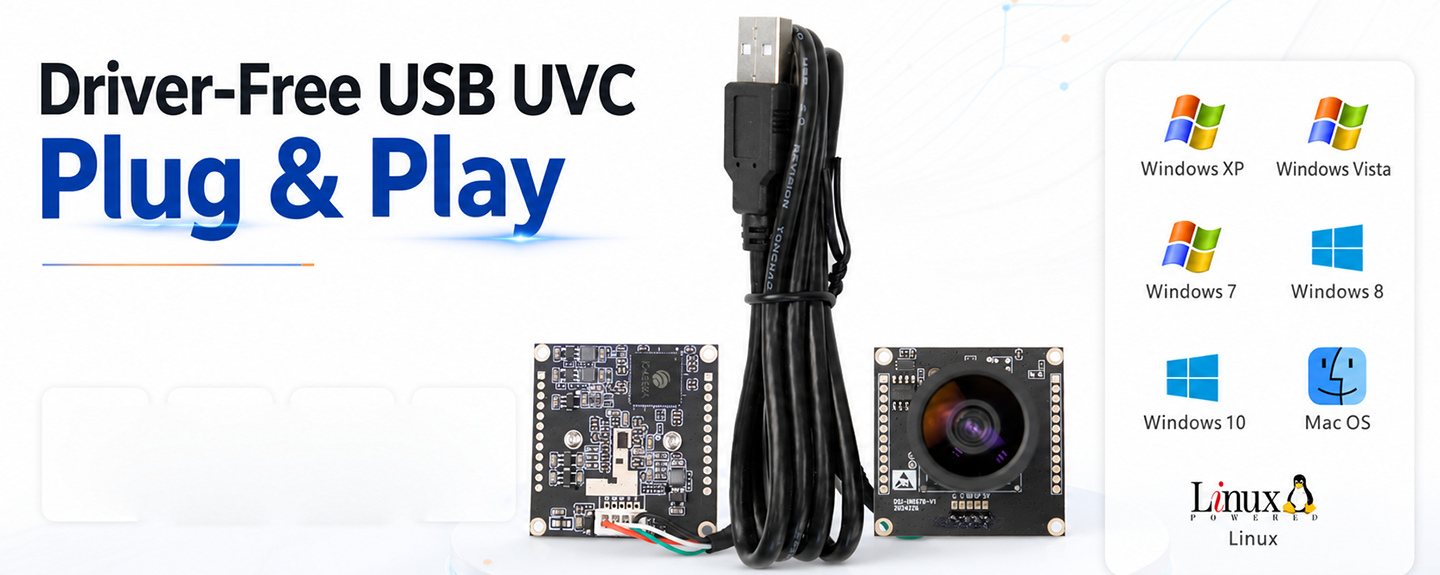

Compatible Systems of IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera

Selection Guide

Product Name

IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera

IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera

IMX274 4K 8MP 1/2.5" 3.25mm 97° USB UVC Camera

IMX274 4K 8MP 1/2.5" 2.26mm 130° USB UVC Camera

IMX678 4K 8MP 1/1.8" 6mm 73° USB UVC Camera

IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera

Figure

SKU

FIT1043

FIT1044

FIT1045

FIT1046

FIT1047

FIT1048

Configuration

IMX415, 3mm

IMX415, 2.6mm

IMX274, 3.25mm

IMX274, 2.26mm

IMX678, 6mm

IMX678, 4mm

Nominal FOV

95°

120°

97°

130°

73°

95°

Key Advantage

Good value and stable image quality

Wide-area coverage

High frame rate for moving subjects

Ultra-wide coverage

Better low-light performance

Large sensor with a balanced FOV

Recommended Applications

Office and home use

Meeting rooms and classrooms

Industrial inspection and motion capture

Warehouses and large halls

Night monitoring and security

Residential areas and schools

Key Test Findings

Resolution generally met expectations; no obvious distortion

Measured at 117.59°; slight distortion

Resolution generally met expectations; no obvious distortion

Measured at 119.83°; slight edge distortion

Resolution generally met expectations; no obvious distortion

Resolution generally met expectations; no obvious distortion

Add to Cart

• 8MP Sony IMX678 1/1.8" CMOS sensor for ultra-high-definition 4K imaging
• 95° wide FOV with 650nm IR lens for expansive, detailed scene capture
• Driver-free USB 2.0 (UVC) interface for plug-and-play on Windows, Linux, Android
• High dynamic range (HDR) and superior low-light performance
• Versatile output formats: MJPEG and YUY2 with multiple resolution/frame rate options
• Supports up to 60FPS at 1080P for silky-smooth video

• AI vision recognition and edge computing projects
• HD surveillance and security monitoring systems
• Professional video conferencing and streaming
• High-end Maker education and STEM development
• Robotics and drone first-person view (FPV) applications

Basic Parameters

• Sensor: 1/1.8-Inch CMOS IMX678 8MP
• Resolution: 3840 x 2160
• Pixel Size: 2.0μm x 2.0μm

Output Format: MJPEG, YUY2

• MJPEG:
• 3840 x 2160 (4K) @30FPS
• 2592 x 1944 (5MP) @30FPS
• 2048 x 1536 @30FPS
• 1920 x 1080 (1080P) @60FPS
• 1600 x 1200 (UXGA) @30FPS
• 1280 x 960 @60FPS
• 1280 x 720 (720P) @60FPS
• 1024 x 768 @60FPS
• 800 x 600 (WVGA) @60FPS
• 640 x 480 (VGA) @30FPS

• YUY2:
• 3840 x 2160 (4K) @1FPS
• 2592 x 1944 (5MP) @1FPS
• 2048 x 1536 @1FPS
• 1920 x 1080 (1080P) @5FPS
• 1600 x 1200 (UXGA) @5FPS
• 1280 x 960 @5FPS
• 1280 x 720 (720P) @10FPS
• 1024 x 768 @10FPS
• 800 x 600 (WVGA) @20FPS
• 640 x 480 (VGA) @30FPS

• FOV (deg) @ INF: Diagonal 95°±5°, Horizontal 90°±3°, Vertical 58°±3°
• Lens: 650nm IR (EFL: 4mm, F/no: 2.8)
• Shutter Type: Electronic Rolling Shutter
• Operating Voltage: USB DC +5V Supply
• Operating Current: 170mA - 260mA ±5mA
• Operating Temperature: -15℃ ~ 60℃
• Storage Temperature: -20℃ ~ 85℃
• Humidity: 0 ~ 85%
• Supported OS: Windows, Android, Linux
• Interface: 4pin-2.0mm
• Module Size: 38mm x 38mm x 28±0.2mm

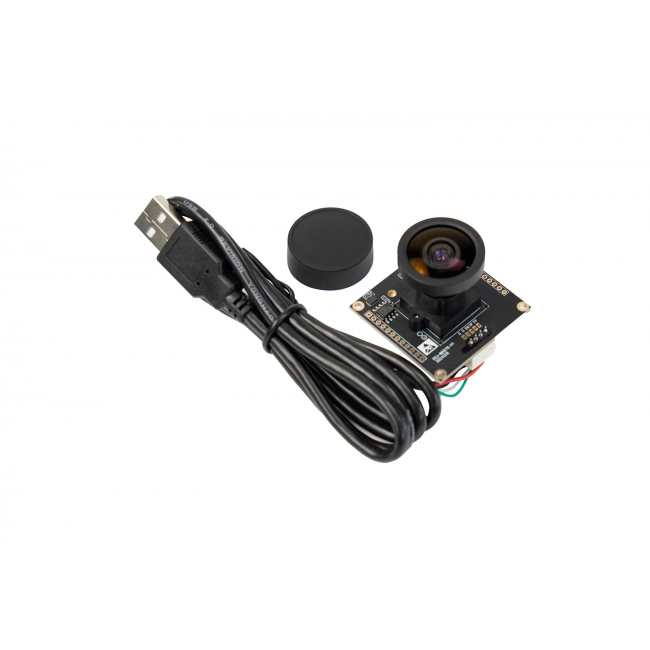

• IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera x1
• 1m USB Cable x1
