DFRobot - 4K USB Camera Module with Sony IMX415 Sensor (95° Balanced View)

IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera is a high-resolution USB imaging module built around a 1/2.8-inch CMOS IMX415 sensor. Delivering 8MP 3840×2160 Ultra HD output with a balanced 95° field of view, this UVC camera module combines wide coverage, reduced distortion, and smooth 1080P video up to 60FPS. The driver-free USB 2.0 design supports fast integration into embedded vision, surveillance, conferencing, and professional maker projects that require dependable image capture, simple wiring, and repeatable deployment.

Balanced 95° Field of View with Lower Distortion

The 3mm lens provides a moderate 95° diagonal field of view, giving this 4K USB camera a practical balance between scene coverage and image geometry. Compared with ultra-wide modules, the balanced perspective helps reduce excessive edge distortion while still covering indoor monitoring areas, workbenches, robot vision scenes, and conferencing spaces where both context and accurate subject shape matter. This makes the module practical for compact embedded camera systems that need reliable detail and integration.

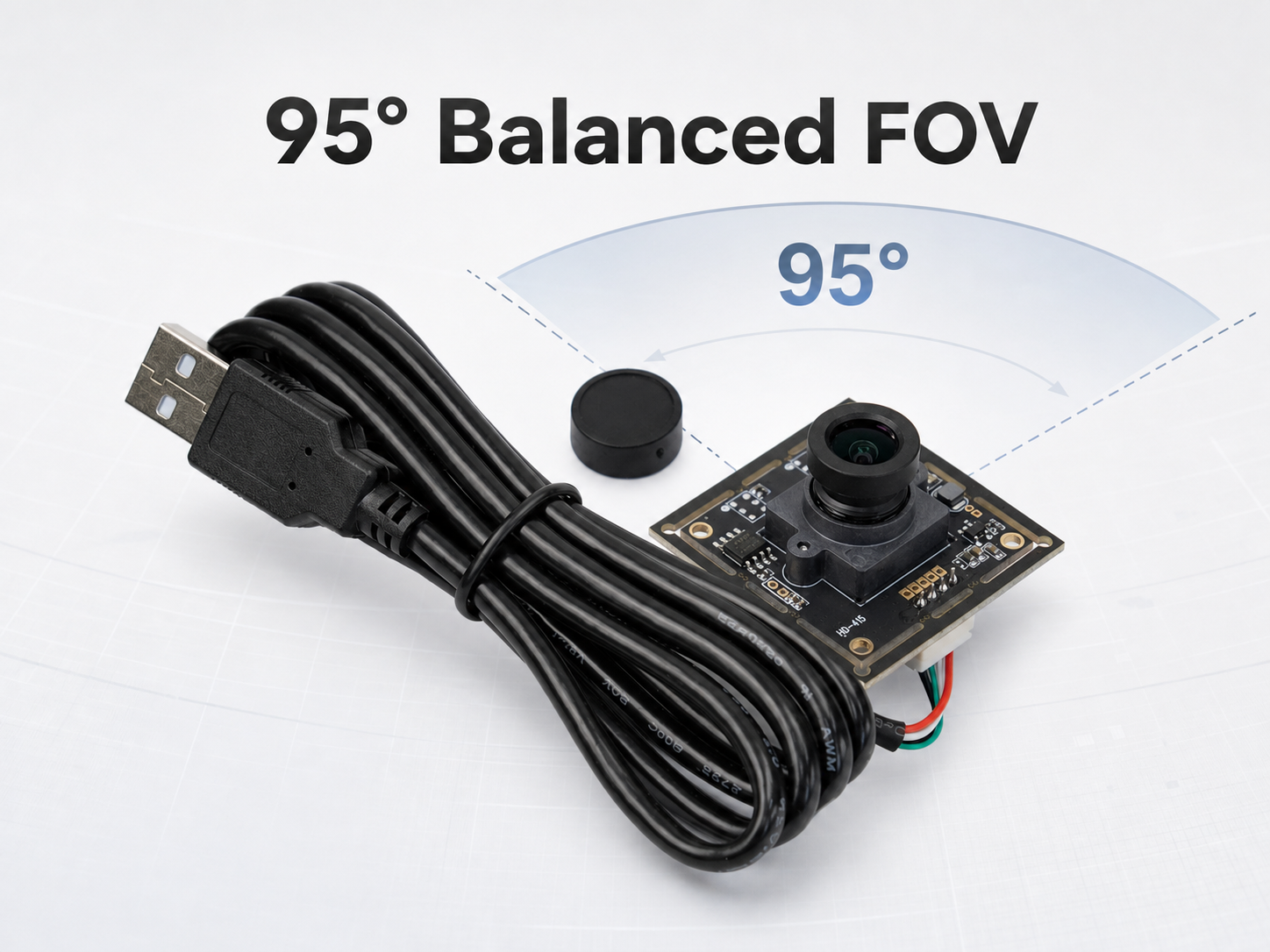

Figure: IMX415 95 degree USB camera

IMX415 8MP Ultra HD Image Quality

Powered by the IMX415 image sensor, the high-definition UVC camera captures 3840×2160 video for detailed visual recognition and inspection tasks. The 1/2.8-inch CMOS sensor supports crystal-clear image quality and accurate color reproduction, making the module suitable for AI vision recognition, indoor HD surveillance, video conferencing, and projects that need reliable 4K source imagery. This makes the module practical for compact embedded camera systems that need reliable detail and straightforward integration.

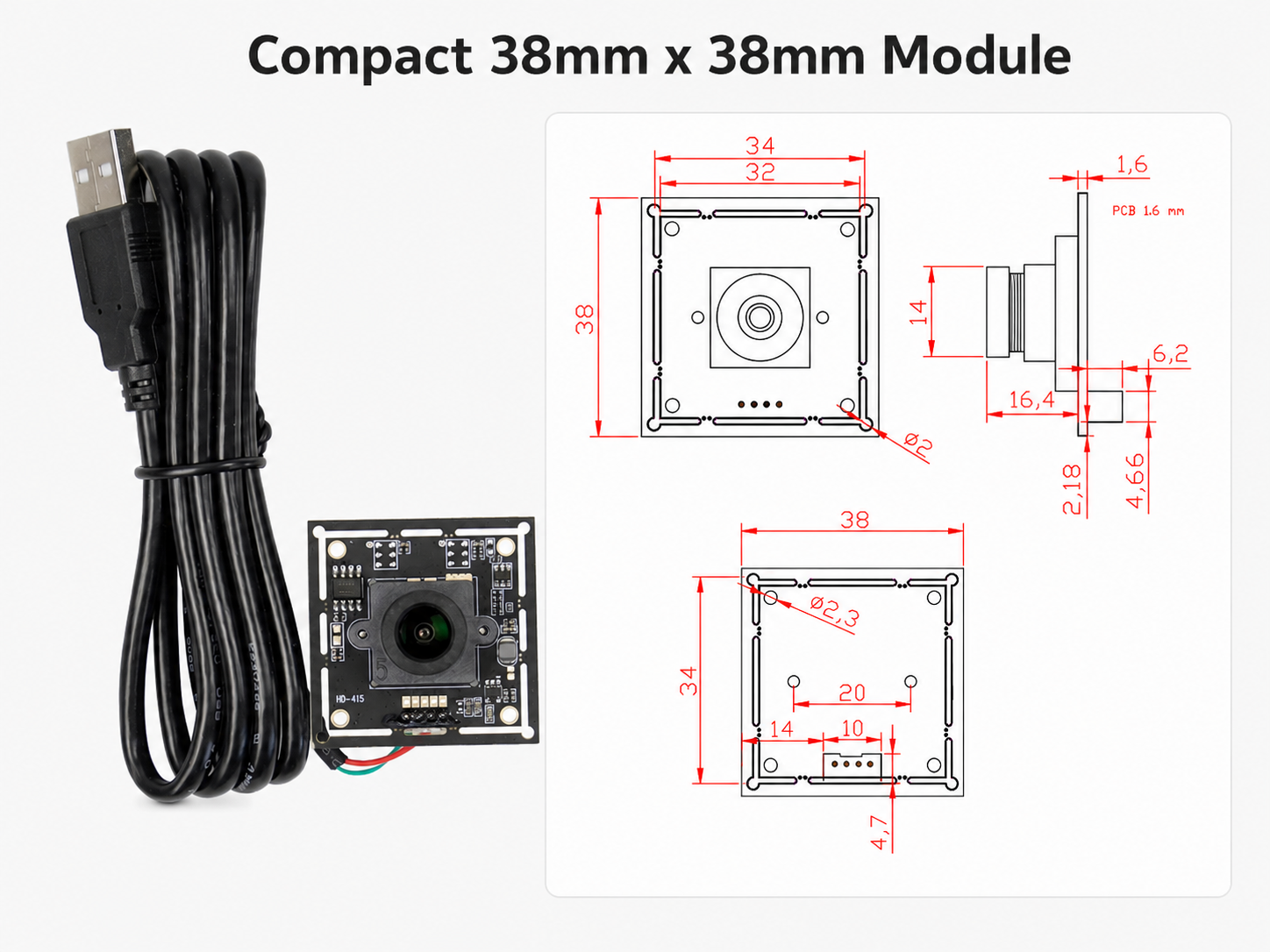

Figure: Dimension Diagram

Driver-Free USB UVC Integration

With a USB 2.0 driverless UVC-compliant design, the plug-and-play camera board works with mainstream operating systems without complex driver configuration. The module fits development-board workflows and single-board computer prototypes, including Raspberry Pi-based vision systems, where fast setup and stable camera access are important for evaluation and deployment across compact camera prototypes and small production systems. This makes the module practical for compact embedded camera systems that need reliable detail and straightforward integration.

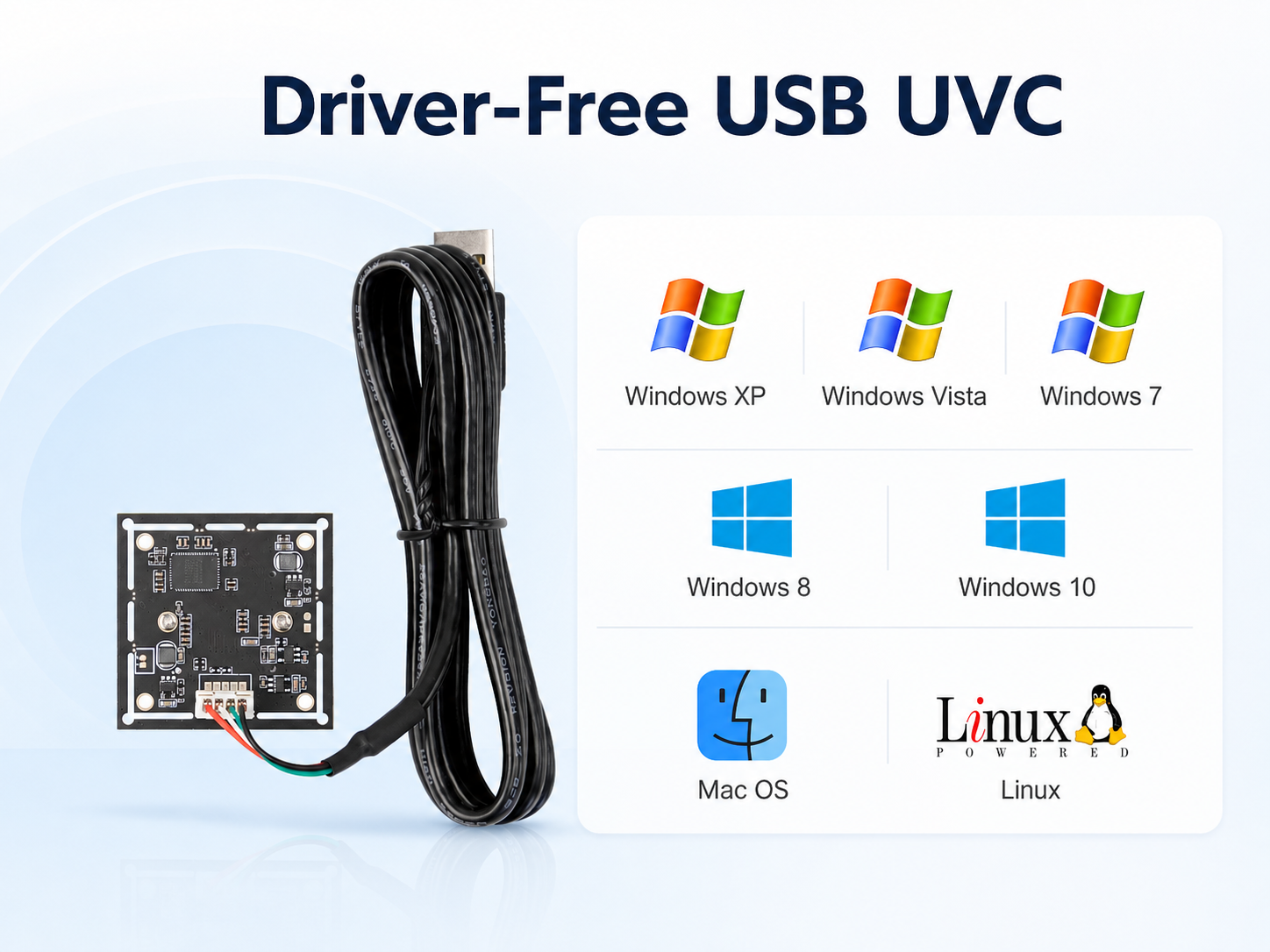

Figure: Compatible Systems

Suitable for AI vision recognition, indoor HD surveillance, video conferencing, professional DIY builds, maker education, and STEM Education, this balanced-FOV camera module gives developers a compact way to add 4K image capture while avoiding the heavy distortion associated with more extreme wide-angle optical designs, while keeping integration simple for developers building repeatable camera workflows.

Selection Guide

Product Name

IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera

IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera

IMX274 4K 8MP 1/2.5" 3.25mm 97° USB UVC Camera

IMX274 4K 8MP 1/2.5" 2.26mm 130° USB UVC Camera

IMX678 4K 8MP 1/1.8" 6mm 73° USB UVC Camera

IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera

Figure

SKU

FIT1043

FIT1044

FIT1045

FIT1046

FIT1047

FIT1048

Configuration

IMX415, 3mm

IMX415, 2.6mm

IMX274, 3.25mm

IMX274, 2.26mm

IMX678, 6mm

IMX678, 4mm

Nominal FOV

95°

120°

97°

130°

73°

95°

Key Advantage

Good value and stable image quality

Wide-area coverage

High frame rate for moving subjects

Ultra-wide coverage

Better low-light performance

Large sensor with a balanced FOV

Recommended Applications

Office and home use

Meeting rooms and classrooms

Industrial inspection and motion capture

Warehouses and large halls

Night monitoring and security

Residential areas and schools

Key Test Findings

Resolution generally met expectations; no obvious distortion

Measured at 117.59°; slight distortion

Resolution generally met expectations; no obvious distortion

Measured at 119.83°; slight edge distortion

Resolution generally met expectations; no obvious distortion

Resolution generally met expectations; no obvious distortion

Add to Cart

• 1/2.8-inch CMOS imx415 8MP image sensor
• 3840×2160 Ultra-HD resolution for 4K image capture
• 95° diagonal field of view for balanced coverage and reduced distortion
• MJPEG output up to 1920 x 1080 (1080P)@60FPS
• USB 2.0 driverless UVC-compliant interface for plug-and-play integration
• Compatible with Windows, Android, Linux, and Wince systems
• Suitable for AI vision recognition, surveillance, conferencing, and DIY projects
• Compact 38mm x 38mm module with 4pin-2.0mm interface

• AI vision recognition
• Indoor HD surveillance
• Video conferencing
• Professional DIY projects
• Development-board camera systems

• Sensor: 1/2.8-Inch CMOS imx415 8MP
• Resolution: 3840×2160
• Pixel Size: 1.45μm * 1.45μm
• Output Format: MJPEG, YUY2

MJPEG

• 3840 x 2160 (4K) @30FPS
• 2560 x 1440@30FPS
• 1920 x 1080 (1080P)@60FPS
• 1600 x 896 @30FPS
• 1280 x 720 (720P) @30FPS
• 1024 x 576@30FPS
• 800 x 600 (WVGA) @30FPS
• 800 x 480@30FPS
• 640 x 480(VGA) @30FPS
• 640 x 360@30FPS
• 424 x 240@30FPS
• 352 x 288 @30FPS

YUV2

• 3840 x 2160 (4K) @1FPS
• 2560 x 1440@1FPS
• 1920 x 1080 (1080P)@5FPS
• 1600 x 896 @10FPS
• 1280 x 720 (720P) @30FPS
• 1024 x 576@30FPS
• 800 x 600 (WVGA) @30FPS
• 800 x 480@30FPS
• 640 x 480(VGA) @30FPS
• 640 x 360@30FPS
• 424 x 240@30FPS
• 352 x 288 @30FPS

• FOV(deg)@INF: Diagonal 95°±5°, Horizontal 88°±3°, Vertical 57°±3°
• Lens: 650nmIR (EFL: 3mm F/no:2.2)
• Shutter Type: Electronic Rolling shutter
• Operating Voltage: USB DC +5V Supply
• Operating Current: 170mA-250mA±5mA
• Operating Temperature: -15℃ ~ 60℃
• Storage Temperature: -20℃ ~ 85℃
• Humidity: 0 ~85%
• Supported OS: Windows, Android, Linux, Wince
• Interface: 4pin-2.0mm
• Module Size: 38mm x 38mm 16.4±0.2mm

• IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera ×1
• 1m USB Cable × 1
