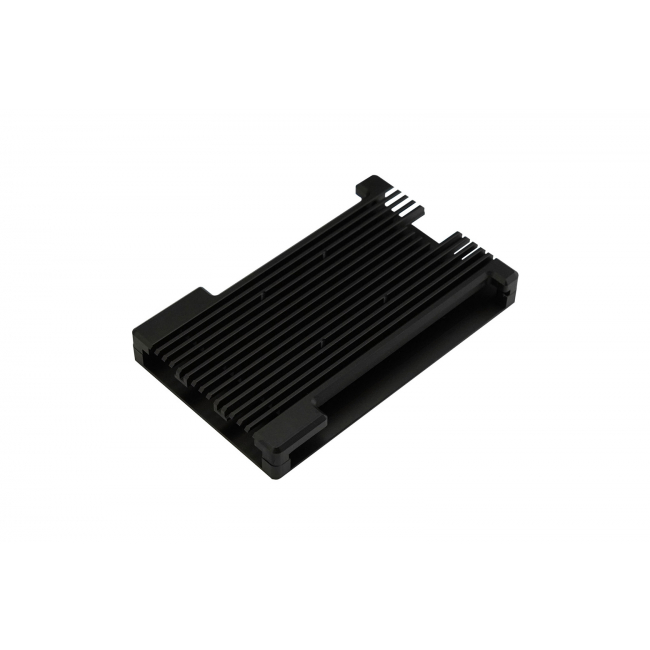

DFRobot - Aluminum Alloy Passive Cooling Case for LattePanda 3 Delta Single Board Computer

The aluminum alloy heat dissipation case is specifically designed for LattePanda 3 Delta Single Board Computer, providing perfect protection for the motherboard while retaining all external interfaces and GPIOs, allowing you to freely build DIY projects. The aluminum alloy shell offers excellent heat conductivity, and it comes with high-quality Shin-tsu X-23-7921-5 CPU thermal grease and M.2 SSD thermal silicone pad for enhanced heat dissipation.

The case is equipped with four mounting holes for external fans, allowing you to install a fan such as a 4010 or 4012 fan (Fan size requirements: 40 x 40mm with a 32±0.3mm hole, M3 screws).

Note:

1. When using this case, you need to remove the pre-installed cooling fan.

2. This case is a passive cooling case and does not include a fan.

3. During use, please avoid direct contact between the skin and the case to prevent burns.

• Passive cooling aluminum alloy case with good heat dissipation
• All ports and GPIO reserved, perfect fit for LattePanda 3 Delta Single Board Computer
• Four fan holes are reserved in the upper cover; fans with a 400mm side length; the center distance of the holes is 32 mm
• With high-quality silicone grease, we provide you with the perfect heat dissipation scheme.
• Reinforced aluminum material, lightweight and durable
• Easy to install
• Ultra-thin design

• Material: Aluminum Alloy
• Size: 125*78*18mm
• Compatible with: LattePanda 3 Delta Single Board Computer

• Aluminum Alloy Passive Cooling Case x1
• M.2 SSD thermal silicone pad (70*18*1mm) x1
• 1g Thermal grease silicone x1
