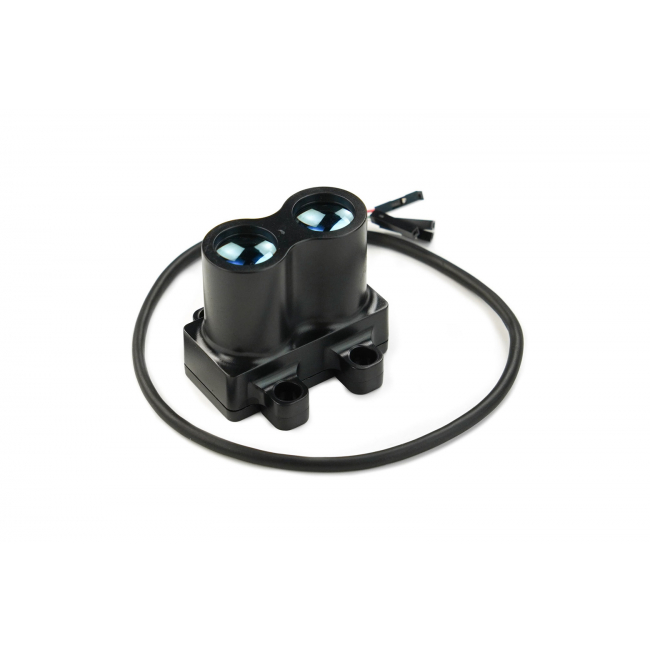

DFRobot - LPB60B IP65 DToF Single-Point Ranging LiDAR Sensor (0.05-60m, UART)

The LPB60B ToF Single-Point Ranging LiDAR Sensor is a single-point laser radar based on the DToF principle. Capable of working stably under strong outdoor lighting, it ensures high stability and accuracy of distance measurement, with a range of up to 60m indoors and outdoors.

With an adjustable measurement frequency of up to 2000Hz and an accuracy of ±5cm, it can be applied in various high-speed scenarios. It has UART output and can be used with an Arduino IO expansion board.

Suitable for applications such as altitude hold for drones, collision avoidance for vehicles, intelligent transportation, and IoT security, it also comes with protection measures against reverse connection, overvoltage, and current limitation, and has IP65 protection and certification with CE, FCC, ROHS, and FDA.

DToF Technology principle

IP65 Protection Level

Dimensional drawing of LPB60B ToF Single-Point Ranging LiDAR Sensor

• Measurement range for both indoor and outdoor is up to 60m
• High accuracy, with a full range of ±5cm
• High measurement frequency, adjustable from 1 to 2000Hz
• Protection measures against reverse connection, overvoltage, and current limitation
• Certified with CE, FCC, ROHS, and FDA

• Gate detection
• Drones follow up
• Outdoor parking space inspection
• High-speed rail inbound inspection
• Level granary testing
• Vehicle flow detection

• Pinout: Red - VCC, Green - RX, White - TX, Black - GND
• Measurement Range:
         0.05~60m (90% reflectivity indoors and outdoors)
         0.05~24m (10% reflectivity indoors and outdoors)
• Measurement Accuracy: ±5cm
• Operating Voltage: 5V
• Power Consumption:
• Communication Interface: UART
• Wavelength: 905nm
• Resolution: 1.5cm
• Measurement Frequency: Adjustable from 1 to 2000Hz (default is 100Hz)
• Protection Level: IP65
• Ambient Light Immunity: 100klux
• Laser Emission Angle: 0.17°
• Reception Field of View: 2.2°
• Operating Temperature: -40°C to 85°C
• Weight: 43g

• LPB60B DToF Single-Point Ranging LiDAR Sensor (0.05-60m) x1
