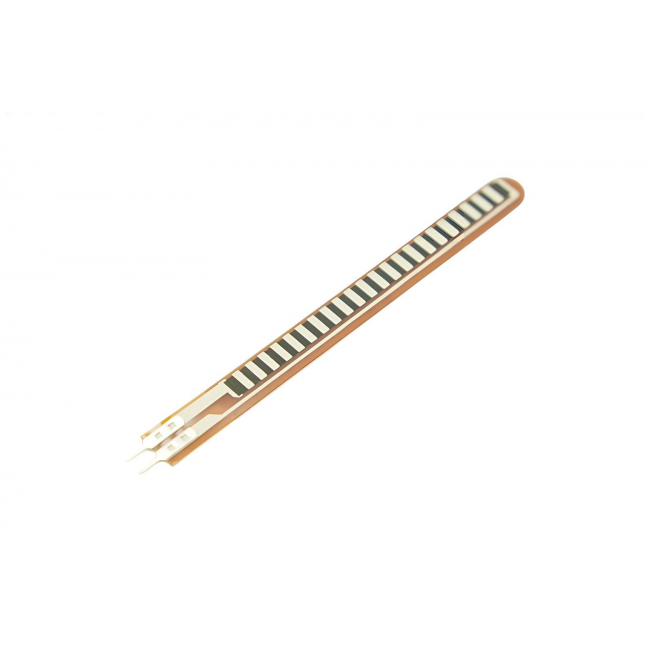

DFRobot - Flex Sensor 2.2" Bend Resistor (10KΩ-125KΩ Range)
£11.90
£9.92
A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It's so bad!
SKU
DF-SEN0086
Introduction
A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It's so bad!
The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).
Connector is 0.1" spaced and bread board friendly. Check datasheet for full specifications.
Note: The latest version of this product varies on resistance. Please be careful when bending the wiring side of the sensor and note the change on the resistance.
Specification
- Resistance Value: 10KΩ~125KΩ
- Life Cycle: >1 million
- Dimension: 77mm * 6mm * 0.43mm （L*W*H）(3x0.2x0.02'')
- Temperature Range: -35°C to +80°C
Shipping List
- Flex sensor 2.2" x1
