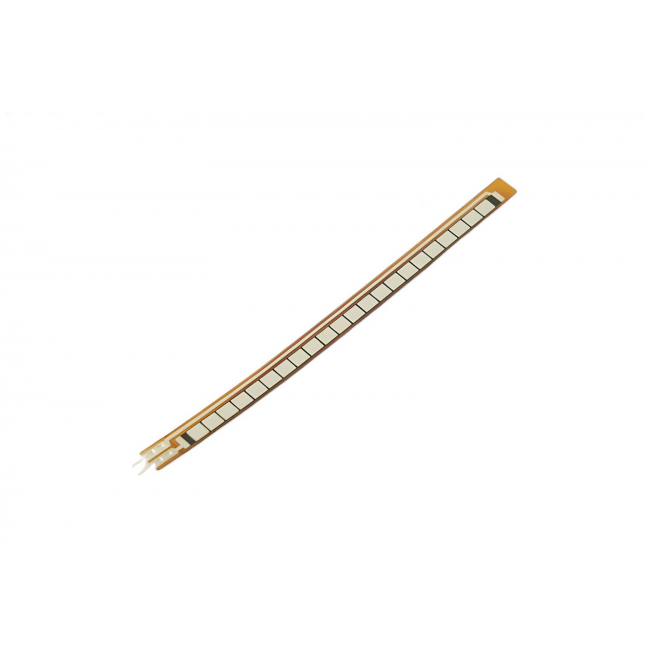

DFRobot - Flex Sensor 4.5" Bend Resistor (60KΩ-110KΩ Range)
£20.29
£16.91
A simple flex sensor 4.5" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It's so bad!
SKU
DF-SEN0064
Introduction
A simple flex sensor 4.5" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It's so bad!
The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).
Connector is 0.1" spaced and bread board friendly. Check datasheet for full specifications.
Specification
- Flat Resistance: 10K Ohms
- Resistance Tolerance: ±30%
- Bend Resistance Range: 60K to 110K Ohms
- Power Rating: 0.50 Watts continuous. 1 Watt Peak
- Life Cycle: >1 million
- Height: 0.43mm (0.017")
- Temperature Range: -35°C to +80°C
Documents
- FLEX SENSOR DATA SHEET
| Manufacturer | DFRobot |
|---|
